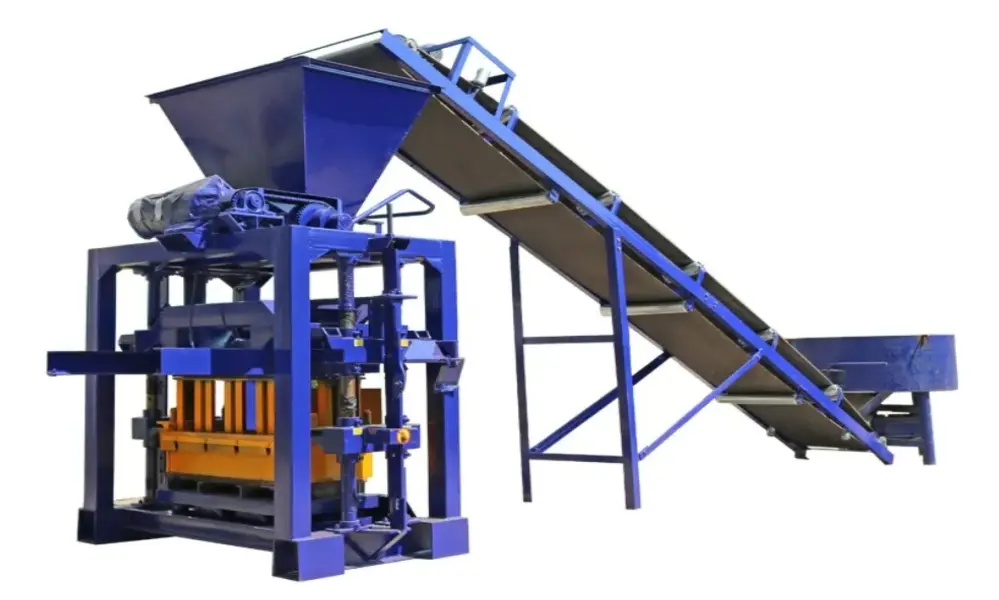

QT4-35 concrete brick making machine
This is concrete block making machine,occupies small space, it is very suitable for small factory or family investment.
Components :
| No. | Items | Function | Pcs |
|---|---|---|---|
| 1 | QT4-35 concrete brick making machine | To make the hollow Brick, solid brick and pavement brick | 1 |
| 2 | 6m Belt Conveyor | Transport the raw materials from the mixer to the Brick making machine | 1 |
| 3 | 350 Pan Mixer | To mix the materials: water, sand, aggregate and cement | 1 |
| 4 | Hollow Brick Mould | To make different size and shape bricks by changing moulds | 1 |
| 5 | Manual Cart | Transport the Bricks from the Brick machine to the yard | 2 |
| 6 | Spare Parts Box | Put the Spare Parts (Belt, Bolts, Screws and wires) into it | 1 |
Specification:
Overall Dimension | 1500*1660*2460mm |
Rated Pressure | 16Mpa |
Main Vibration Form | Platform Vibration |
Virbration frequency | 2800r/min |
Pallet Size | 850*450mm |
Mould cycle | 35s |
| motor power | 8.6kw |
Production capacity :
| block image | size | forming time | pcs/mold | pcs/hour |
| 400*200*200mm |  | 35- 38s | 4 | 360 |
| 400*250*200mm | | 35- 38s | 3 | 270 |
| 240*115*53mm |  | 35- 38s | 18 | 1500 |
