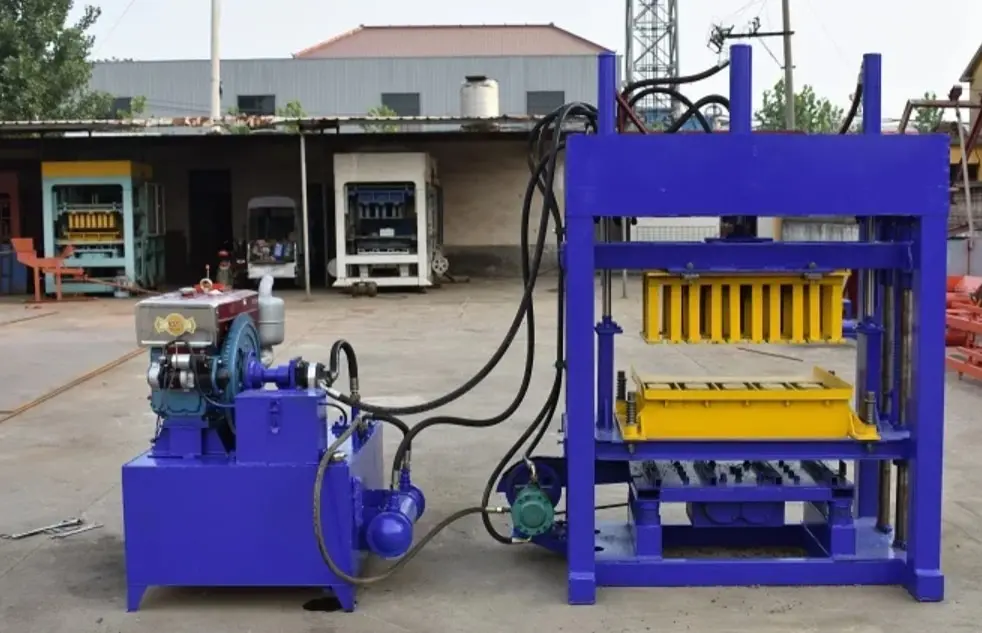

QT4-30 Diesel Powered hydraulic brick making machine
It simple structure, easy to operate, It can make different kinds of blocks bricks by changing different mold ,such as hollow block, solid block, paver brick, curbstone brick. Low investment, high efficiency .
A diesel powered block machine for remote construction projects ,is the ideal solution for manufacturing concrete blocks in areas where electricity is unavailable or unstable. Powered by a reliable diesel engine and equipped with a hydraulic system, the machine delivers strong vibration and high molding pressure to produce durable hollow blocks, solid bricks, pavers, and curbstones with consistent quality.

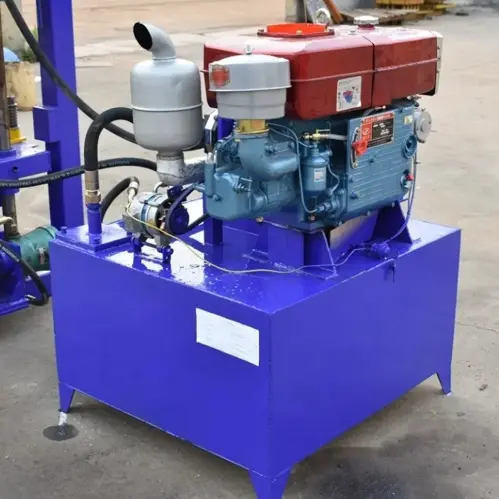

Hydraulic press system with 15hp diesel motor , this hydraulic brick making machine is very good choice for client in lack of electrical power place. Compared with electric models, a diesel powered block machine offers greater mobility and flexibility, making it suitable for rural construction sites, remote infrastructure projects, and small block factories. Its compact design, low maintenance requirements, and dependable performance help customers reduce operating costs while maintaining efficient block production under challenging working conditions.
Technical data:
| model | QT4-30 |
| motor power | diesel engine 15hp |
| forming cycle | 30s |
| weight | 1500kg |
| pallet size | 850x450x40mm |
| host machine size | 1600x1200x2150mm |
Production capacity :
block type | Brick Size | Qty/mould | Cycle molding | Per hour |
Hollow brick | 400*200*200mm | 4 pcs | 26-30s | 400-500pcs |
Hollow brick | 400*150*200mm | 5 pcs | 24-28s | 500-600pcs |
Solid brick | 225*112.5*60mm | 9 pcs | 20-24s | 900-1080pcs |

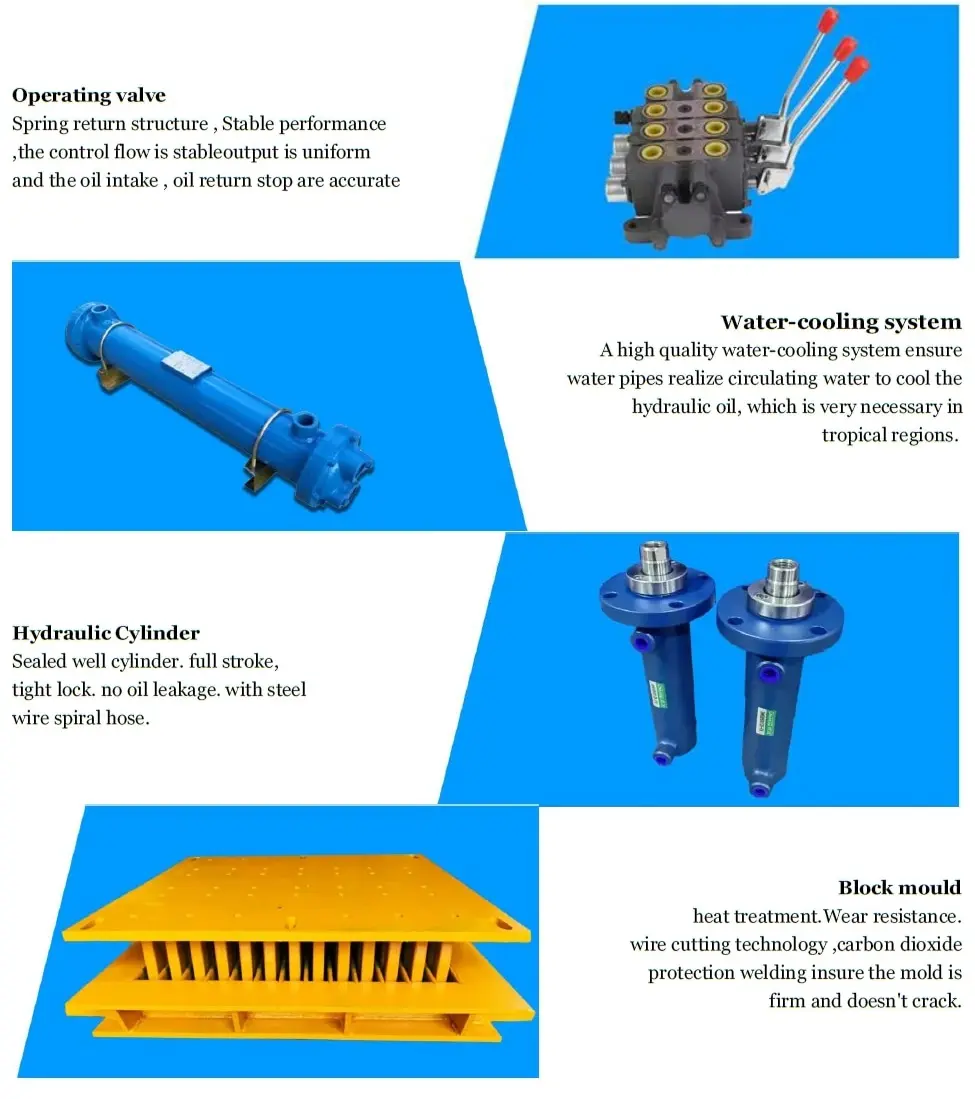

Parts detail :
