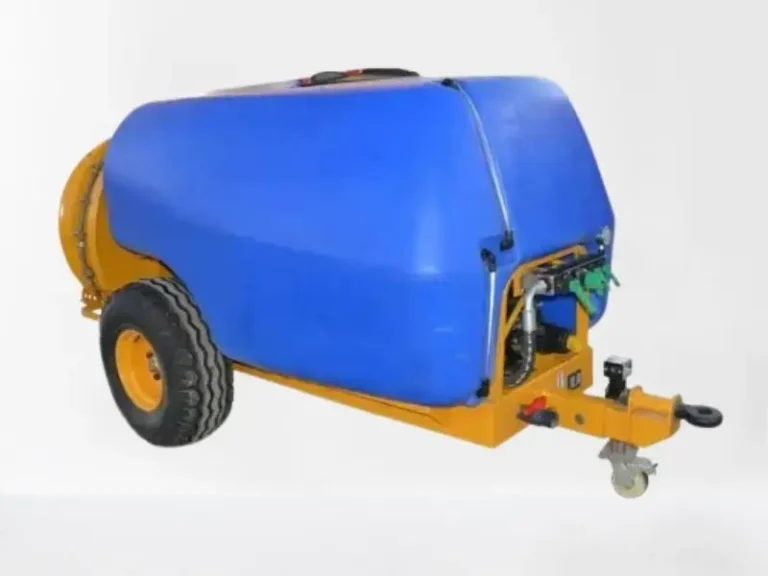

3WFQ Air Blast Sprayer | Tractor-Mounted Orchard Sprayer
This 3WFQ Air Blast sprayer has characteristics of evenly spraying, high production efficiency, strong penetrating power, large liquid coverrage, and good attachment. It is tractor towed sprayer, much capacity than tractor mounted air blast sprayer, only need small labor intensity and solves the problem of difficulty in using the users fruit trees. The spray range is wide, and each angle of 360 degrees can be closed. Wind power is big enough to make the leaves on the front and back to be sprayed evenly, and the operation efficiency is high.

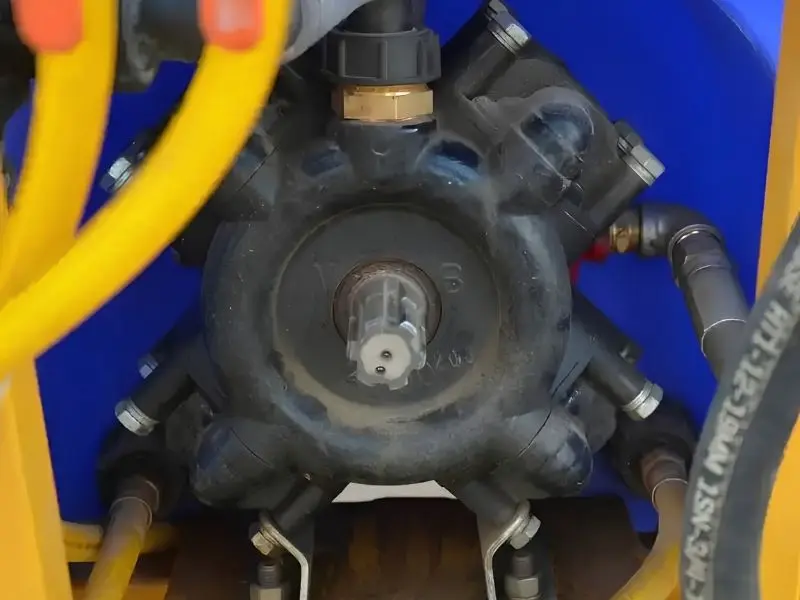

The 3WFQ series tractor-mounted air blast sprayer delivers reliable, high-volume crop protection with a 800–2000L tank capacity and a horizontal spray range of 20–22 meters. Driven by a 50HP-matched diaphragm pump (80–140L/min flow).
Specification:
| Model | Tank capacity (L) | Horizontal range (M) | Working pressure | Pump | Tractor power(HP) | Rated flow (L/min) |
| 3WFQ-800 | 800 | 20 | 0.5-1.0mpa | Diaphragm pump | ≥50 | 80-100 |
| 3WFQ-1000 | 1000 | 22 | 0.5-1.0mpa | Diaphragm pump | ≥50 | 80-100 |
| 3WFQ-1200 | 1200 | 22 | 0.8-1.0mpa | Diaphragm pump | ≥50 | 80-100 |
| 3WFQ-1500 | 1500 | 22 | 0.8-1.0mpa | Diaphragm pump | ≥50 | 80-100 |
| 3WFQ-2000 | 2000 | 22 | 0.8-1.0mpa | Diaphragm pump | ≥50 | 100-140 |
