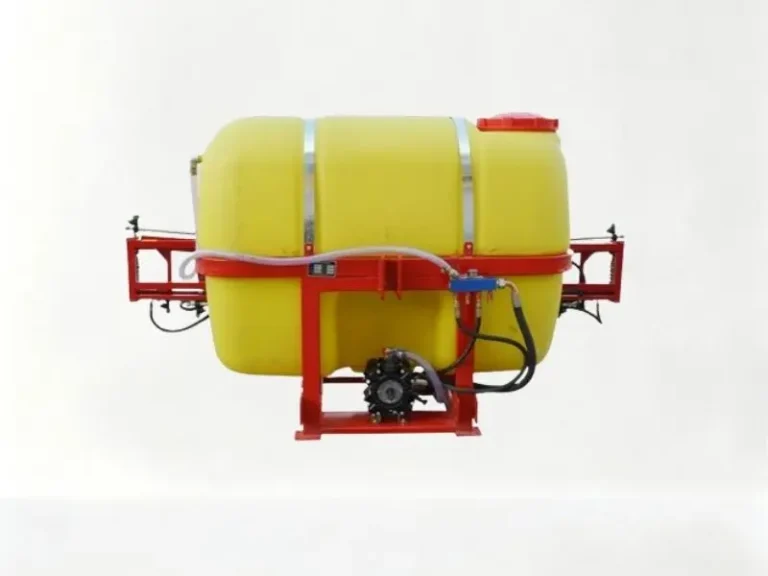

Tractor Mounted Boom Sprayer with Hydraulic Folding Boom and Diaphragm Pump
This 3WPX serial Tractor Mounted boom sprayer with the characteristics of large spraying width,
great capacity,and high efficiency,the tractor mounted boom sprayer is the ideal machine for medium and large tractors. It has high working pressure,and large flow,and is easy to be operated and maintained.This sprayer is greatly used to prevent and cure plant diseases and insect pests in gardens or on the fields of Soybean,Wheat,Corn,Rice,Cotton,or Potatoes.
A Boom Sprayer usually has multiple spray nozzles spread out along arms (booms), pointed directly down. Boom Sprayers can go on the back of your tractor,as a tank and boom combination attached to the 3 point linkage of your tractor.

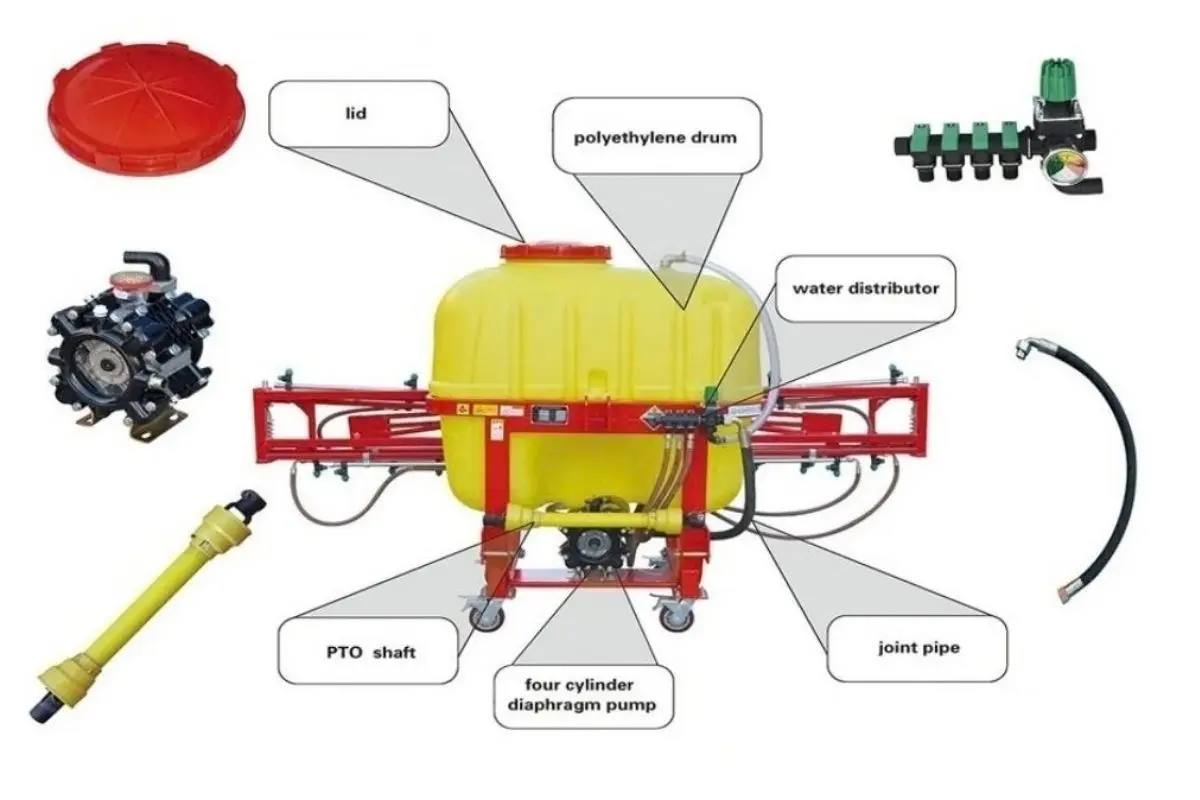

Features:

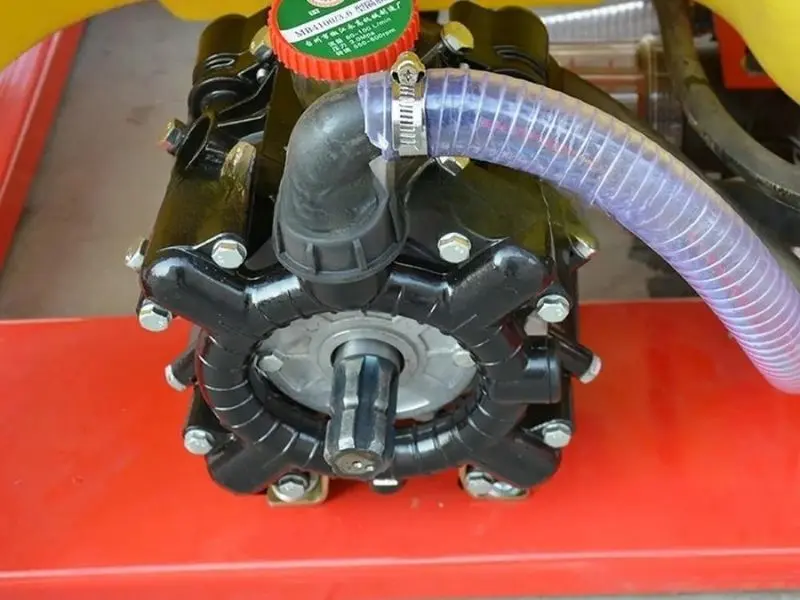

- Four-cylinder diaphragm pump
- Polyethylene tank and steel frame

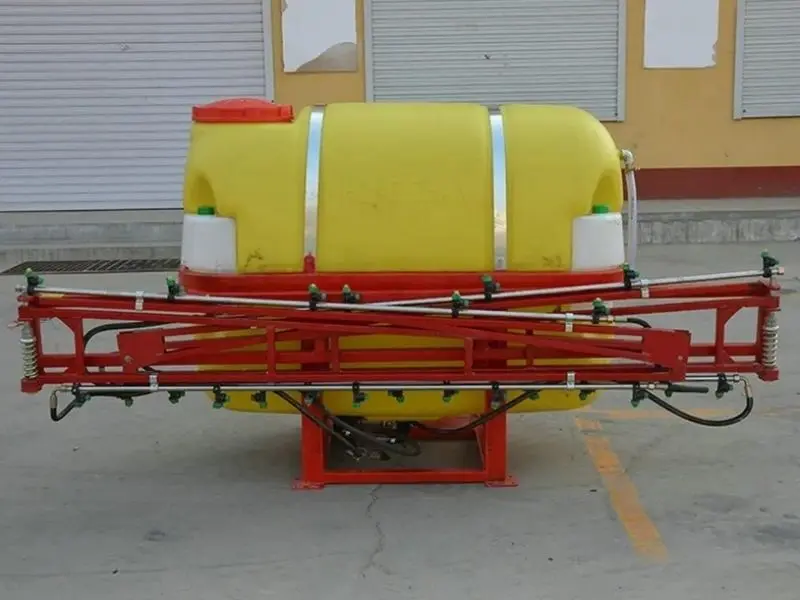

- Hydraulic folding boom
Specification:

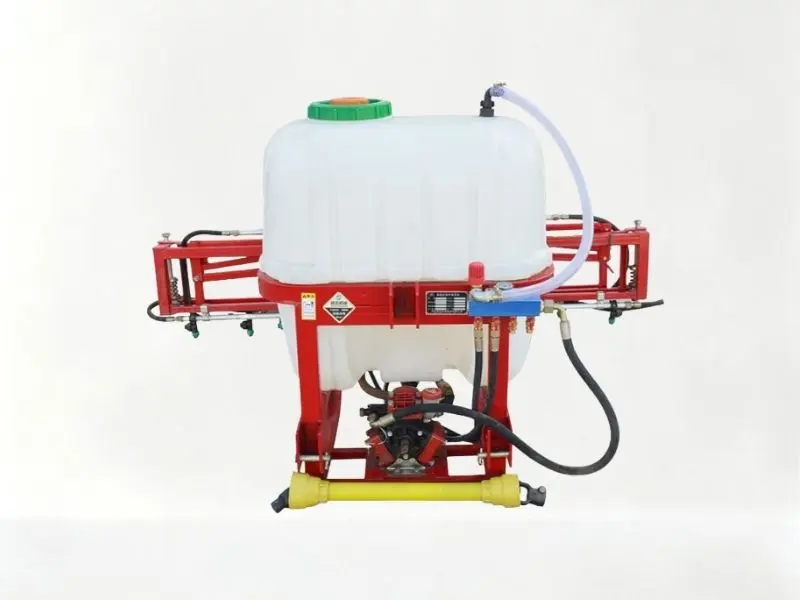

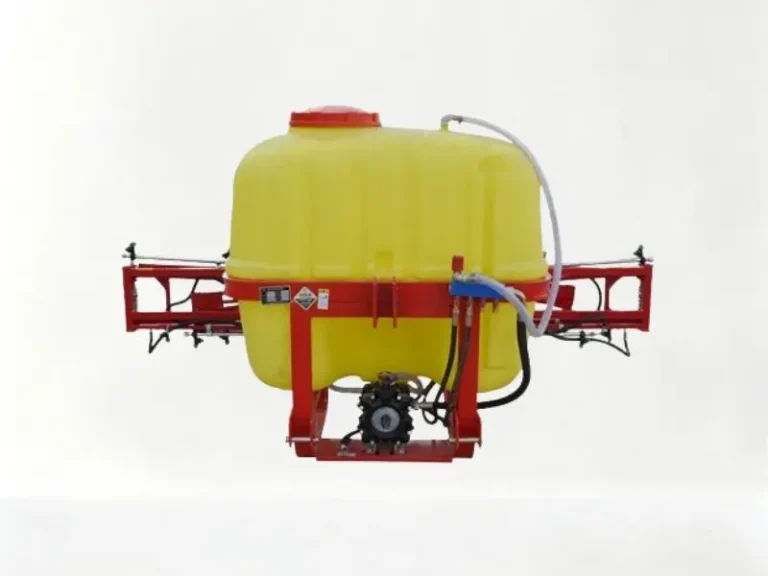

| Model | 3WPX-400-8 | 3WPX-500-12 | 3WPX-600-12 | 3WPX-800-12 | 3WPX-1000-12 |
| Tank capacity(L) | 400 | 500 | 600 | 800 | 1000 |
| Dimension(mm) | 1880*1140*1240 | 2700*1100*1300 | 2700*1100*1440 | 2700*1140*1500 | 2700*1000*1530 |
| Horizontal range(M) | 8 | 12 | 12 | 12 | 12 |
| Working pressure | 0.8-1.0mpa | ||||
| Pump | Diaphragm pump | ||||
| Matched Power(HP) | 40 | 50 | 60 | ||
| Rated Flow(L/min) | 60-80 | 80-100 | |||
Send us your crop, plot size and tractor model, and we will recommend the tank capacity, boom width and pump flow that fit your farm.
