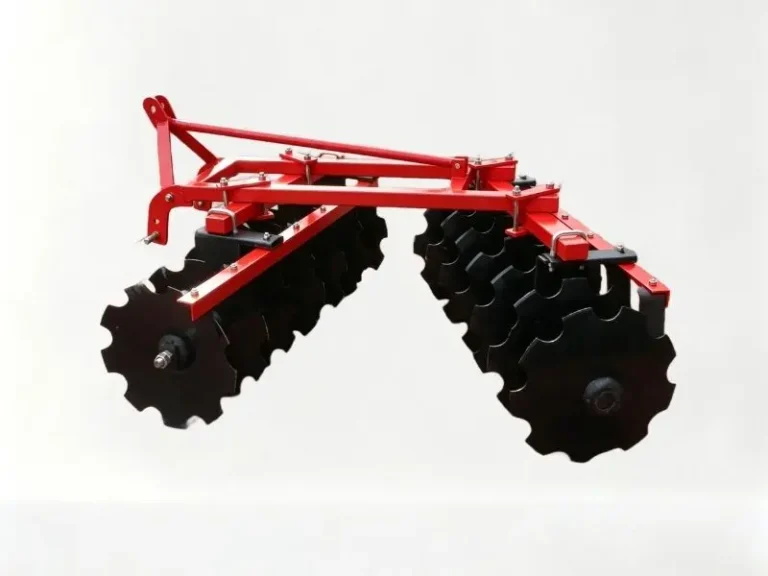

1BQDX Offset Light Disc Harrow

1BQDX Offset Light Disc Harrow

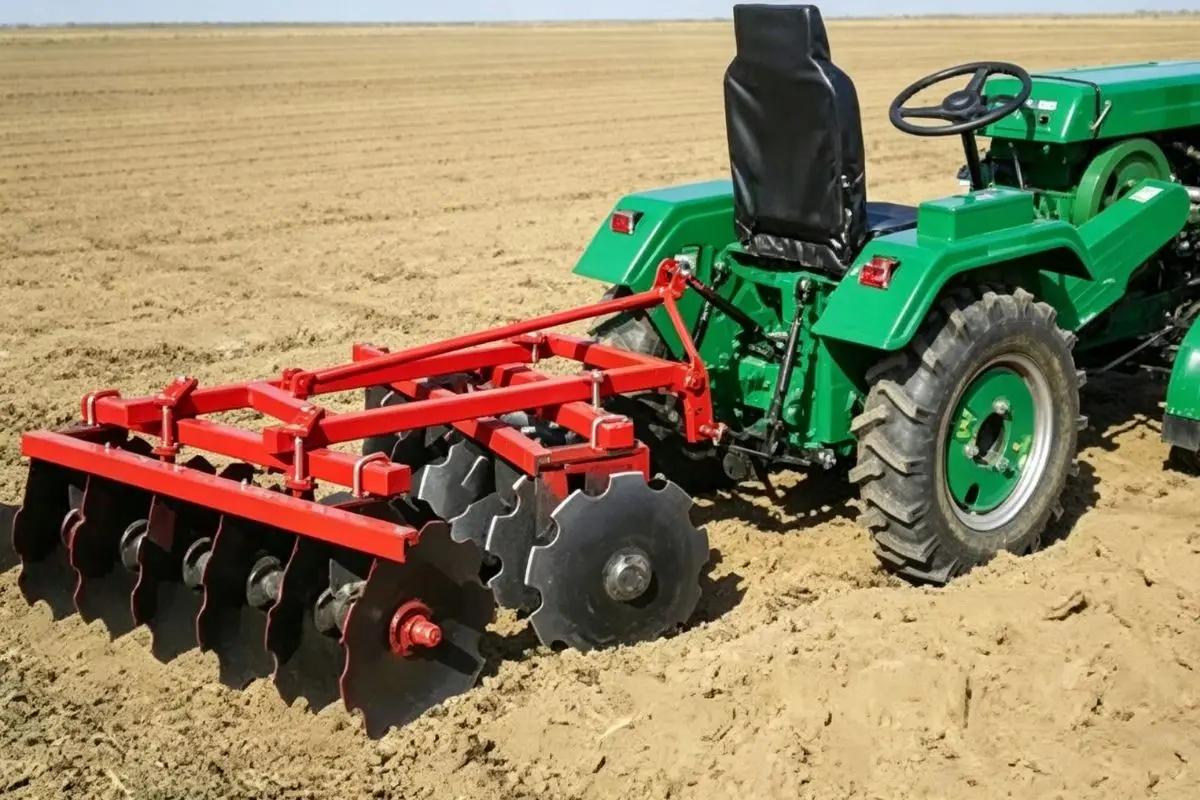

Offset light disc harrow on 460mm notched disc blades, matched to small tractors and small plots. One pass cuts, turns and breaks the soil for a level, clod-free seedbed.

1BQDX Offset Light Disc Harrow with 460mm Notched Discs

1BQX offset light duty disc harrow mainly applicable for breaking up the clods of farmland and light
soil after cultivated with disc plow and loosening soil and mixing soil and fertilizer before
sowing. With reasonable structure, strong ability to rake, durable, easy to use and maintain, etc.

Features:

Offset Gang Design for Better Clod Breaking and Soil Turning
460mm Notched Disc Blades
Sized for Small Tractors and Small Plots

Specification :

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.1
Number of disc	12	14	16	18	20	22
Size of disc(mm)	460×3	460×3	460×3	460×3	460×3	460×3
Working width(mm)	1100	1300	1500	1700	1900	2100
Working depth(mm)	50-150	50-150	50-150	50-150	50-150	50-150
Weight (kg)	200	220	256	270	310	326
Matched tractor (hp)	15-20	15-20	20-35	30-50	50-60	50-60

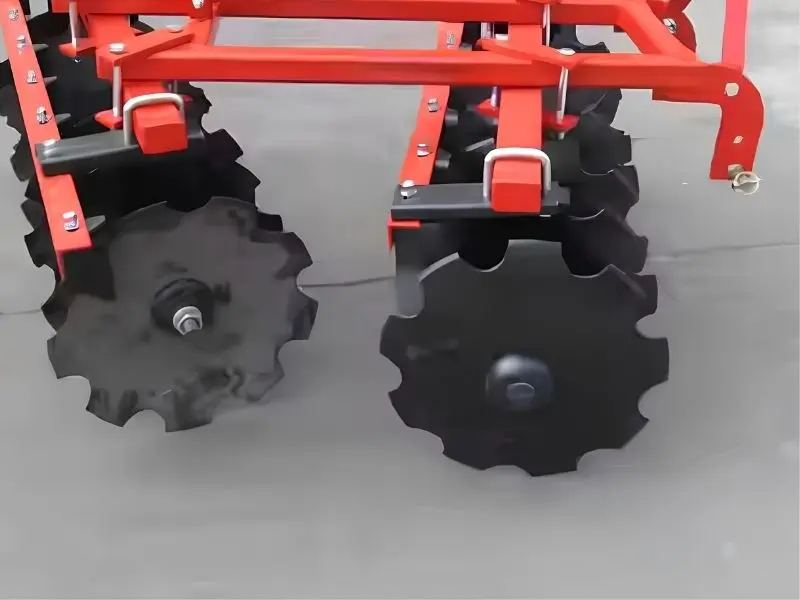

Heat-Treated Notched Disc Blades

The blades are made in 460 mm notched profiles and heat treated for high, even hardness, so the cutting edge wears away slowly instead of rolling over.

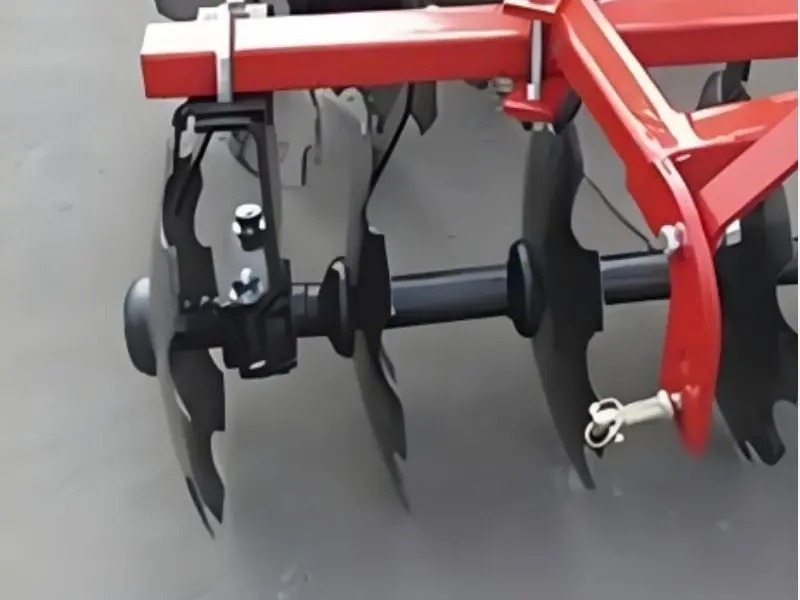

sealed gang bearings

smooth rotation, excellent durability, and reliable performance with minimal maintenance. Each disc gang turns on sealed bearing housings that keep grit, soil and moisture out and hold the grease in. Less bearing wear.

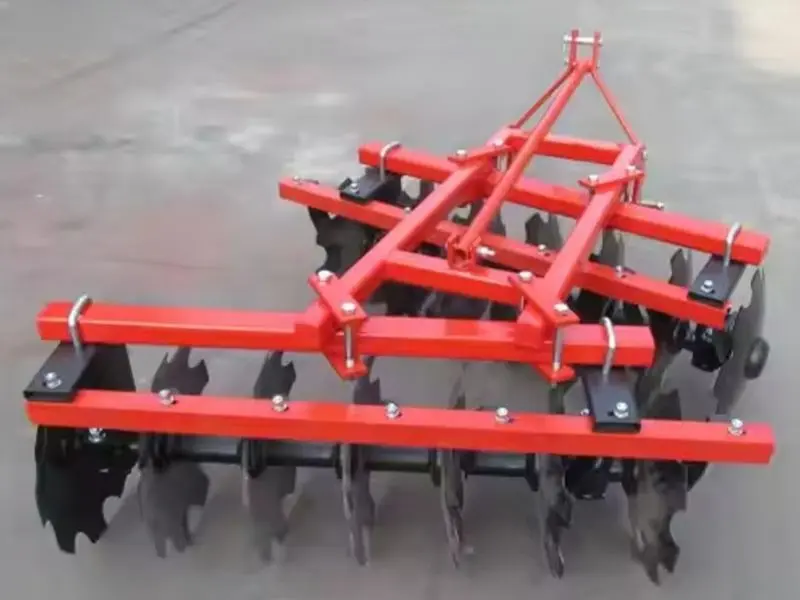

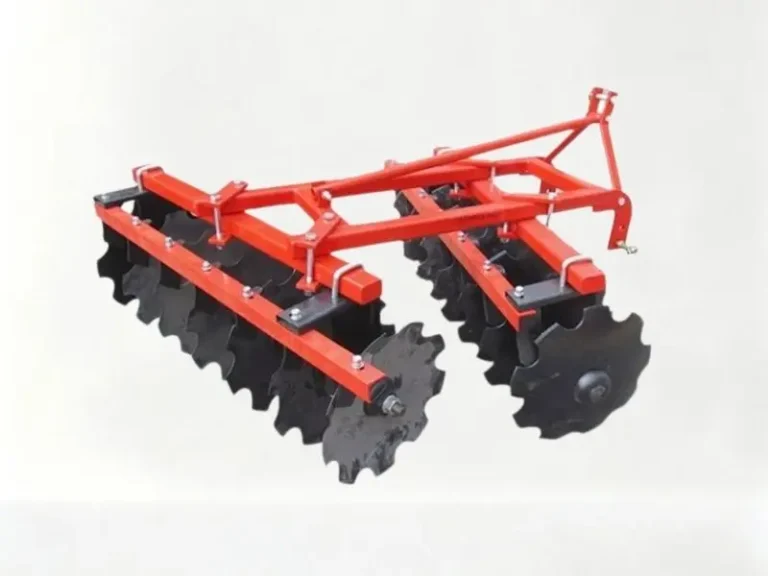

Offset Gang Design

The front and rear disc gangs are set at opposing offset angles, so the soil is cut twice in a single pass. The result is a finer, more even tilth, better stubble burial and a leveled surface, with fewer passes over the field for the same seedbed.

Frequently Asked Questions

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
