QT10-15 Automatic Concrete Block Making Machine for High-Volume Production .
It is equipped with PLC control system. And all the mould can be made by customers’ drawings. The key parts are famous brand electrical parts, to guarantee good quality. So if you need a high capacity and fully automatic block making machine, the model QT10-15 is the best choice for your block production project.

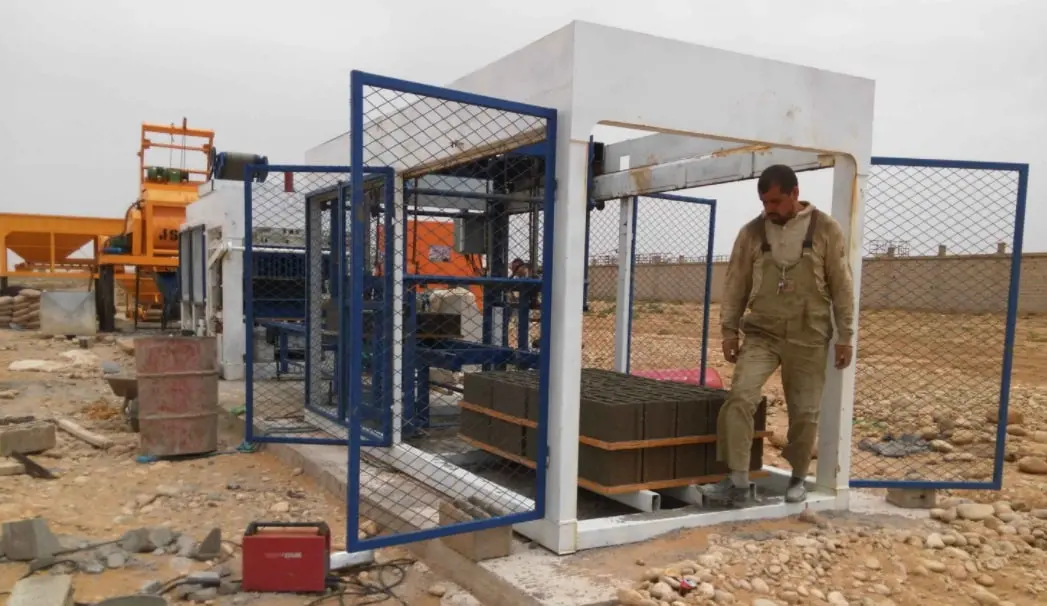

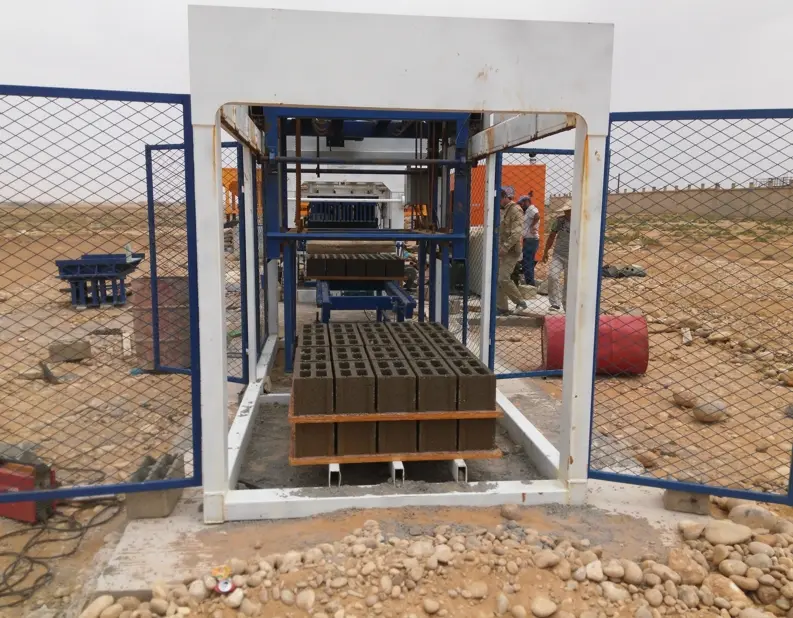

As a complete concrete block production line, the QT10-15 block making machine can be integrated with a batching machine, JS concrete mixer, belt conveyor, pallet feeder, and block stacker to create a fully automated manufacturing system. Its reliable performance has been proven in overseas markets, including our QT10-15 Hollow Block Production Line in Algeria, where the equipment delivers efficient production and high-quality concrete blocks under real operating conditions.
By changing molds,many kinds of blocks can be made as follows:hollow blocks,holland bricks. curbstone , Standard bricks, Cellular bricks, Grass brick, Decoration bricks, Pavement bricks .

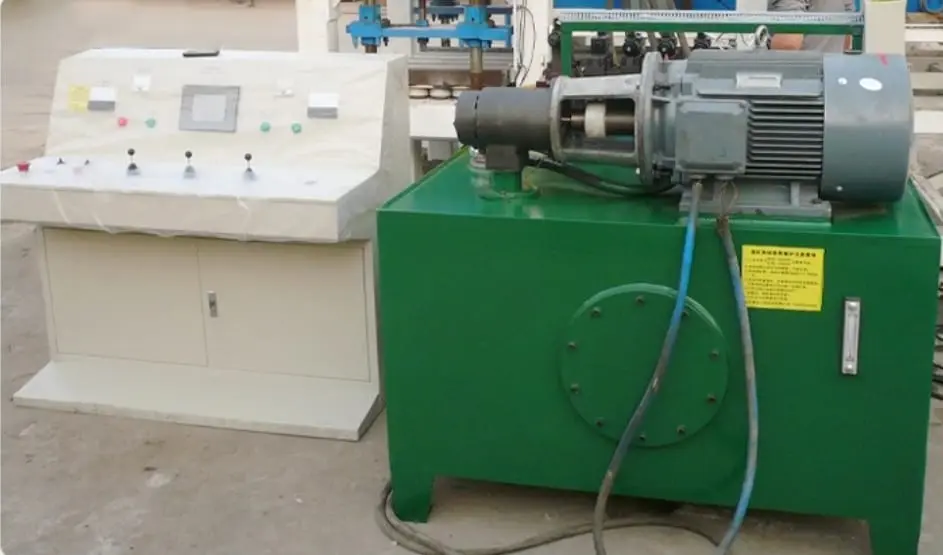

Automatic operation with PLC controller and hydraulic system .
Components of QT10-15 Automatic Concrete Block Making Machine :
| No. | Components | Pcs |
| 1 | B500*8 Belt Conveyor (For Raw Materials) | 1 Set |
| 2 | JS-750 Twin-shaft Concrete Mixer | 1 Set |
| 3 | QTJ10-15 Block Making Machine | 1 Set |
| 4 | PLC Control System | 1 Set |
| 5 | Spare Parts/Tools | 1 Set |
| 6 | Manual Block-transportingCarts/Push-carts | 3 Sets |
| 7 | Block Stacker Machine | 1 Set |
Specification:
| Overall Dimension | 7564×2060×2950 mm |
| Main Vibration Form | Platform |
| Forming Time | 15-20s |
| Motor power | 54KW |
| Weight | 15T |
| Pallet Size | 1150×900×30 mm |
| Mixer Type | JS750 |
| Voltage | 380V/440V,50/60hz |
Production capacity :
| type | size | pcs/mold | molding time | pcs/hr | pcs/day (8hours) |
| hollow | 400*150*200mm | 14pcs | 15 seconds | 3,360pcs | 26,880pcs |
| hollow | 400*200*200mm | 10pcs | 15 seconds | 2,400pcs | 19,200pcs |
| porous | 240*115*90mm | 24pcs | 15 seconds | 5,760pcs | 46,080pcs |
| solid | 240*115*53mm | 54pcs | 18 seconds | 10,800pcs | 86,400pcs |
| paving | 200*100*60mm | 35pcs | 18 seconds | 7,000pcs | 56,000pcs |
| paving | 200*160*60mm | 24pcs | 18 seconds | 4,800pcs | 38,400pcs |
