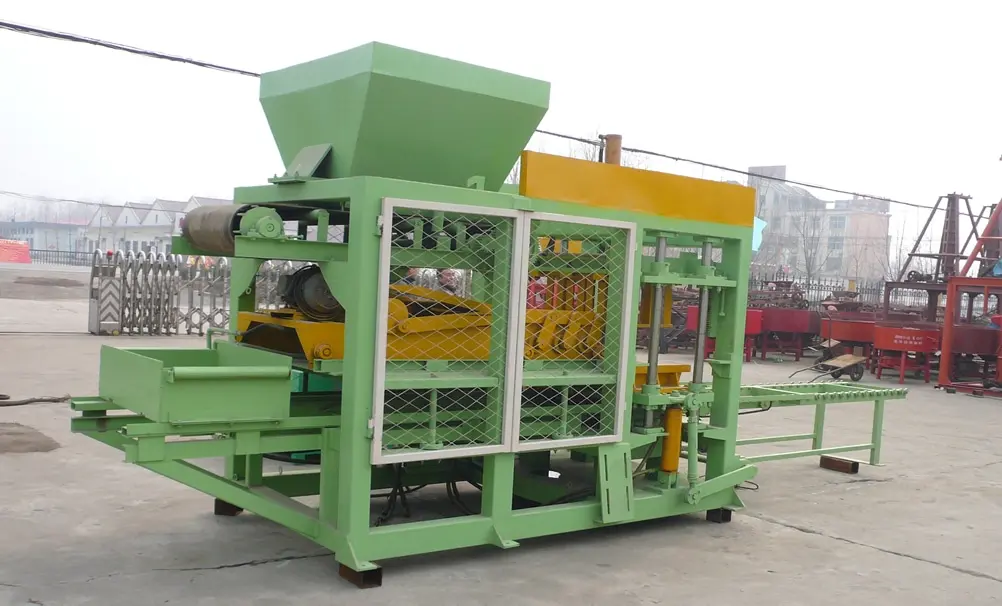

QT4-15 Automatic cement brick making machine
This QT4-15 automatci cement brick making machine is very hot-selling model around world . Easy for operation and maintenance, applied for different types concrete block, solid/hollow/cellular masonry products . It is an ideal solution for entrepreneurs and small to medium-sized block manufacturers seeking reliable and cost-effective block production equipment.
Advantage:
- Fully automatic and hydraulic,large production capacity.

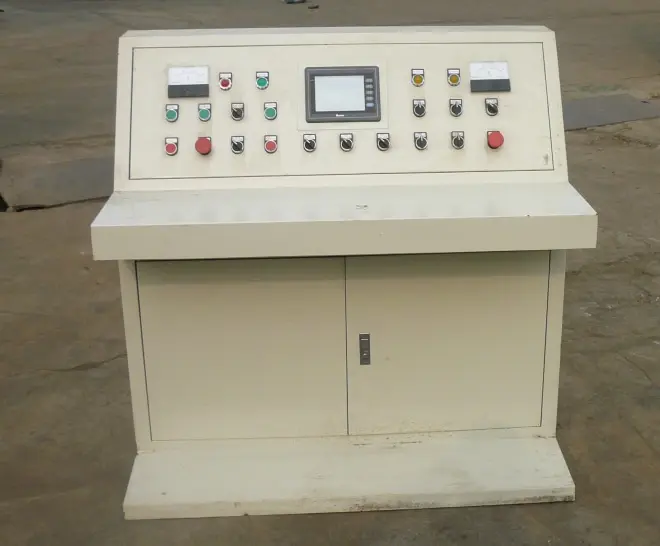

- Siemens electric PLC control system and motor.

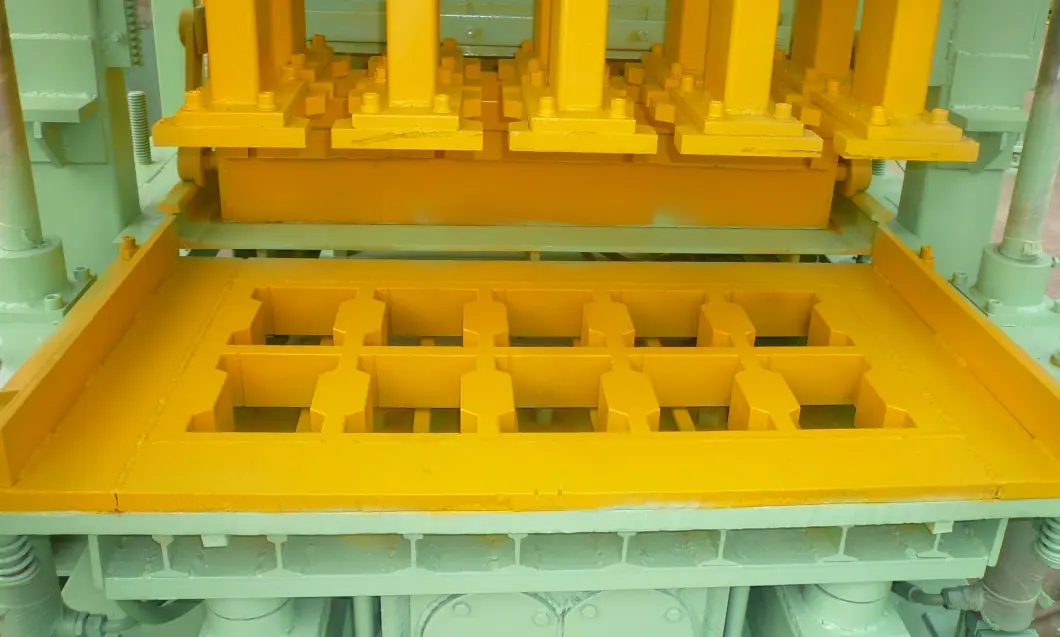

- Heat treatmet on brick mold and main parts, with stability performance and reliability in the long-term running .
- Can produce hollow brick ,solid brick, paverbricks by changing different molds, and honeycomb type block, roadblock and slope block.
Specification:
| Model | QT4-15 block making machine |
| host machine size | 3880x1760x2580mm |
| weight | 5000kg |
| motor power | 25kw |
| pallet size | 880*550*25mm |
| forming time | 15-20s |
Production Capacity :
brick type | size(mm) | (pcs/mold) | Cycle forming (s) | (pcs/shift) |
Porous brick | 240*100*60 | 16 | 16-20 | 25600 |
Solid brick | 240*115*53 | 28 | 13-15 | 53760 |
Hollow brick | 390*190*190 | 4 | 15-20 | 7680 |
