Agricultural Tillage Concave Disc Blade For Disc Harrow & Plough

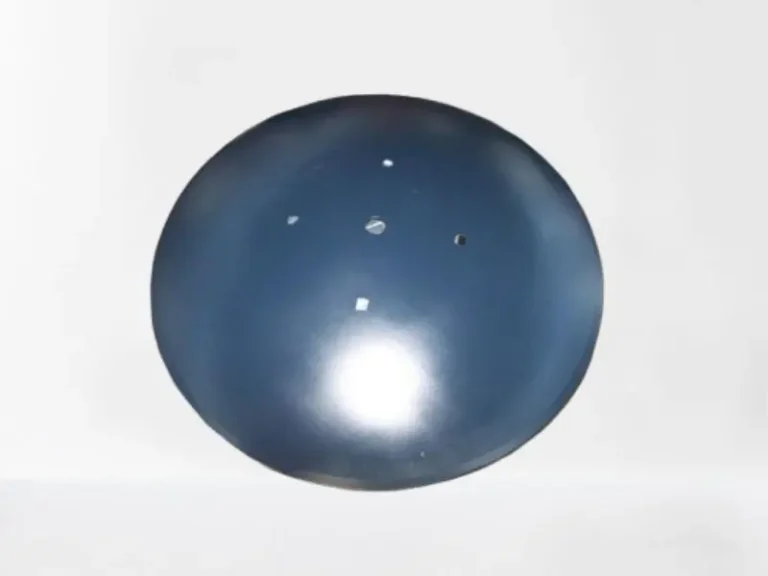

concave disc blade

concave disc blades are designed for extreme durability and superior cutting performance in demanding tillage operations. Specifically designed for both disc plow and disc harrow.

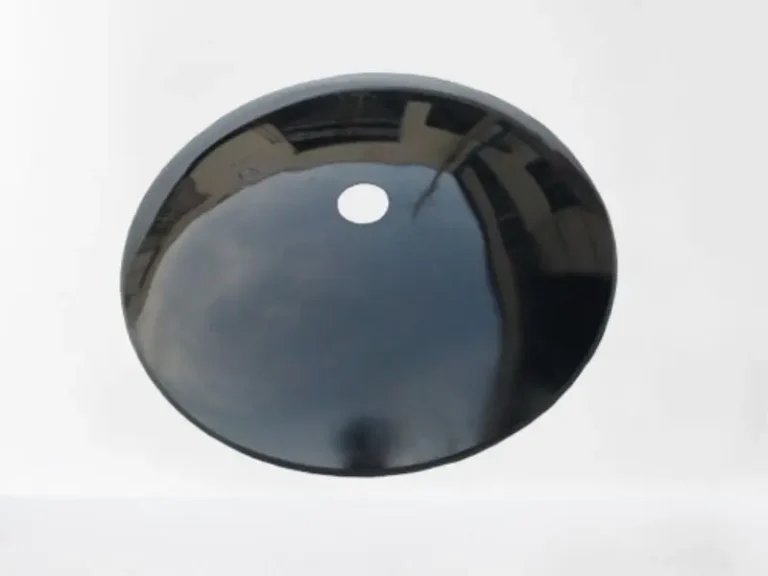

Concave Disc Blade for Disc Harrow & Plough – Agricultural Tillage Disc Blade

This disc blade is with 65Mn and Boron Steel. 65Mn steel disc blade hardness is HRC40-44 and Boron Steel disc blades hardness is 48-52HRC. Designed to provide deep penetration and efficient soil cutting, this disc blade enhances tillage performance, making it ideal for use in a variety of soils, including clay, rocky, and dry farmland. It fits a wide range of agricultural machines and offers excellent compatibility with most popular models of disc ploughs and disc harrows.

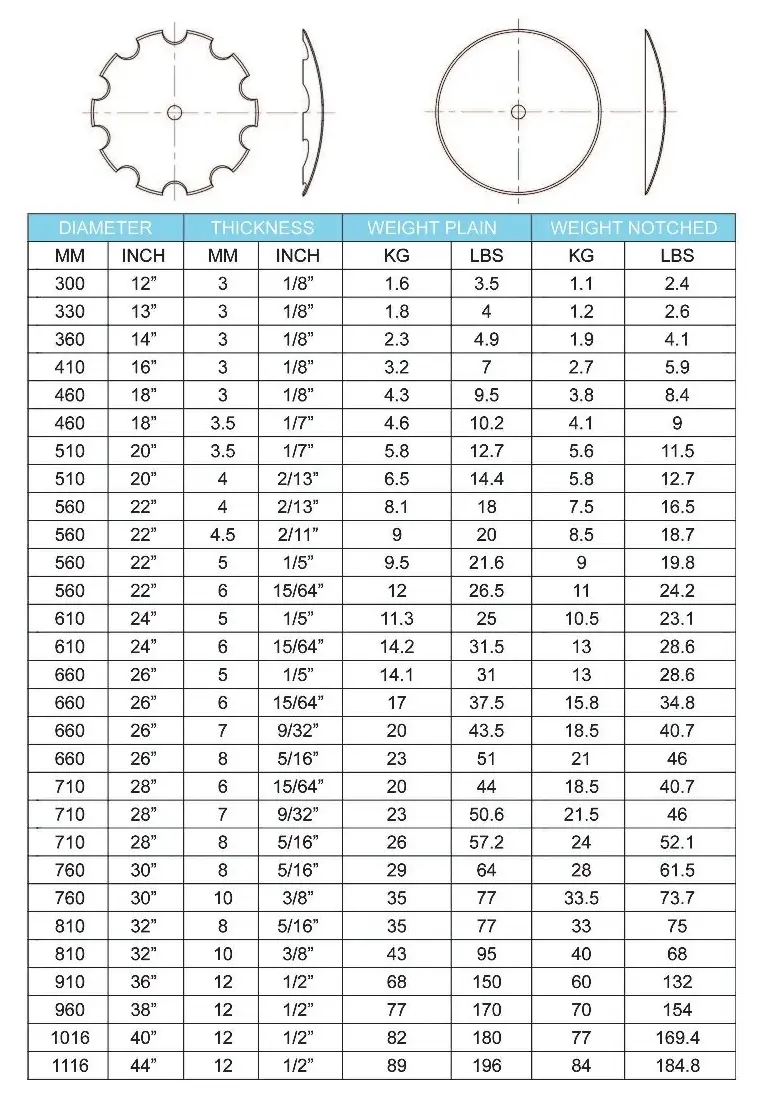

Specification:

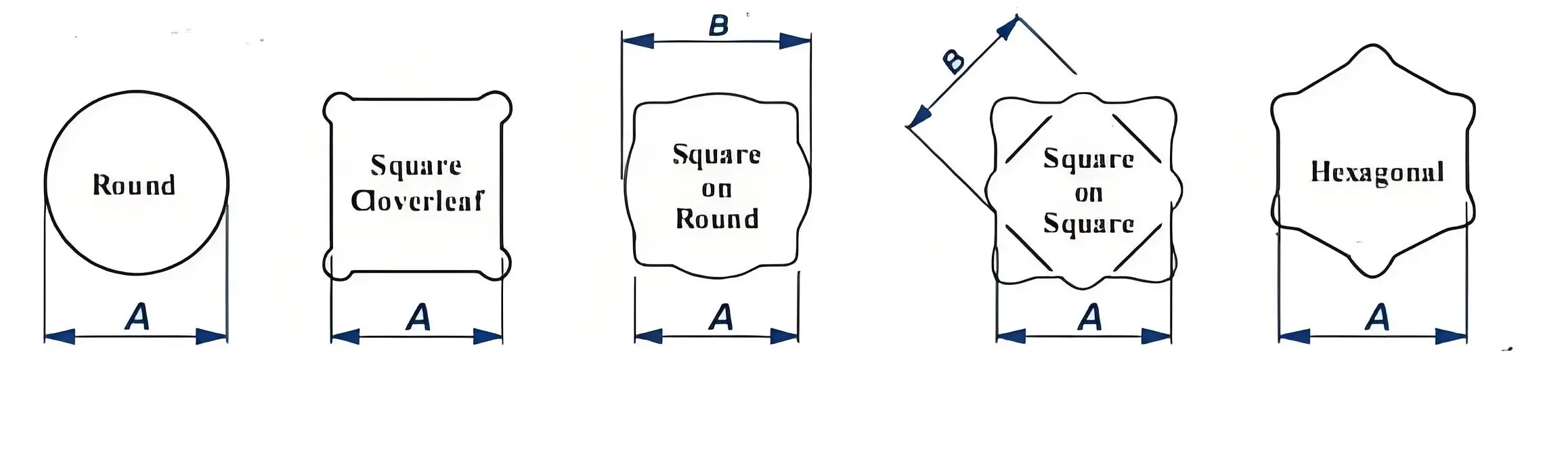

Disc Blade Center Hole Options: 5 Bore Profiles

Five bore profiles — Round, Square Cloverleaf, Square on Round, Square on Square, Hexagonal — with A and B dimensions marked on the drawing.

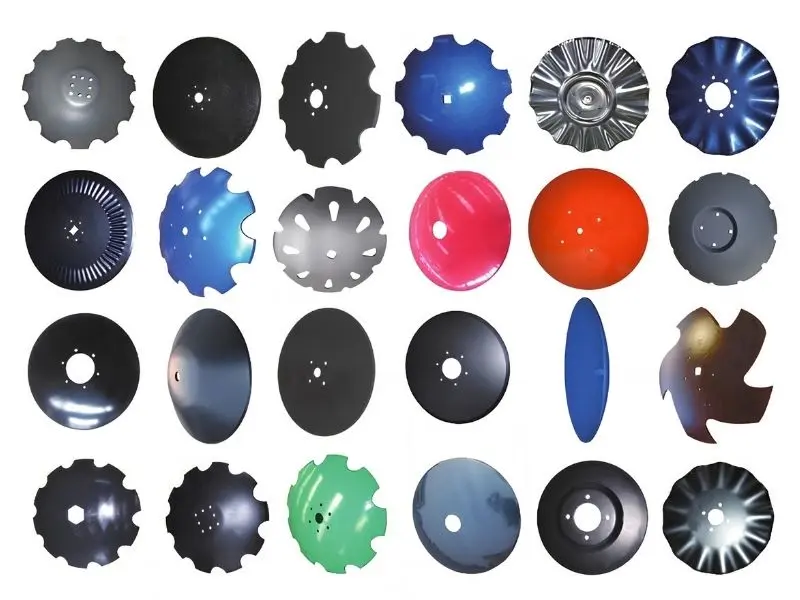

Agricultural replacement disc blades for disc harrows, disc ploughs and other tillage equipment.

One range covers the edge profiles, bore patterns and finishes most often ordered for soil preparation, so a full disc set can be built from a single source.

What you can choose

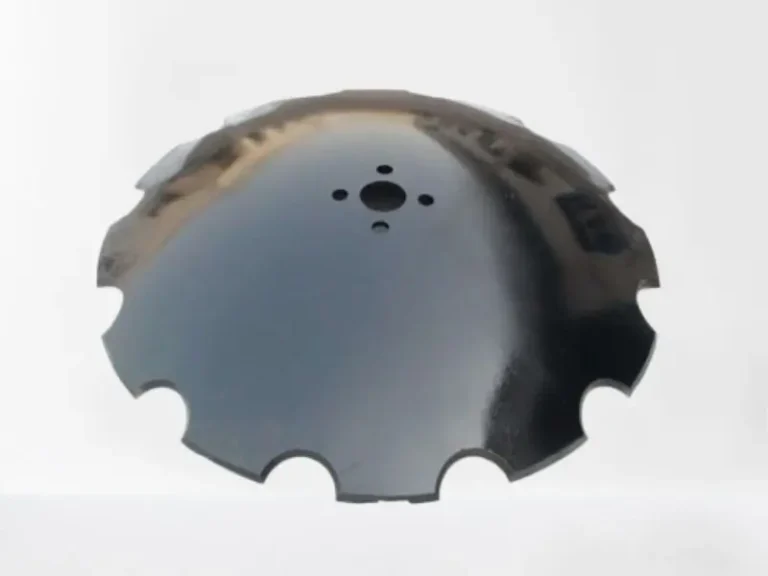

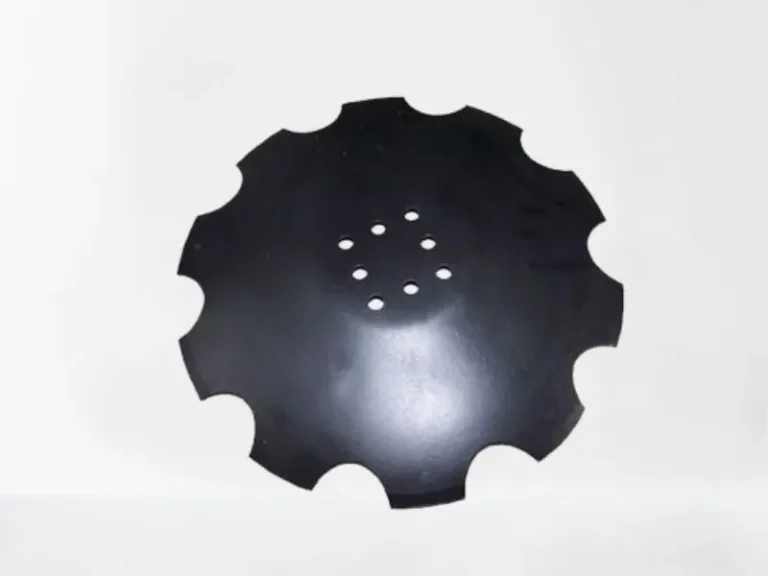

Edge profile: plain (smooth) · notched (scalloped) · fluted / ribbed
Bore pattern: single round bore · multi-hole (4-bolt) · hub-mounted
Finish and colour: black · blue · red · green · pink · zinc-plated
Disc diameter and thickness: [to be confirmed]

How to order

Send the edge profile, the bore pattern and the disc sizes you need, and we will quote against them.

heat treatment line

Professional heat treatment furnace can produce harrow and plow disc blade with hardness up to 52HRC.

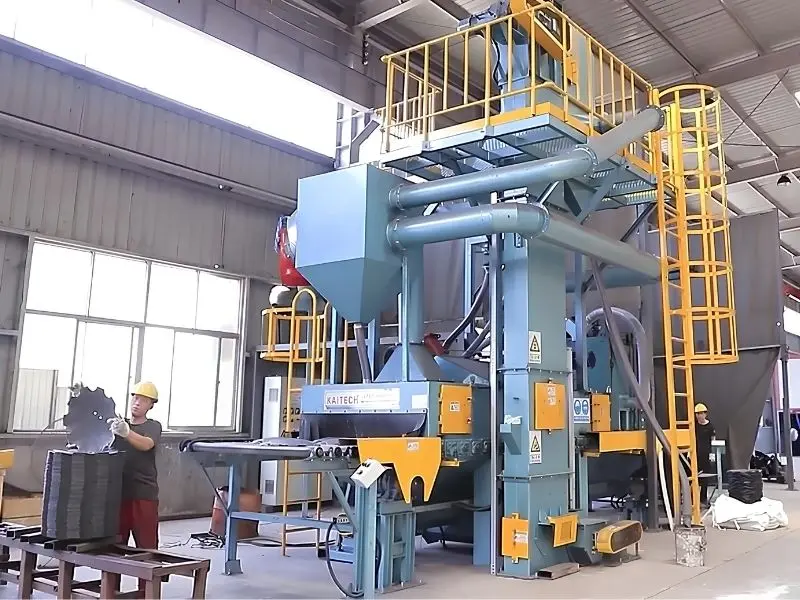

shot blasting line

It efficiently removes rust, scale, and impurities, creating an ideal surface for coating. Enhances blade durability and performance in agricultural applications.

automatic painting line

Environmentally friendly, uniform layer, strong adhesion, high glossiness ,Strong durability.

How do I confirm the size?

Send the outside diameter, thickness, centre hole diameter and the bolt-hole circle, or simply send a drawing, a sample or the part number.

Can I use this smooth disc where a notched disc was fitted?

If the diameter and the hole pattern are the same, it mounts, but the job changes. The smooth edge suits softer or already-worked soil; the notched edge grips and cuts in hard or high-residue conditions.

Can a wave blade replace a flat blade on the same gang?

It mounts if diameter and hole pattern match, but the working result changes — more residue lifting and more soil movement. For a matched set, keep the same edge profile across the whole gang.

How do I count the waves on my blade?

Count the wave peaks around the circumference — 6, 8 and 13 are the common configurations. Send a photo of the edge and we will match the profile.

How often should disc blades be replaced?

Replacement depends on soil conditions, working hours, blade material, and wear. Blades should be replaced when their working diameter or cutting performance is significantly reduced.

What is the difference between notched and smooth disc blades?

Notched blades provide stronger soil cutting and residue penetration, while smooth blades are commonly used for general soil tillage.

Can disc blades be customized for different machines?

Yes. Disc blades can be supplied with different diameters, thicknesses, hole patterns, and edge profiles according to machine requirements.

How do I choose the right disc blade size?

The right blade size depends on the implement model, working depth, soil conditions, and tractor power.

What types of disc blades are available?

We offer disc blades in different diameters, thicknesses, profiles, and materials to match various disc harrows and soil conditions.
