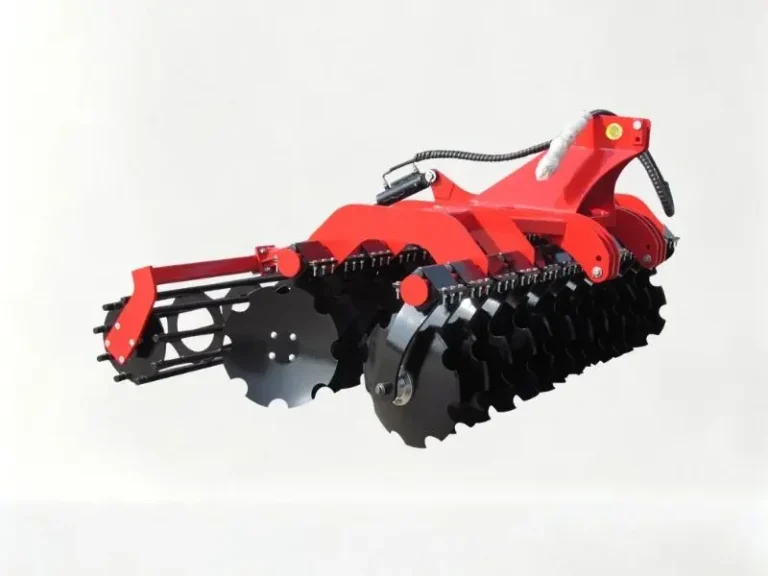

1LZX compact speed disc harrow

1LZX compact speed disc harrow

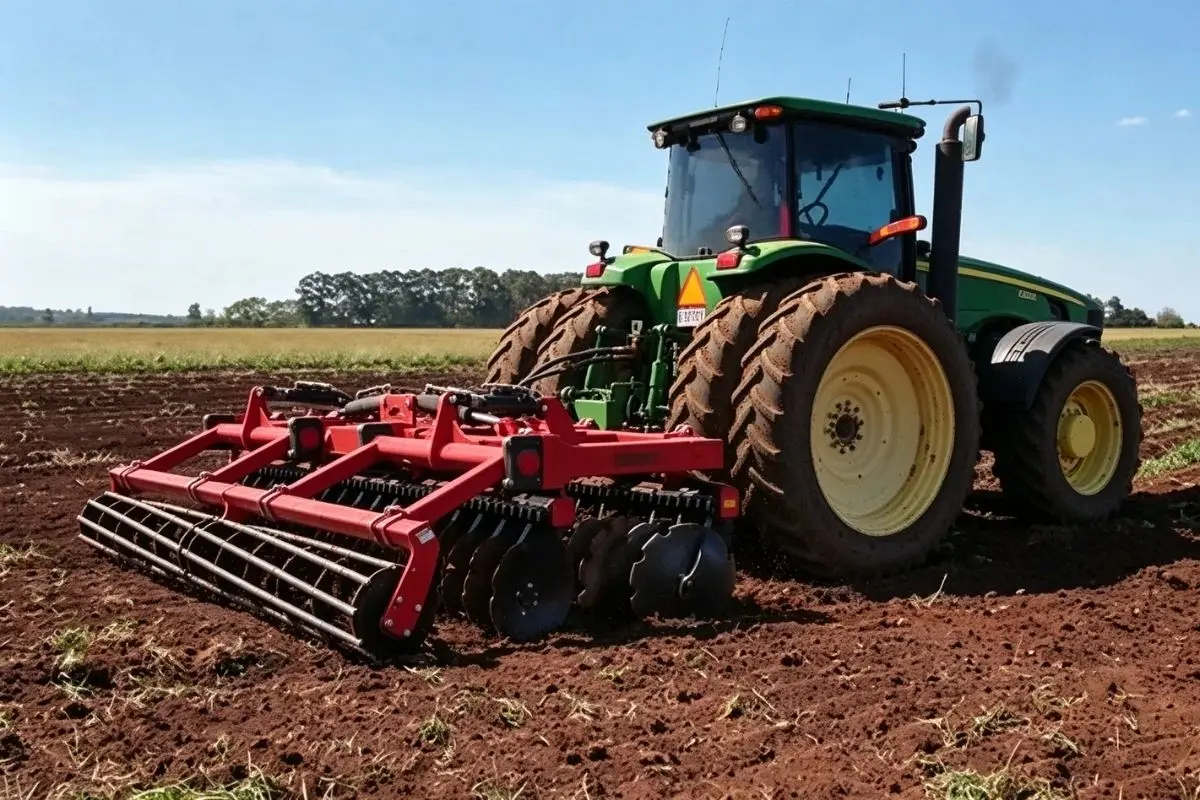

suspended high speed disc harrow is a heavy-duty farm tillage implement, matched with tractor three-point hitch. It completes cutting, mixing and leveling in one pass, greatly improving land preparation efficiency for large farms.

1LZX Suspended High Speed Disc Harrow for Farm Soil Preparation

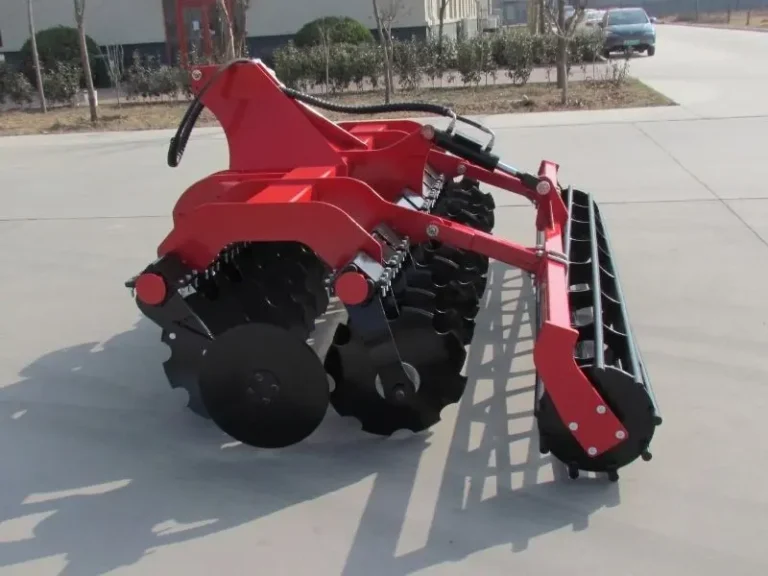

High‑Speed Disc Harrows—also known as High Speed Disc Cultivators—are agricultural implements designed for fast, efficient, shallow soil preparation before seeding. Their ability to operate at higher ground speeds without compromising work quality makes them ideal for quick field passes following harvest or as part of secondary tillage.

These implements are built to be light yet robust, enabling stable performance at higher speeds. They typically use 22inch discs mounted on a frame connected to the tractor’s three‑point hitch (3‑pt) .

Greater maneuverability across irregular fields.
Easy adaptation to different soil conditions.
Reliable high‑speed performance, aided by the outer cutting edge of the discs, while notched discs improve residue slicing and breakdown.

Function and Field Benefits

The primary function of a High Speed Disc Harrow is to break, mix, and level the upper soil layer, removing weeds and incorporating crop residues. As the tractor pulls the implement, the discs penetrate the soil, turning and mixing organic matter into the top layer.

Improves soil structure and surface tilth.
Enhances water retention and infiltration.
Creates a uniform seedbed for subsequent planting operations.

Specification:

Technical specifications	Model
Technical specifications	1LZX-3.0G	1LZX-3.5G	1LZX-4.0G	1LZX-3.0H	1LZX-3.5H	1LZX-4.0H
Working width (mm)	3000	3500	4000	3000	3500	4000
Length of the roller (mm)	2900	3400	3900	2900	3400	3900
Diameter roller (mm)	450	450	450	450	450	450
Type roller	TAVALUG PACKER			TAVALUG COARDA
Number batteries discs (pcs)	2	2	2	2	2	2
Number of discs (pcs)	24	28	32	24	28	32
Distance between discs (mm)	240	240	240	240	240	240
Diameter discs (mm)	560			560
Working depth (mm)	180	180	180	180	180	180
Working speed (km/h)	7–12	7–12	7–12	7–12	7–12	7–12
Transport clearance (mm)	Min 300	Min 300	Min 300	Min 300	Min 300	Min 300
Transport speed (km/h)	15	15	15	15	15	15
Productivity (ha/h)	2.1-3.3	2.5-3.9	2.8-4.4	2.1-3.3	2.5-3.9	2.8-4.4
Required tractor power hp	100-130	110-130	120-150	100-130	110-130	120-150
Weight (kg)	1620	1950	2150	1400	1750	1950

Key Considerations Before Choosing

Soil Type & Task
High Speed Disc Harrow are designed for shallow operations and seedbed preparation; they are not intended for deep decompaction.

Tractor Power Matching
Higher disc concavity increases aggressiveness and residue incorporation, but also raises draft and power requirements. Match implement width and disc design to available horsepower.

Maintenance
Regular inspection of discs, bearings, and frame preserves performance and extends service life—especially important at higher operating speeds.

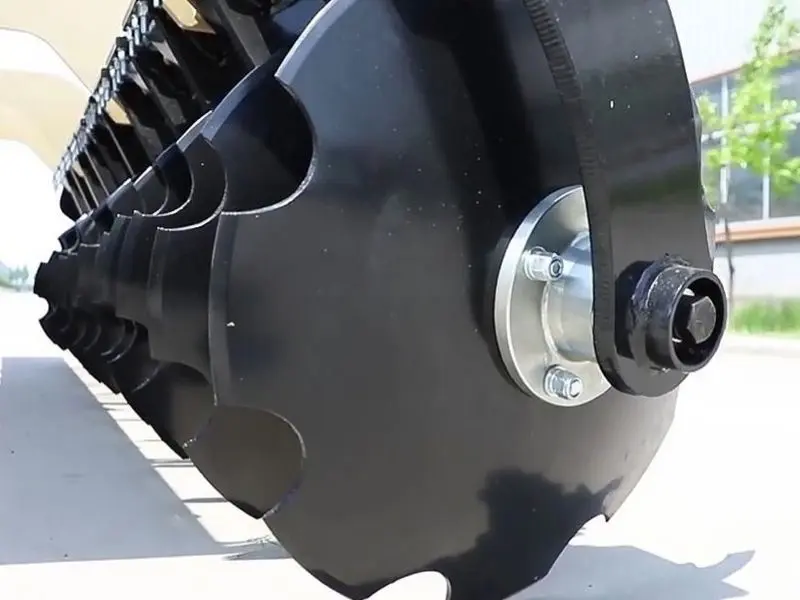

Heat-Treated Notched Disc Blades

All disc blades adopt professional heat treatment technology. The high hardness steel disc maintains stable cutting performance under heavy soil conditions, strong wear resistance, long service life, less replacement frequency and lower maintenance cost.

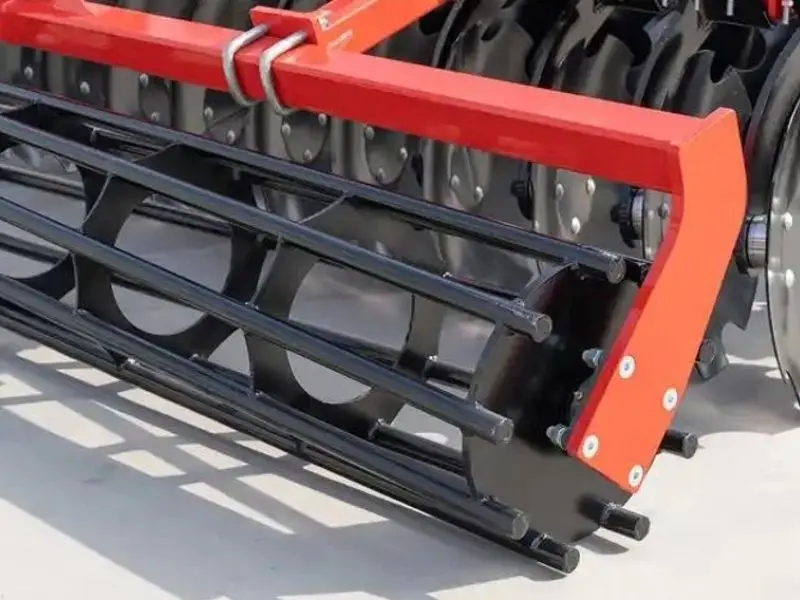

Rear Cage Roller for Superior Soil

Equipped with heavy-duty rear cage roller. It breaks clods and flattens the soil surface after disc cutting. The roller mixes crop residue evenly into topsoil, leaving fine, consistent seedbed, improves soil structure for better germination.

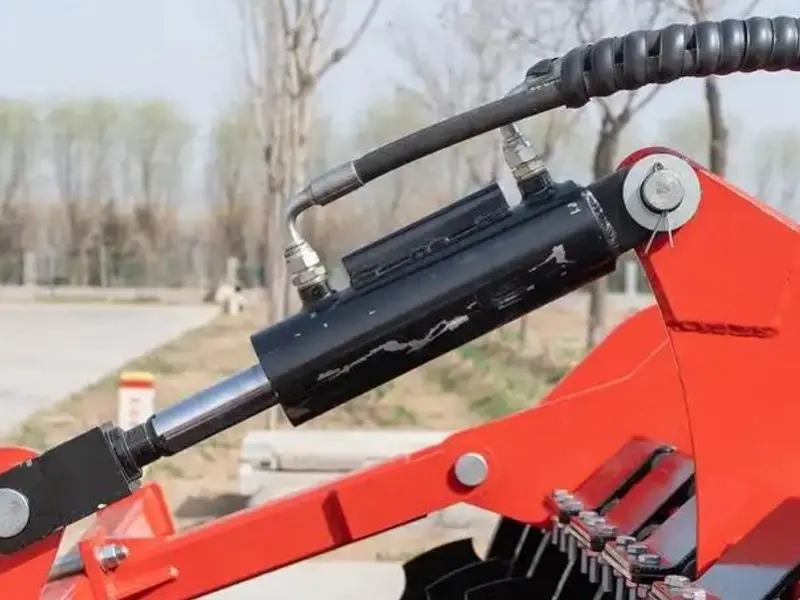

Hydraulic System for Rear Roller Adjustment

The rear cage roller is controlled by independent hydraulic system. Operators can adjust roller depth and pressure conveniently from tractor cabin. Fast adjustment saves downtime, supports continuous high-speed field operation and boosts overall working efficiency.

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
