1BQDX-G light duty disc harrow

1BQDX-G light duty disc harrow

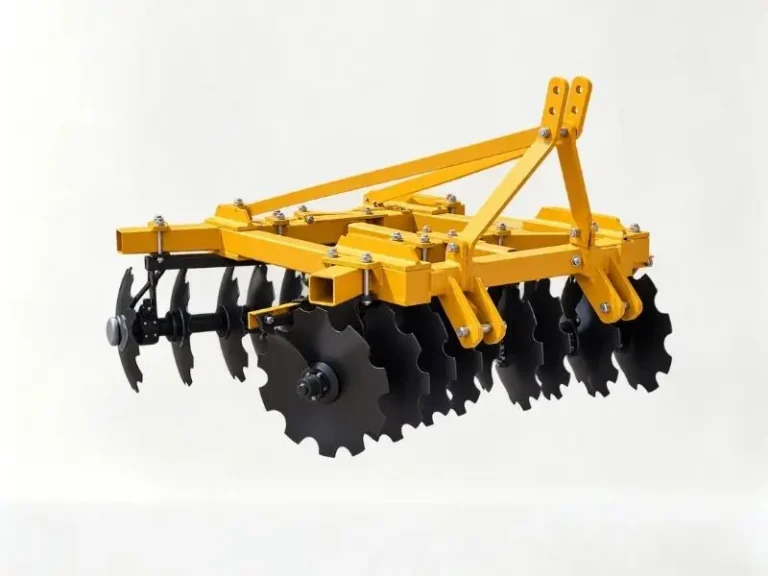

A light-duty offset disc harrow with a durable square tube frame and 460 or 510mm notched disc blades, designed for effective soil cutting, breaking and field preparation.

Light Duty Offset Disc Harrow with 460/510mm Disc Blades

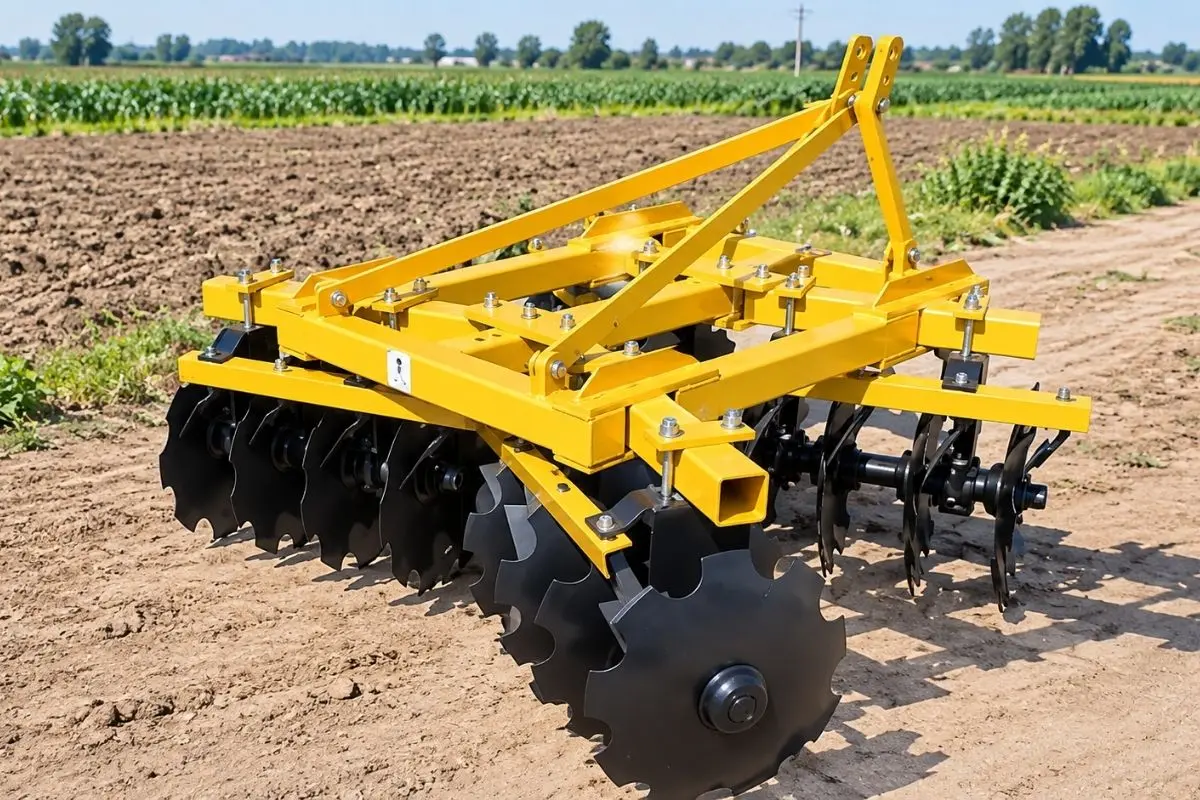

The Light Duty Offset Disc Harrow is designed for efficient soil preparation, surface tillage and field leveling. It features a durable square tube frame and two opposed disc gangs that provide effective soil cutting and breaking performance.

Available with 460mm or 510mm diameter notched disc blades, the harrow can be configured according to different soil conditions and working requirements. The notched blades provide good penetration and help cut through crop residues, weeds and compacted soil.

Specification:

Model	1BQDX-1.25G	1BQDX-1.6G		1BQDX-1.95G	1BQD-2.3G
Number of disc	16	20		24	28
Working width(mm)	1250	1600		1950	2300
Working depth(mm)	50-150	50-150		50-150	50-150
Disc spacing(mm)	175	175		175	175
Dia. of disc	18″	18″	20″	20″	20″
Weight(kg)	390	450	470	520	540
Tractor power(hp)	30-40	40-50	50-60	60-75	60-75

The offset disc arrangement creates an effective cutting and throwing action as the machine moves through the field. The two disc gangs work in opposite directions, helping to improve soil mixing, break soil clods and leave a more evenly prepared surface.

With its simple structure, practical adjustment design and reliable working performance, this light-duty offset disc harrow is suitable for small and medium tractors and a variety of field preparation applications.

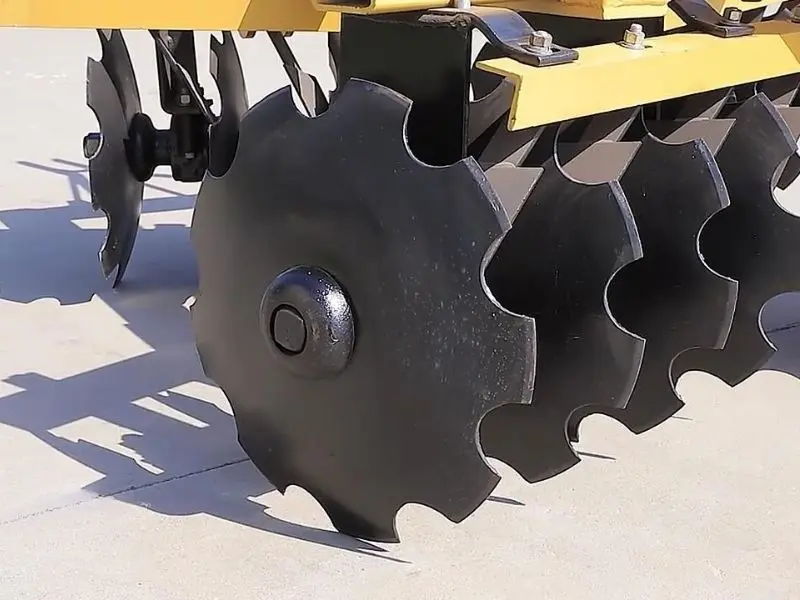

Heat-Treated Notched Disc Blades

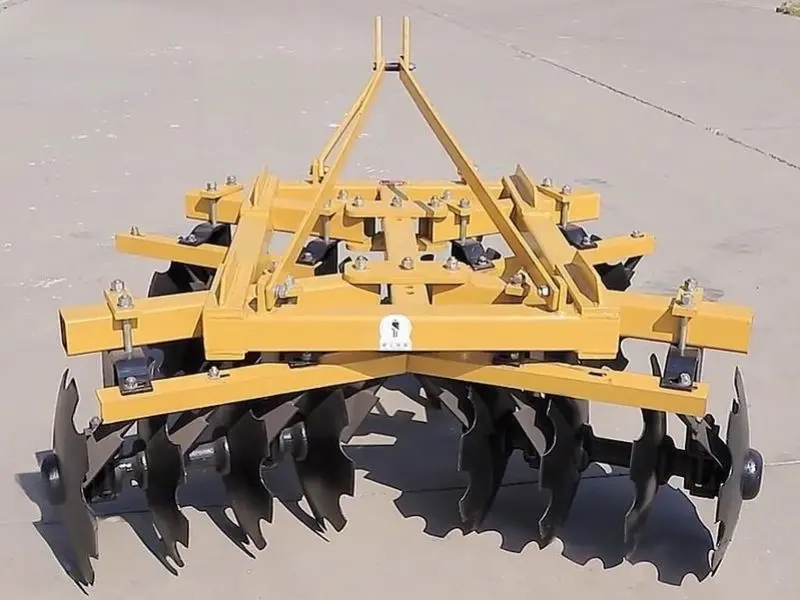

Available with 460 or 510mm notched disc blades, the harrow provides good soil penetration and cutting performance for different field conditions.

Opposed Disc Gang

The opposed disc arrangement improves soil cutting and throwing action, helping achieve effective soil breaking, mixing and turning during field operations.

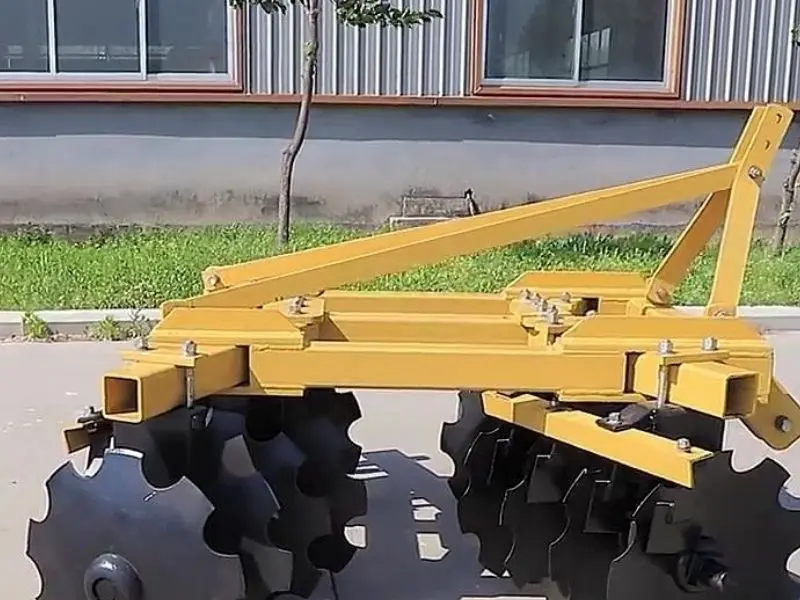

Square Tube Frame

The square tube frame provides a strong and stable structure, helping the disc harrow withstand working loads while maintaining reliable performance in the field.

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
