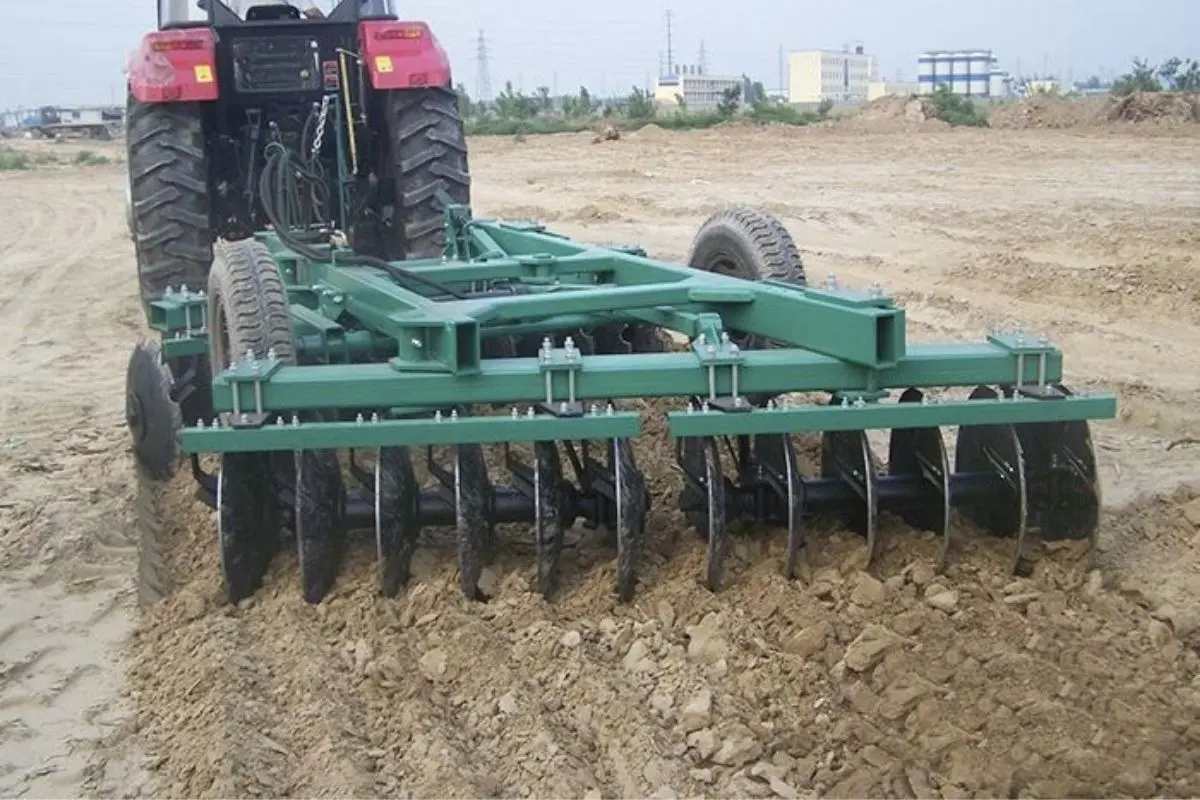

IBZX trailed offset disc harrow

IBZX trailed offset disc harrow

A heavy-duty trailed offset disc harrow with 660mm discs, designed for large tractors and large-scale field operations, providing powerful soil cutting, breaking and turning performance.

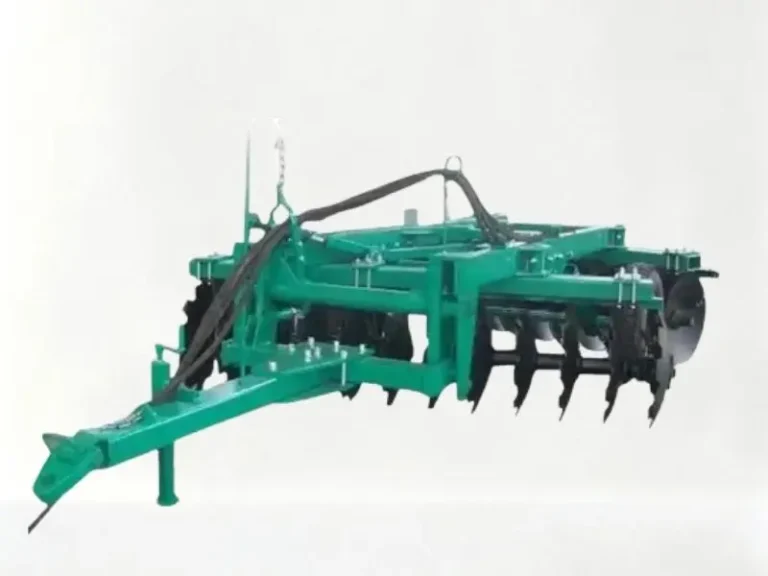

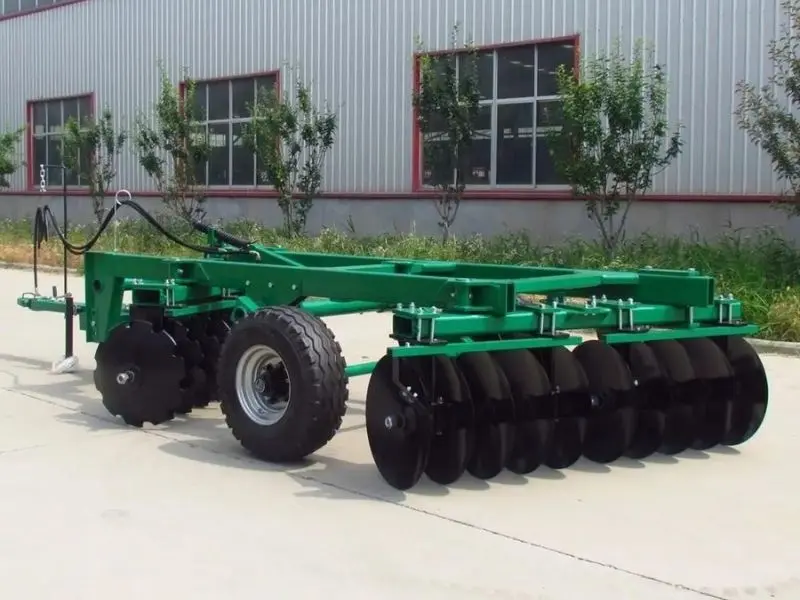

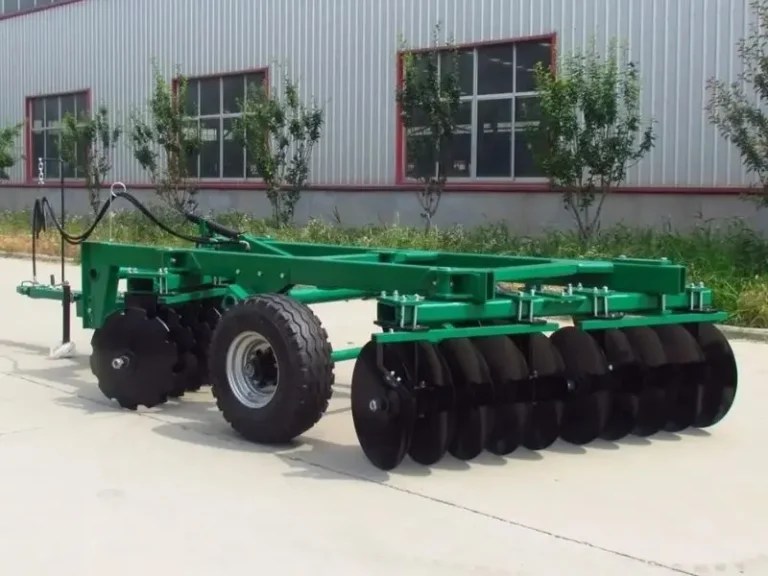

1BZX Heavy Duty Trailed Offset Disc Harrow with 660mm Discs

The Heavy Duty Trailed Offset Disc Harrow is designed for demanding soil preparation and large-scale agricultural operations. Equipped with 660mm diameter disc blades, this machine provides strong cutting and soil penetration performance for heavy field conditions.

Its offset disc harrow design allows the front and rear disc gangs to work at an offset angle, helping achieve effective soil cutting, turning and mixing. The front gang uses notched disc blades for aggressive soil penetration and residue cutting, while the rear gang uses plain disc blades to further level and refine the soil surface.

Built with a heavy-duty frame and trailed structure, the disc harrow is suitable for use with large and high-horsepower tractors. Its robust construction makes it suitable for extensive field operations where high working capacity and reliable performance are required.

The combination of large-diameter discs, offset configuration and heavy-duty construction provides excellent soil breaking, cutting and turning performance, making it suitable for primary and secondary soil preparation in different agricultural conditions.

Specification：

Model	1BZX-2.0	1BZX-2.2	1BZX-2.35	1BZX-2.5	1BZX-3.0	1BZX-3.5
Number of disc	18	20	22	24	28	32
Diameter of disc(mm)	660*6
Working width(mm)	2000	2200	2350	2500	3000	3500
Weight (kg)	1740	2050	2150	2250	2450	2950
Tractor(hp)	85-95	95-100	100-130	130-160	140-180	180-250
Disc spacing	9″(230mm)
Axle size	Square or round 1.4/7″(40mm)
Depth cut	7″-8.5/8″(180-220mm)
Bearing Assembly	Grease or oil bath

The machine is particularly suitable for large farms and agricultural contractors in the Middle East and Africa, where heavy-duty equipment is required for large areas and demanding soil conditions.

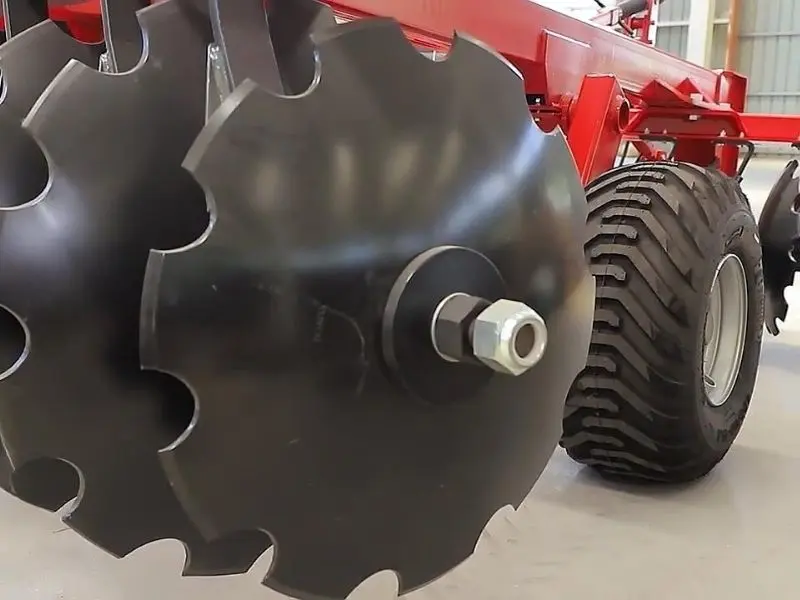

660mm Heavy-Duty Disc Blades

Large 660mm disc blades provide strong soil penetration and cutting capacity, making the machine suitable for tough soil conditions and intensive field operations.

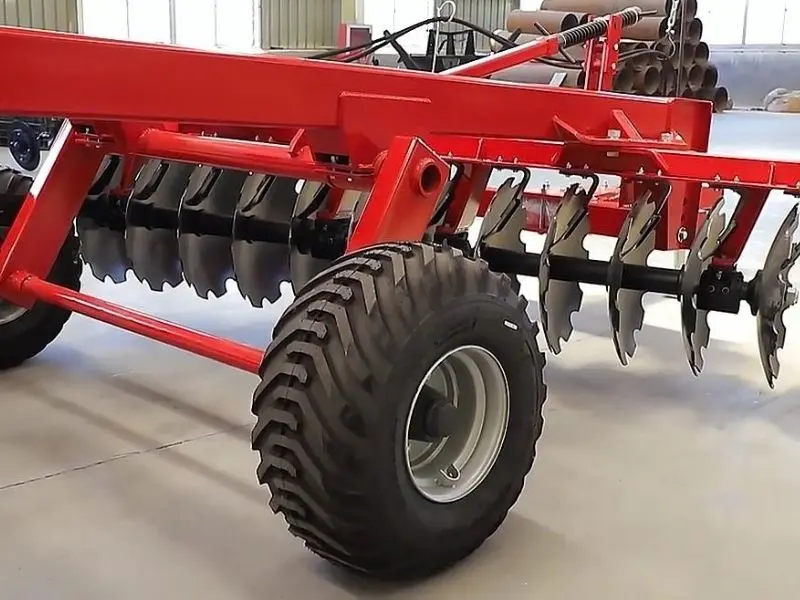

agricultural field tyres

Rides on two heavy-duty agricultural implement tyres ,they carry the whole frame along headlands and farm tracks, so you can pull the machine from one plot to the next without loading it on a trailer.

Front Notched & Rear Plain Discs

The front notched discs provide aggressive cutting and penetration, while the rear plain discs help further break and level the soil for a more uniform seedbed.

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
