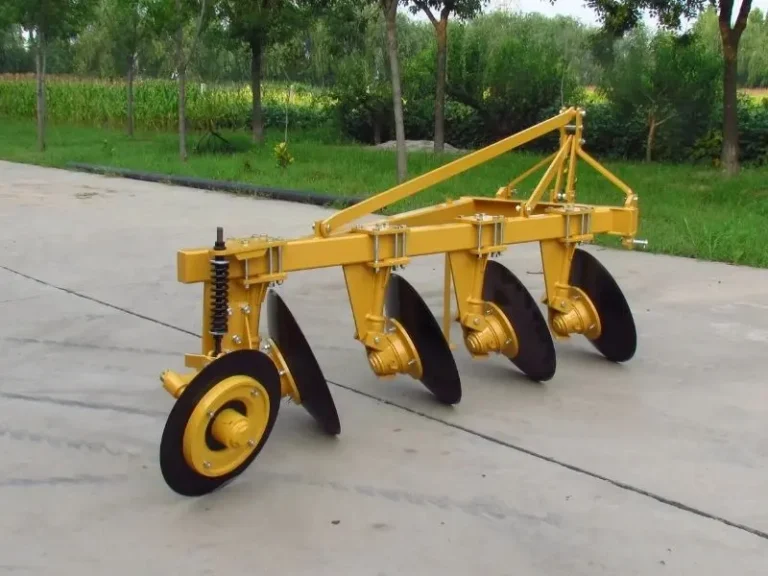

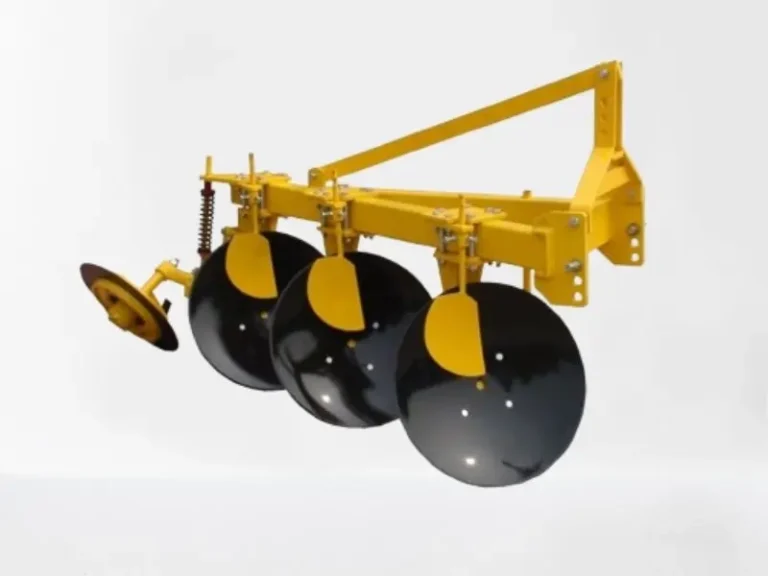

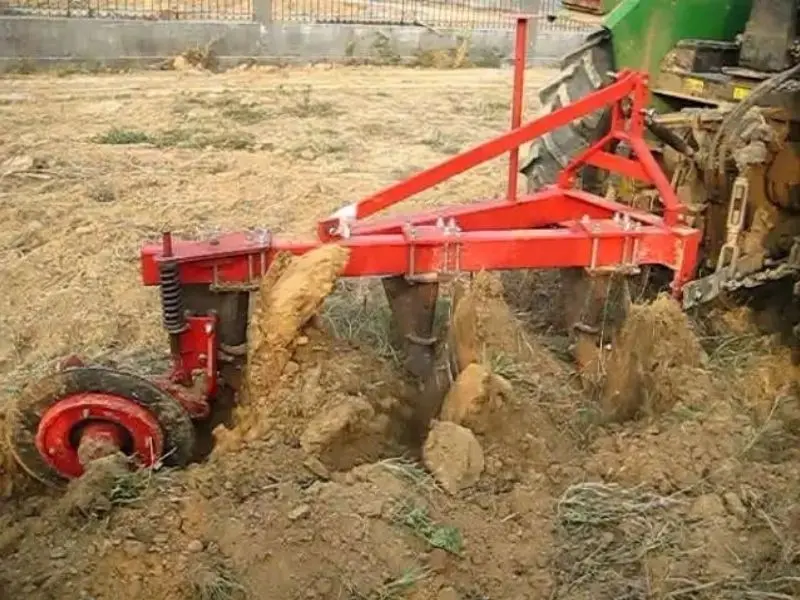

1LY disc plow

This 1LY disc plow disc plough features a three-point hitch, making it compatible with small to medium-sized tractors, features adjustable cutting depth and reinforced steel construction.

1LY Disc Plow | Tractor-Mounted Agricultural Disc Plough

This 1LY Disc Plow ,One-Way Disc Plough for Agricultural Farmland Plowing and Soil Preparation equipped with high-strength disc blades. It is designed for primary tillage in hard soil, virgin land, and fields with weeds or crop residues. This disc plough features a three-point hitch, making it compatible with small to medium-sized tractors. it offers strong soil penetration, excellent turning of the soil and resists clogging, making it ideal for initial land preparation.

Technical data:

Model	Number of discs	Diameter of disc (mm)	Working width(mm)	Working depth(mm)	Weight(kg)	Matched Tractor (hp)
1LY-315	3	460	450	180	170	25-30
1LY-320	3	510	600	200	190	30-50
1LY-322	3	560	660	220	316	45-55
1LY-225	2	660/710	500	250-300	305-315	50-60
1LY-325	3	660/710	750	250-300	430-450	75-90
1LY-425	4	660/710	1000	250-300	500-525	90-100
1LY-525	5	660/710	1250	250-300	600-630	100-120

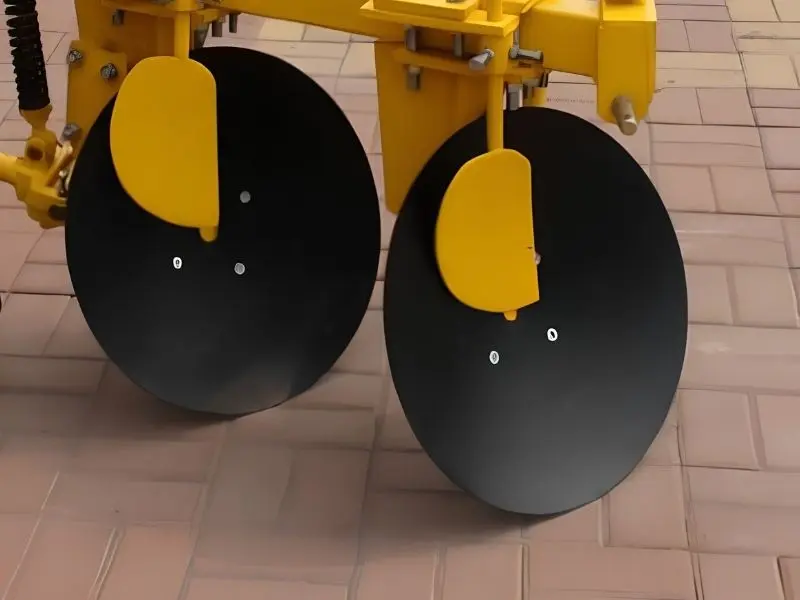

high quality discs

Precision-forged from 65Mn steel with advanced heat treatment, delivering exceptional hardness and long-lasting wear resistance

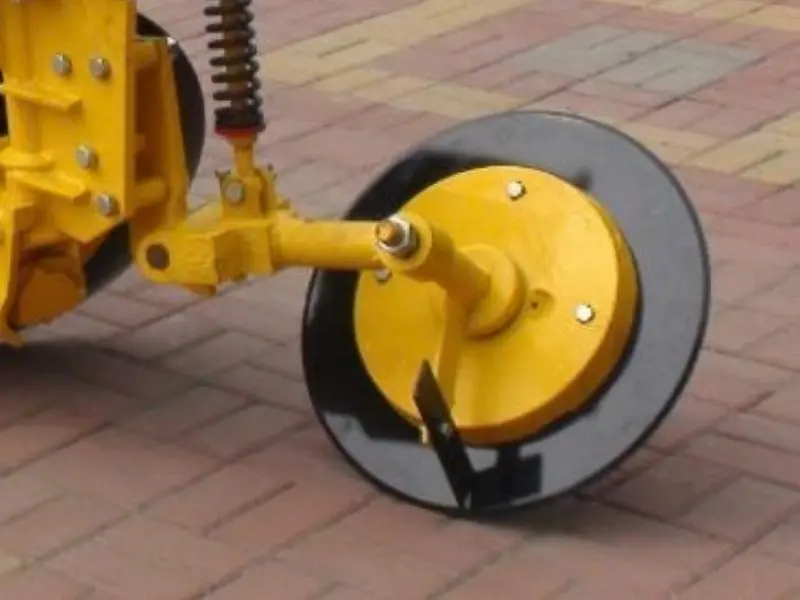

spring tail wheel

spring shock-absorbing arm cushions the ride and regulates plowing depth. Cast iron hub secured with hex bolts, thickened wear-resistant disc blade

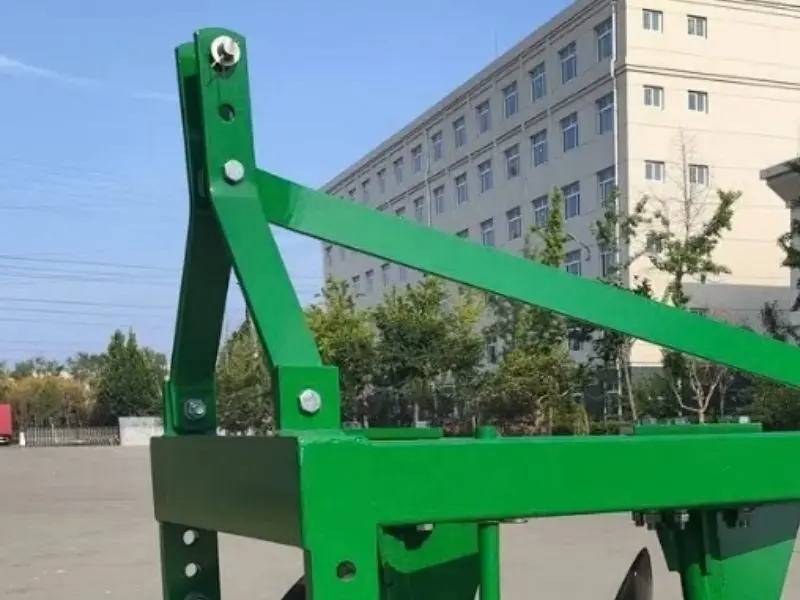

3 pinot hitch

Standard three-point hitch allows quick, secure hookup to Category 1 & 2 tractors, ensuring stable, balanced plowing performance across various field conditions.

Frequently Asked Questions

What maintenance does a disc plow require?

Regularly check disc blades, bearings, fasteners, frame components, and lubrication points, and replace worn parts when necessary.

Can the disc plow be customized?

Yes. Working width, disc diameter, disc number, frame configuration, and other specifications can be adjusted according to customer requirements.

What sizes of disc plows are available?

Disc plows are available in different working widths, disc numbers, disc diameters, and configurations to suit different tractors and farming conditions.

How do I choose the right disc plow for my tractor?

Selection depends mainly on tractor horsepower, working width, soil conditions, required working depth, and field size.

What is a disc plow used for?

A disc plow is mainly used for primary tillage, soil breaking, turning, and incorporating crop residues before planting.

Technical Assistance

Our expert team provides 24/7 response and remote diagnosis to keep your machinery running. Fast, reliable support whenever you need it.

YIDE Machinery specializes in agricultural machinery, including disc plows, disc harrows, and other farm equipment, providing reliable solutions for agricultural operations worldwide.
