1BQDX light duty disc harrow

1BQDX light duty disc harrow

Mounted light duty disc harrow with two opposed gangs of notched disc blades in 460 mm or 510 mm. Heat-treated blades cut and mix the soil, cleaning scrapers keep every blade turning at working depth, and the 3-point hitch keeps the pull straight – clod breaking, residue mixing and seedbed preparation in one pass.

Light Duty Opposed Disc Harrow – 460mm / 510mm Notched Disc Blades

1BQDX light duty opposed disc harrow mainly applicable for breaking up the clods of farmland and light soil after furrow and loosening soil by disc plough, and mixing soil and fertilizer beforesowing. With reasonable structure. strong ability to rake.durable. easy to use and maintain.etc.

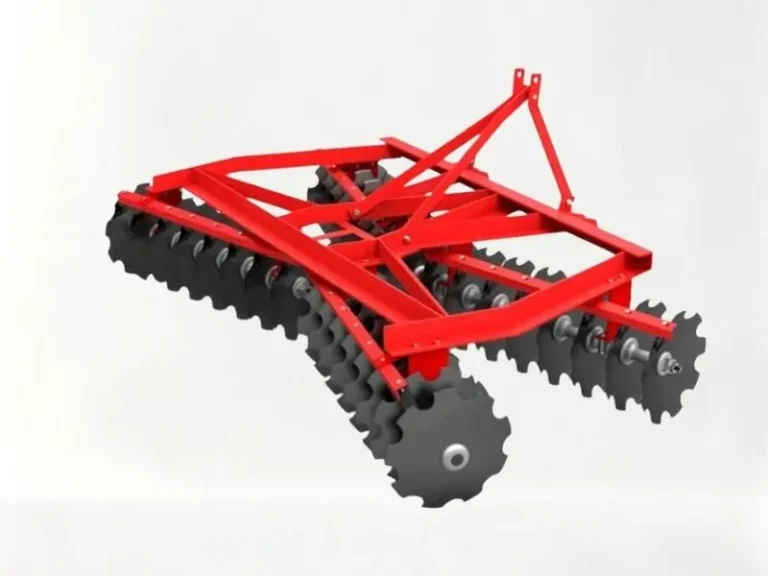

A mounted light duty opposed disc harrow that carries two opposed gangs of notched disc blades on a welded square-tube steel frame. Blades are available in 460 mm and 510 mm diameters.

two opposed disc gangs.
Blades that hold their edge.
Scrapers that keep the blades rotating.
Simple to hitch, simple to run.

Specification :

Model	Number of discs	Size of disc (mm)	Working width (mm)	Working depth (mm)	Weight (Kg)	Matched power (HP)
1BQDX-1.25	16	460X4	1250	50-150	301	35-40
1BQDX-1.6	20	460/510X4	1600	50-150	364-380	44-50

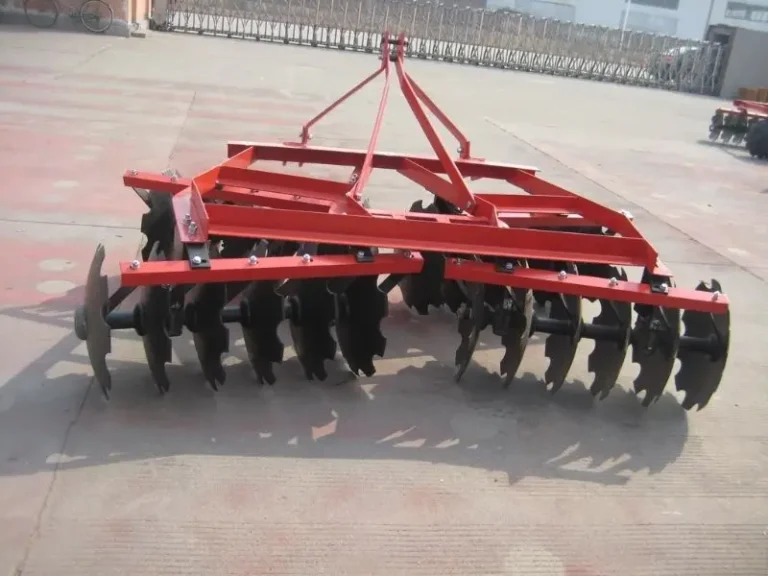

1BQDX-1.95	24	460/510X4	1950	50-150	407-430	50-60
1BQDX-2.3	28	460/510X4	2300	50-150	459-487	60-75
1BQDX -2.65	32	460/510X4	2650	50-150	487-519	75-85
1BQDX-3.0	36	460/510X4	3000	50-150	530-600	85-100

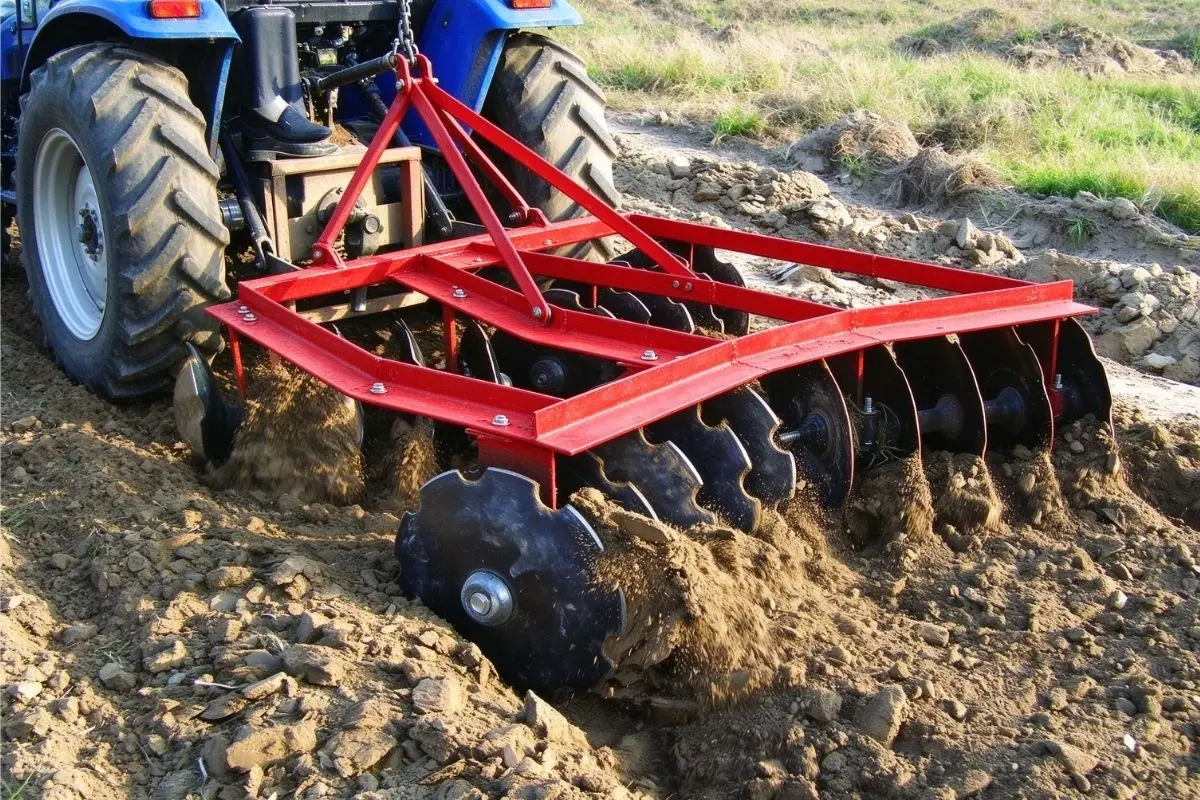

Where it works

Breaking clods and levelling after ploughing, incorporating straw and crop residue, and preparing a fine, even seedbed for maize, cassava, sugarcane, pulses and vegetables.

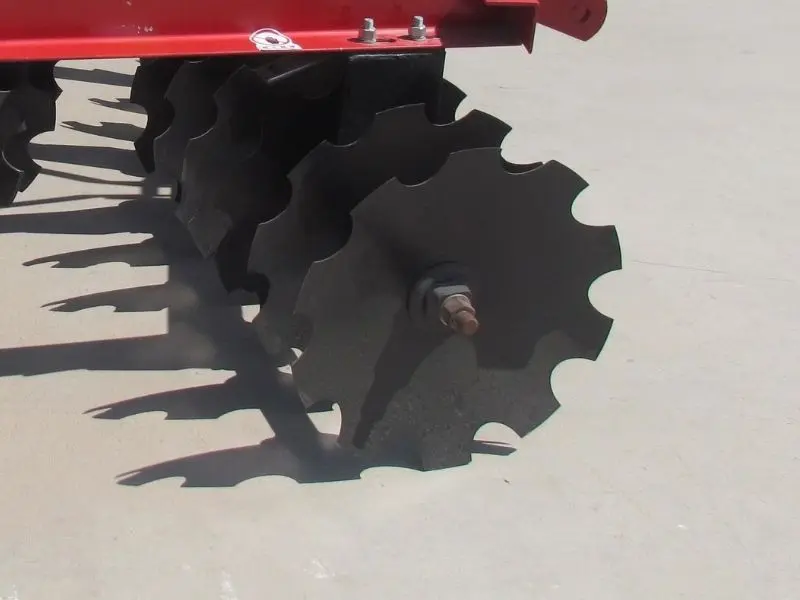

Heat-Treated Notched Disc Blades

The blades are made in 460 mm and 510 mm notched profiles and heat treated for high, even hardness, so the cutting edge wears away slowly instead of rolling over.

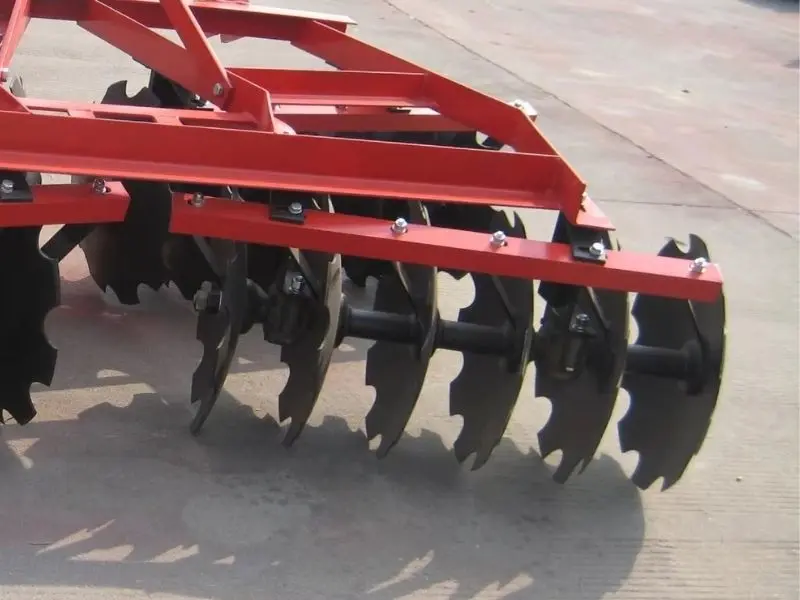

Cleaning Scrapers

A scraper is mounted between the blades of each gang and wipes off the soil that sticks to the blade face. so the blades keep turning smoothly and the harrow holds its designed working depth.

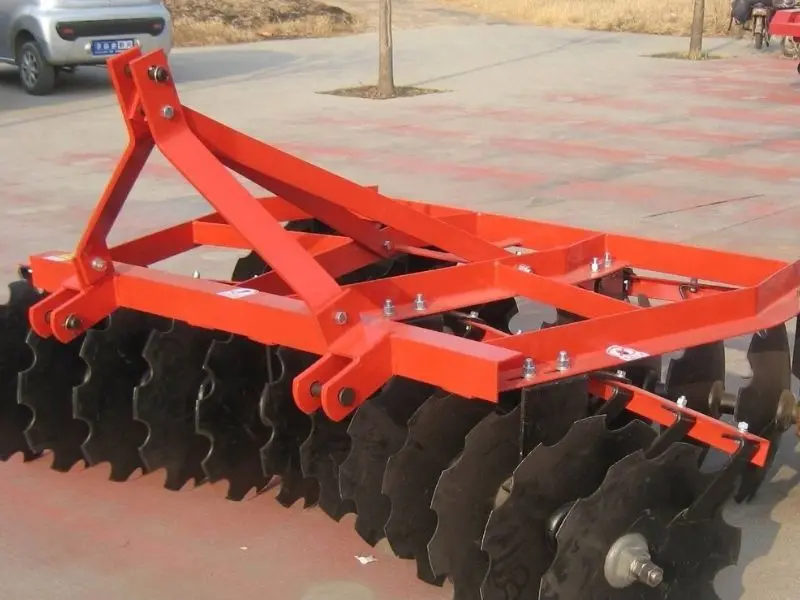

3-Point Hitch and Opposed Gangs

The two gangs of disc blades are set opposite to each other, so the side forces cancel out and the harrow tracks straight behind the tractor instead of pulling to one side. Mounted on a standard 3-point hitch, it lifts, lowers and sets depth with the tractor’s own linkage.

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

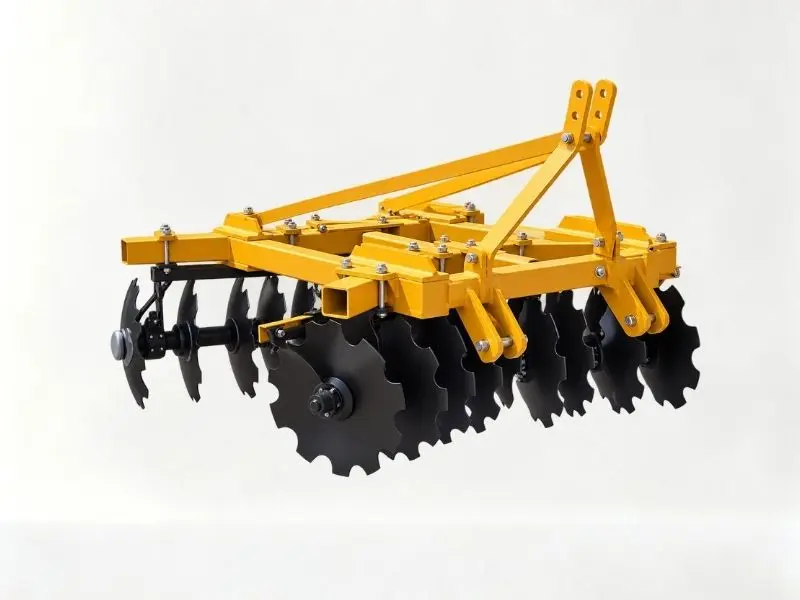

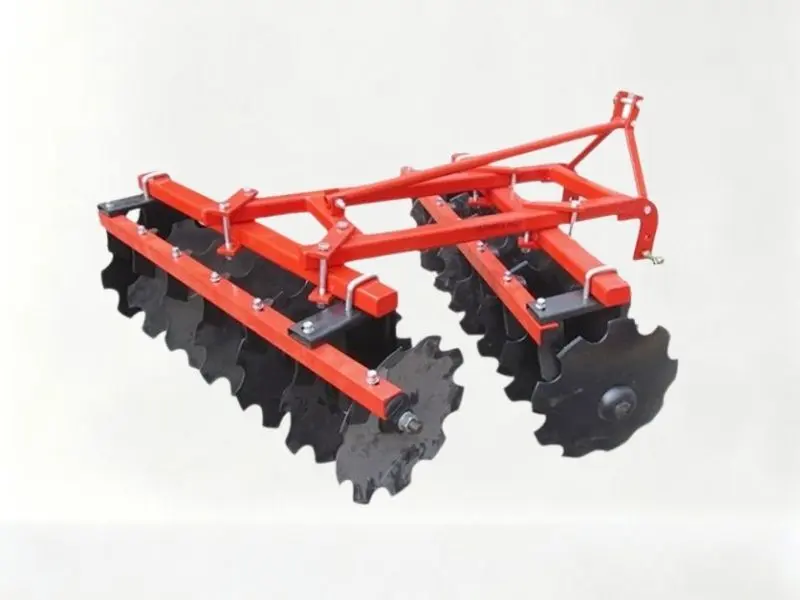

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
