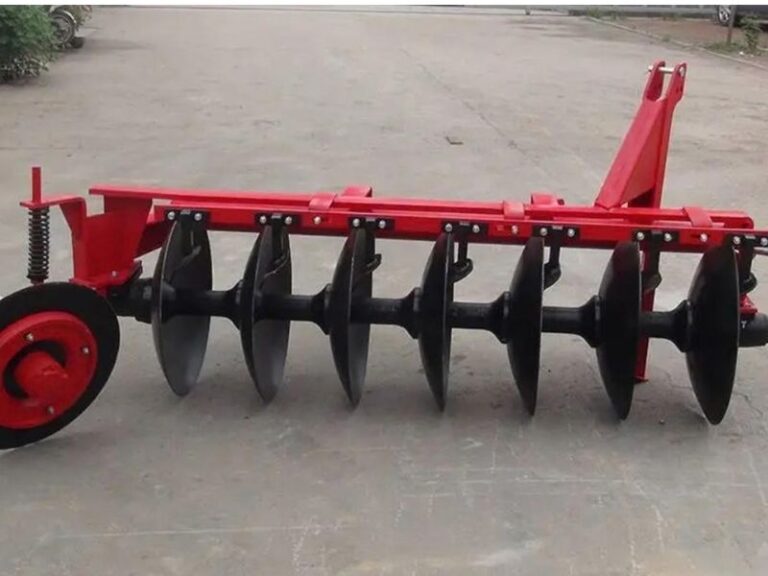

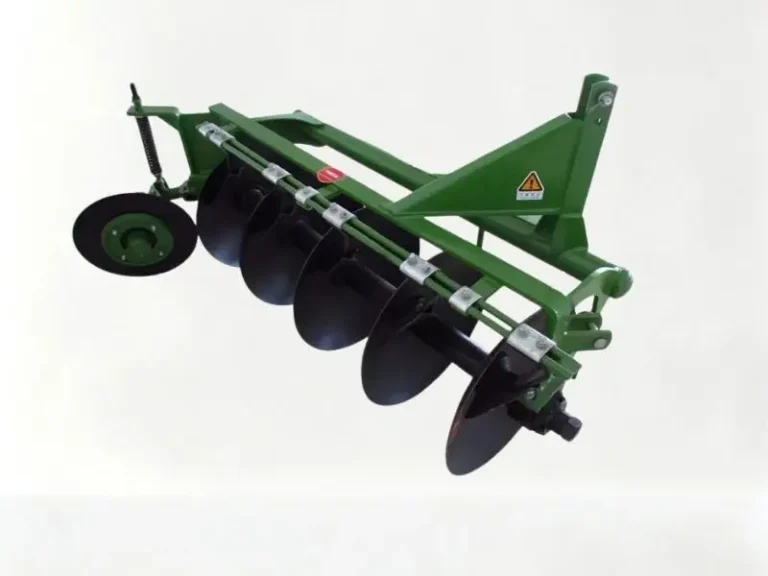

Paddy Field Disc Plough – Concave Disc Blades & 3-Point Hitch

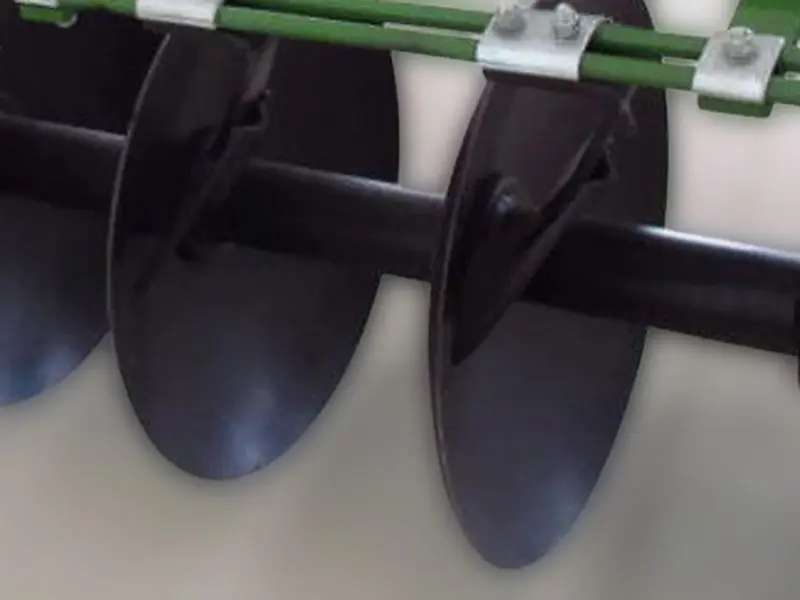

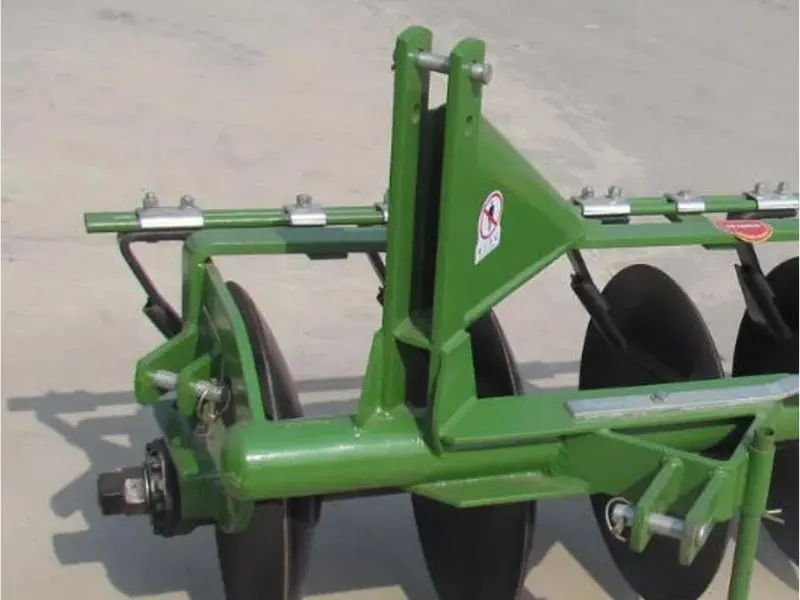

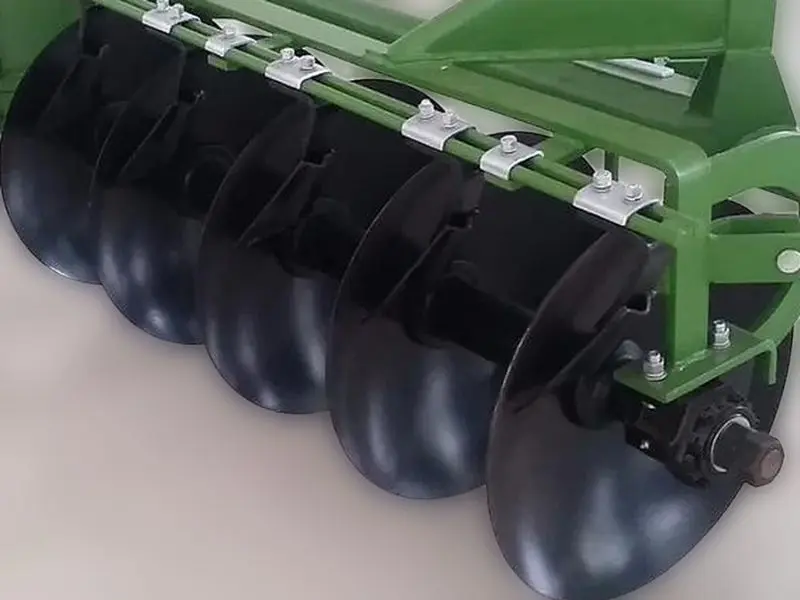

A new-design paddy field disc plough for rice paddies and wet, heavy land. concave disc blades run on a single shaft, separated by the same spacer tubes we use on our disc harrows, and the plough mounts on the tractor’s standard 3-point hitch. Strong, simple and easy to service – built for rice growers in Myanmar and across Southeast Asia.

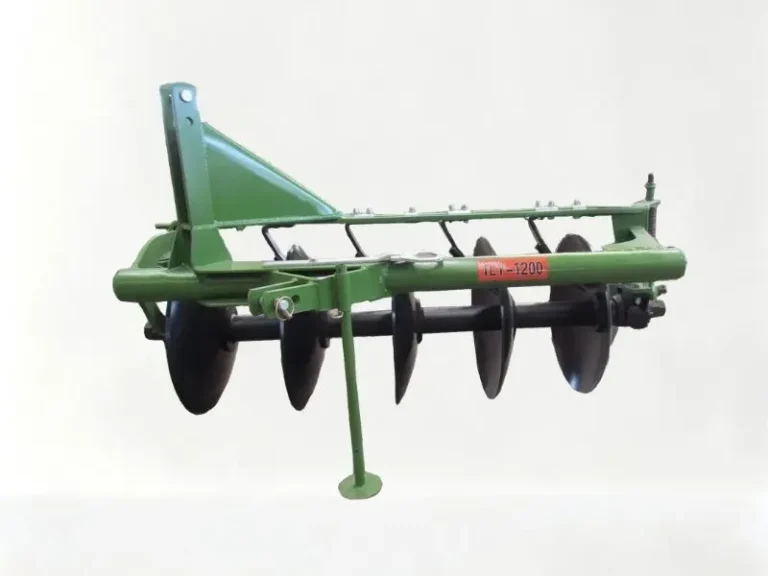

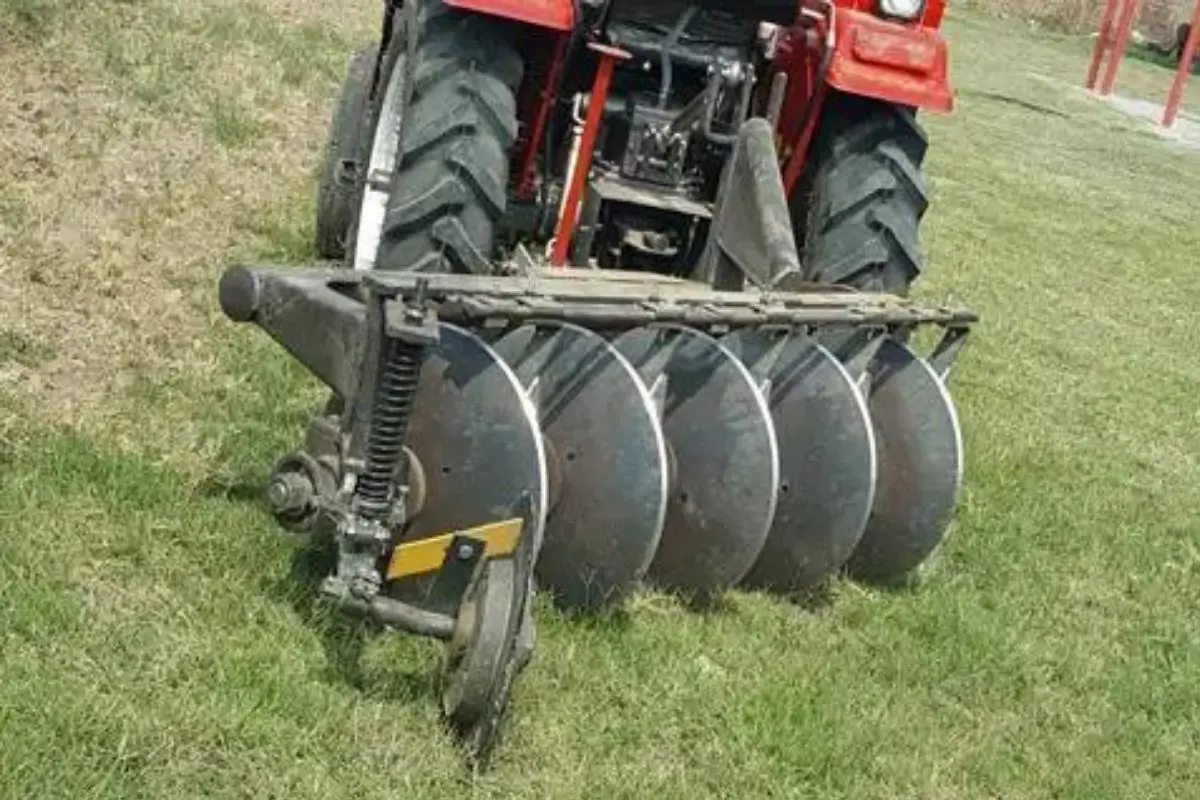

There is no PTO and no hydraulic cylinder to connect, so this paddy field disc plough can be fitted or removed in a few minutes and lifted clear of the ground for transport and turning. A spring-loaded gauge wheel at the rear follows the ground and helps hold a steady working depth, and a parking stand keeps the plough upright when it is standing off the tractor.
Specification:
| Model | 1LY-1200 | 1LY-1440 | 1LY-1400 | 1LY-1600 | 1LY-1650 | 1LY-1900 |
| Working depth(mm) | 140 | 140 | 160 | 160 | 180 | 180 |
| Working width(mm) | 1200 | 1440 | 1400 | 1600 | 1650 | 1900 |
| Number of discs | 5 | 6 | 5 | 6 | 6 | 7 |
| Diameter of disc (mm) | 560 | 560 | 610 | 610 | 660 | 660 |
| Thickness of disc (mm) | 5 | 5 | 5 | 5 | 5 | 5 |
| Type of Linkage | Type I | Type I | Type II | Type II | Type II | Type II |
| Matched tractor(hp) | 30-35 | 45-50 | 50-60 | 60-70 | 70-80 | 80-100 |
| Weight (kg) | 265 | 295 | 350 | 360 | 565 | 580 |
