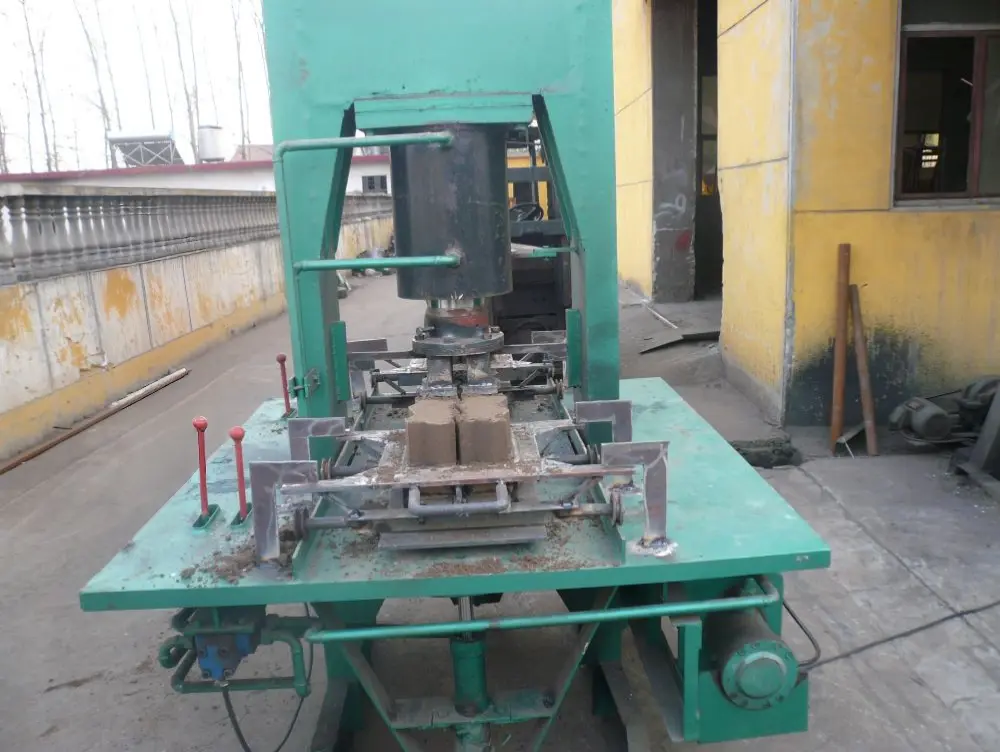

QT-200 paver brick hydraulic press machine

It’s a special paver brick hydraulic press machine which is double column type steel structure ,the maximal pressure is 200T, which can make good bricks for slope protection, kerbstone and lattice wall bricks, it can make as big as 500× 500×150mm bricks.

QT-200 paver brick hydraulic press machine for High-Strength Paving Blocks

A hydraulic paver block machine is specially designed to manufacture high-density paving blocks with excellent strength and dimensional accuracy. The QT-200 adopts advanced hydraulic pressing technology to produce interlocking pavers, sidewalk bricks, square pavers, and other concrete paving products with smooth surfaces and consistent quality. High pressing force ensures low water absorption and improved durability for long-term outdoor applications.

Features:

1.Programmable controlled,mechinical,electrical and hydraulic integration.

2.Hydraulic pressure system.

3.Noiseless,high pressure,non-pallet.

4.High production efficiency,low labor intensity.

5.Green,Energy-saving and sustainable

6.Applied to produce varies sizes and types of concrete blocks and bricks by replacing molds .

Specification:

Dimension	1650×1440×2150mm
Pressure	200T
Weight	1700kg
Rated Voltage	220/380V,50/60hz ,3 phase
Power	11KW
Workers	3 – 5

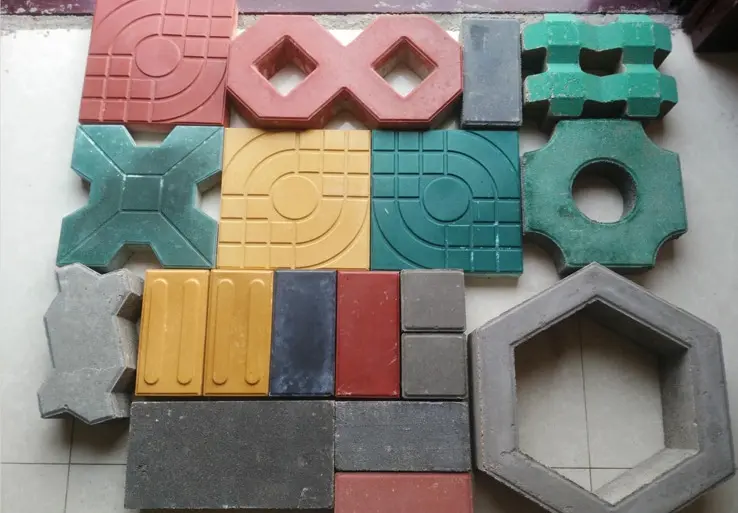

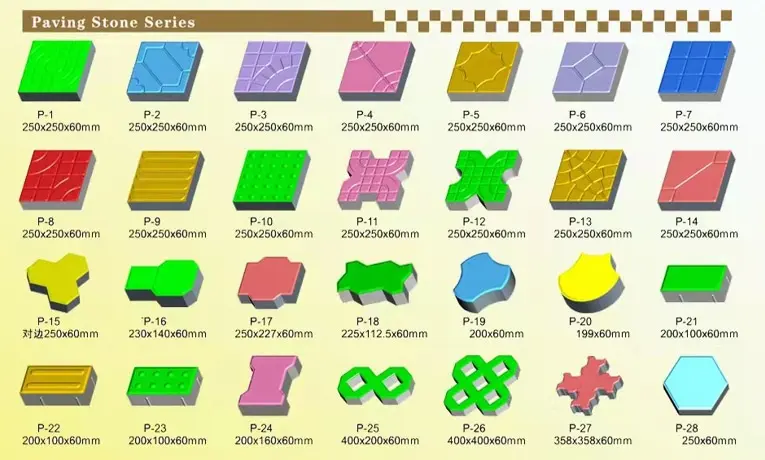

Paving brick samples :

Finished paving brick display:
