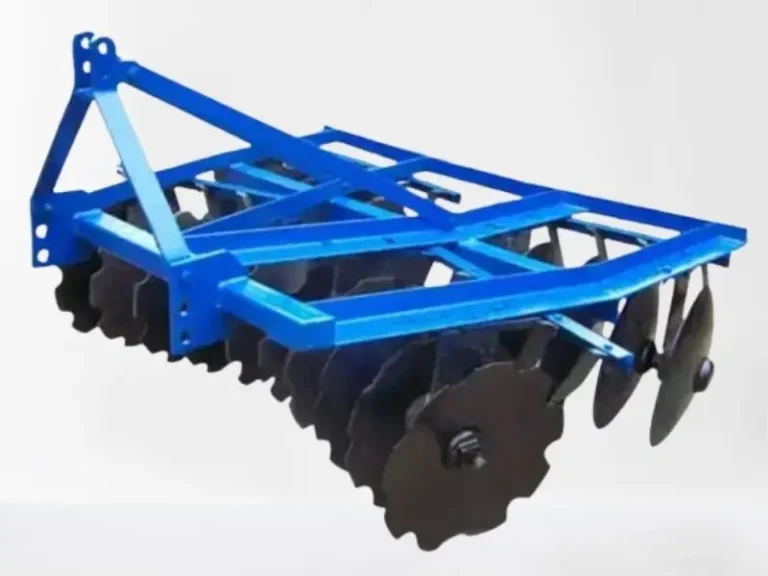

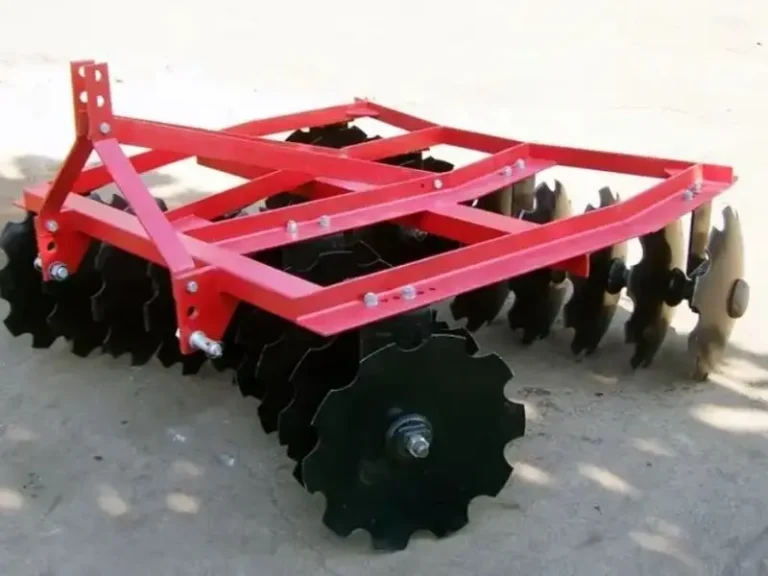

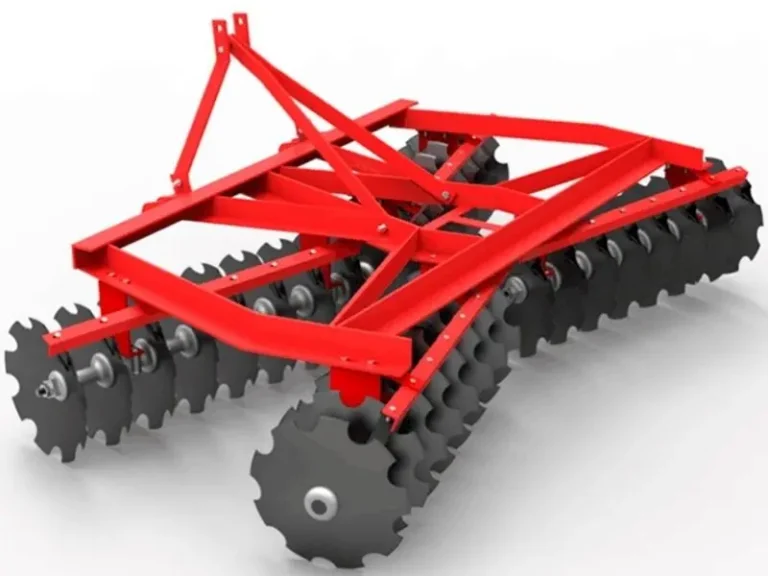

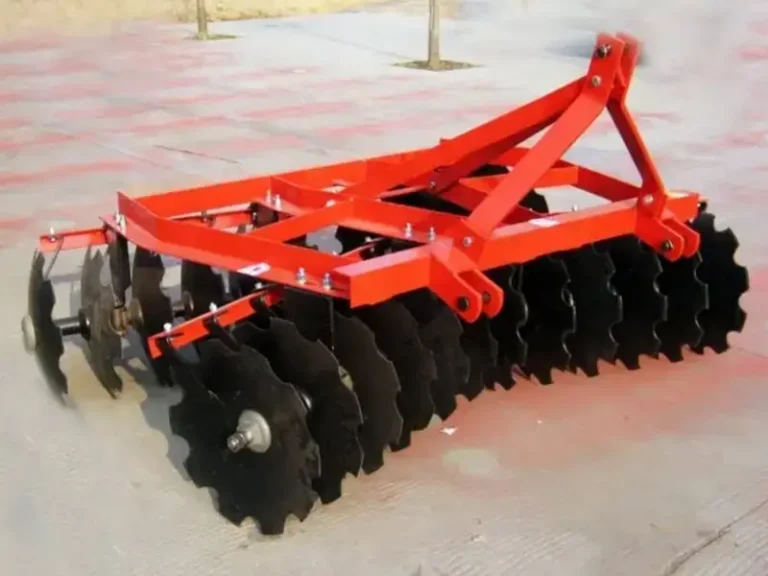

1BQDX light duty disc harrow mainly applicable for breaking up the clods of farmland and light soil after furrow and loosening soil by disc plough,and mixing soil and fertilizer beforesowing.With reasonable structure.strong ability to rake.durable.easy to use and maintain.etc.
Techincal data :
| Model | Number of discs | Size of disc (mm) | Working width (mm) | Working depth (mm) | Weight (Kg) | Matched power (HP) |
| 1BQDX-1.25 | 16 | 460X4 | 1250 | 50-150 | 301 | 35-40 |
| 1BQDX-1.6 | 20 | 460/510X4 | 1600 | 50-150 | 364-380 | 44-50 |
| 1BQDX-1.95 | 24 | 460/510X4 | 1950 | 50-150 | 407-430 | 50-60 |
| 1BQDX-2.3 | 28 | 460/510X4 | 2300 | 50-150 | 459-487 | 60-75 |
| 1BQDX -2.65 | 32 | 460/510X4 | 2650 | 50-150 | 487-519 | 75-85 |
| 1BQDX-3.0 | 36 | 460/510X4 | 3000 | 50-150 | 530-600 | 85-100 |
