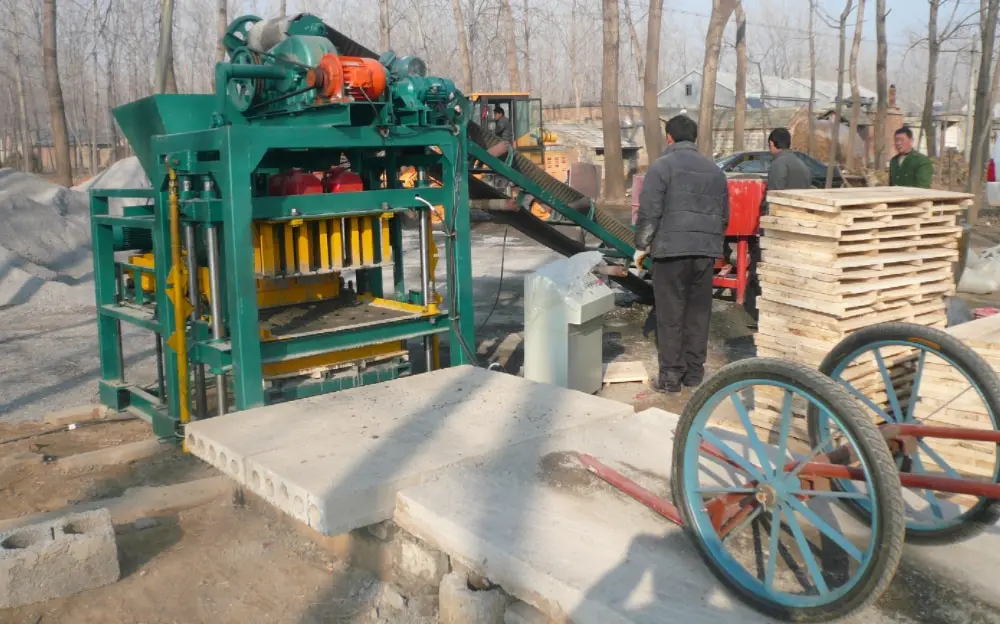

QT4-28 cement block making machine |Semi Automatic Block Machine
The QT4-28 Semi Automatic Block Machine requires only a small workforce while delivering reliable output and low operating costs. It can be integrated with a concrete mixer, batching machine, and belt conveyor to create a complete block production line. With its simple operation, easy maintenance, and dependable performance, this machine is widely used by small and medium-sized block factories around the world.
Features:
- Stable performance. vertical vibration and converter brake .the shock on machine can be eliminated .
- Higher product density. There are double vibrators on the beam of the press head, which can press from the bottom and top with strong vibrations. blocks can be piled up to 4-5 layers.
- Less error. The quality tolerance of the finished product is 0.5mm, with hollow percentage over 40%.
- Multifunction in one machine. With different molds, it can be used for producing the cement blocks with different shapes and sizes by this cement block making machine .
Specification:
| Main Machine | 400 |
| Cycle | 30S |
| Power | 15kw |
| Weight | 3T |
| Pallet size | 850×450×25MM |
| Dimension | 2580×1950×2200MM |
Production capacity :
| brick type | image | size | pcs/8hours |

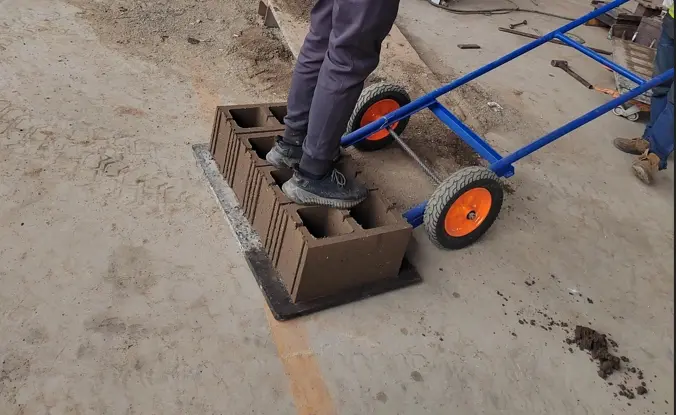

| Hollow Bricks |  | 390X190X190mm | 4800 |
| Hollow Bricks |  | 240X180X90mm | 14000 |
| solid bricks |  | 240X115X53mm | 33000 |
