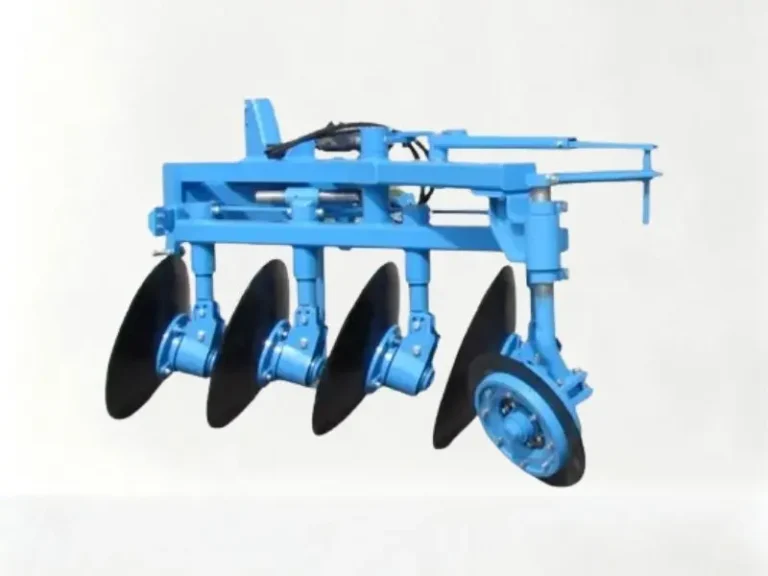

New Design Reversible Disc Plow for Tractor: 660 mm & 710 mm Discs

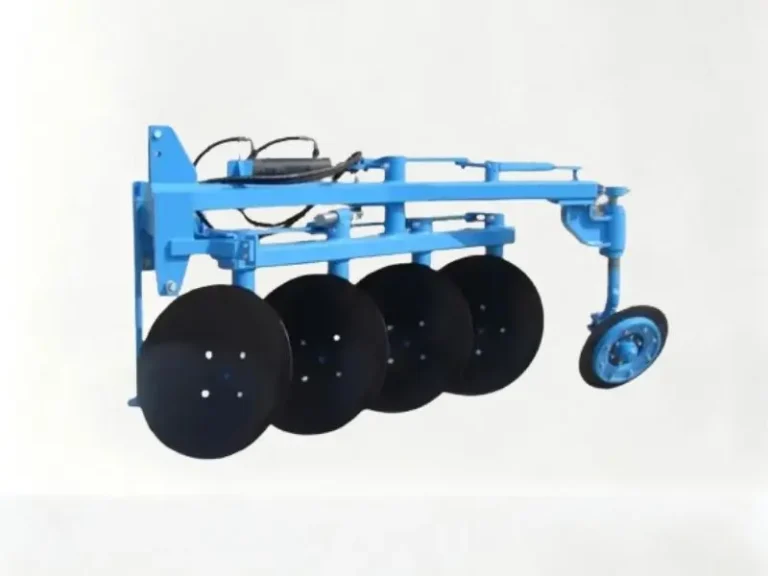

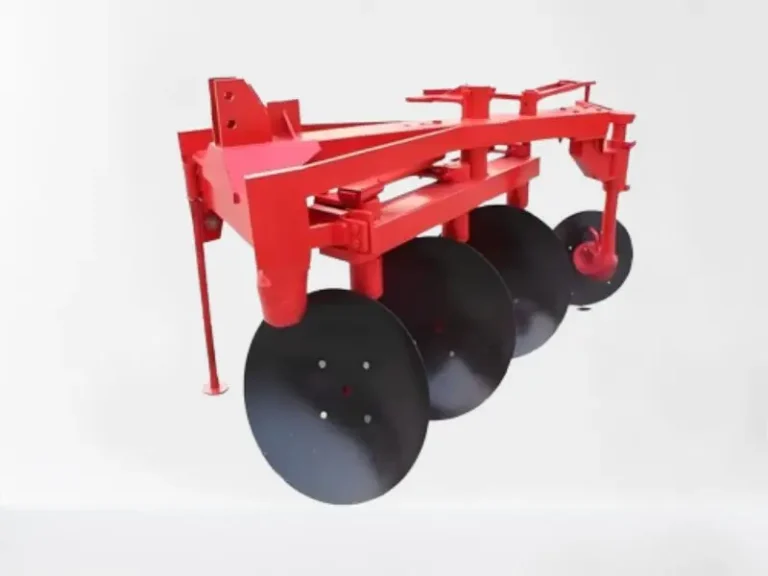

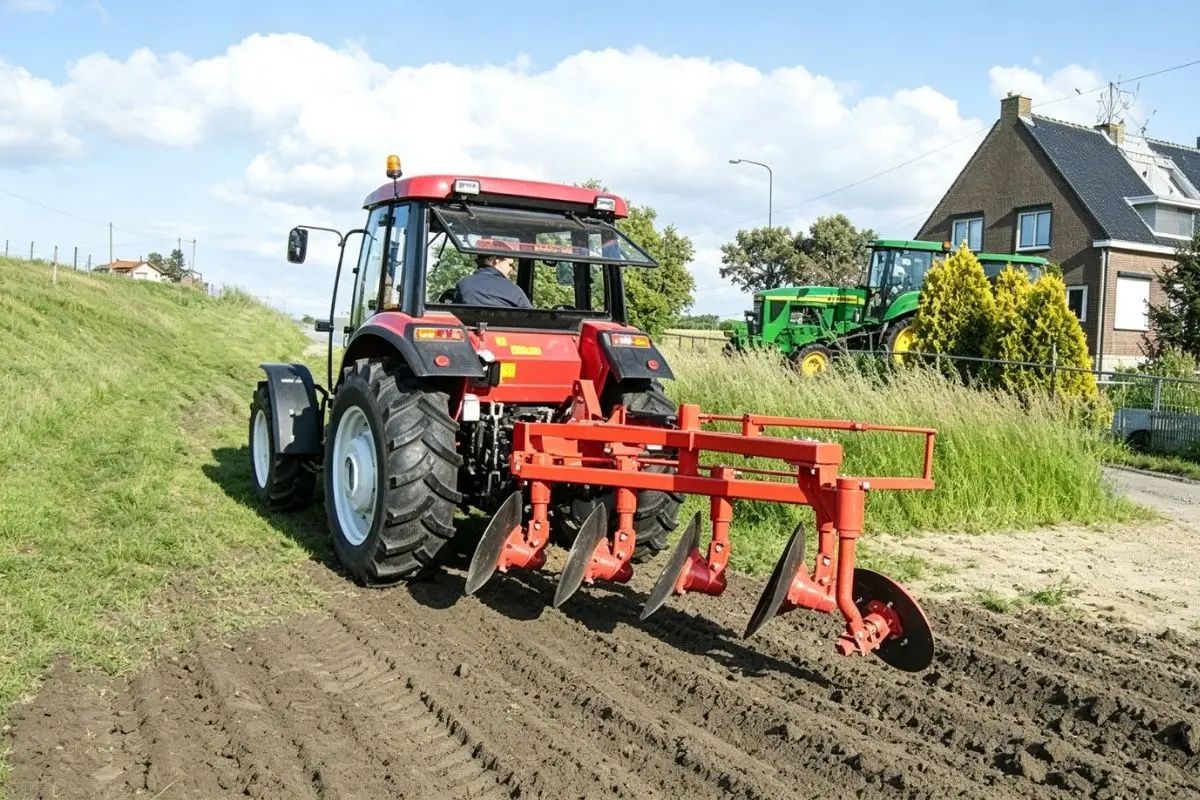

The 1LYS reversible disc plow is a tractor-mounted plough for primary tillage. It hangs on the tractor’s three-point linkage, so it turns inside the headland of a small block. At every headland a hydraulic cylinder swings the disc gang over, and the next pass throws the soil the other way.

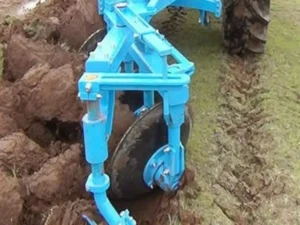

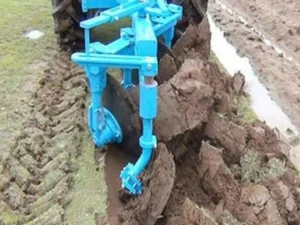

That single movement is what separates a two-way disc plough from a one-way machine: the plough works in both directions, the furrow closes behind it, and the block stays level instead of developing a dead furrow down the middle ,specified for Peruvian tillage conditions.
A new-design frame: the discs and the cylinder sit on one welded beam

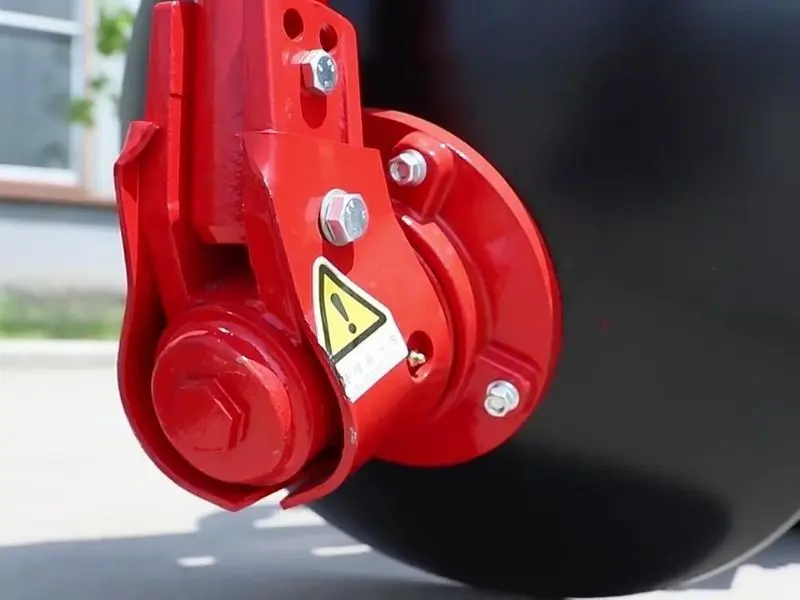

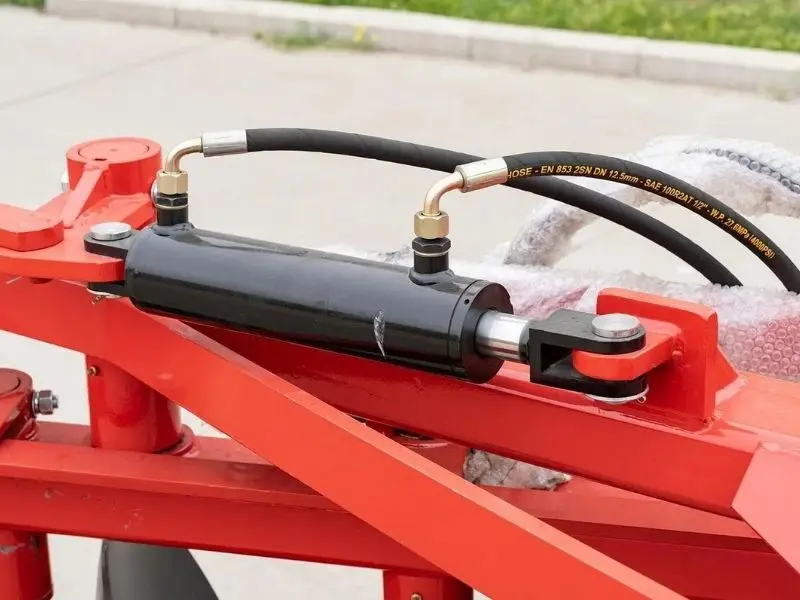

In this new-design version the disc gang, the hub assemblies and the hydraulic reversal cylinder are carried on a single welded box-section steel frame. The load from the discs goes straight into the main beam — there is no long overhung bracket on the working end of the plough. A parking stand is fitted at the front so the machine can be set down and stored upright ,
Specification:
| Model | Number of discs | Size of disc (mm) | Working width(mm) | Weight(kg) | Working depth(mm) | Matched tractor (hp) |
| 1LYS-325 | 3 | 660-710 | 750-900 | 626-650 | 250-300 | 75-90 |
| 1LYS-425 | 4 | 1000-1200 | 758-790 | 90-100 | ||
| 1LYS-525 | 5 | 1250-1500 | 1050-1100 | 100-120 | ||
| 1LYS-625 | 6 | 1500-1800 | 1300-1350 | 120-130 | ||
| 1LYS-725 | 7 | 1750-2100 | 1450-1520 | 150-180 | ||
| 1LYS-825 | 8 | 2000-2400 | 1600-1680 | 180-210 |
Choosing your machine

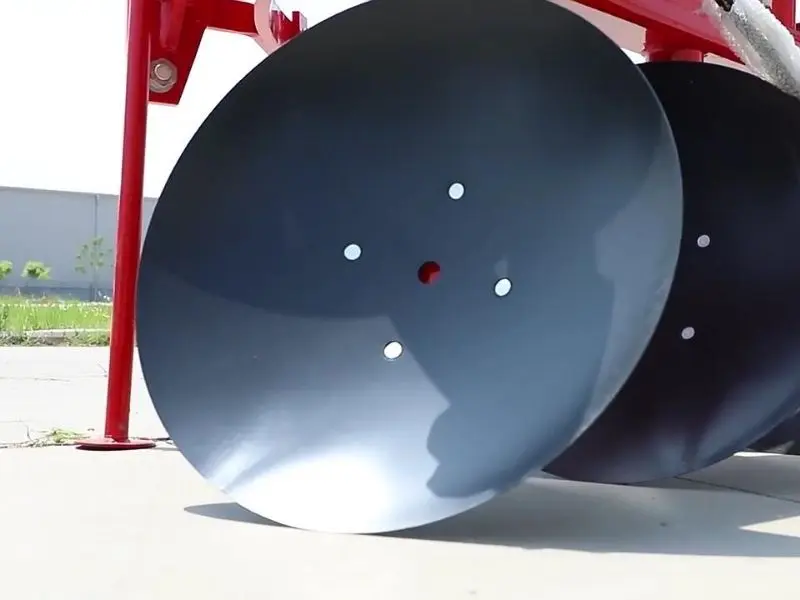

Send us your tractor model and horsepower, your ground type, the size of your blocks, and whether you want 660 mm or 710 mm discs. We will confirm the working width and matched power for your tractor, and quote FOB or CIF Callao with packing and lead time.
