1LYD disc plough

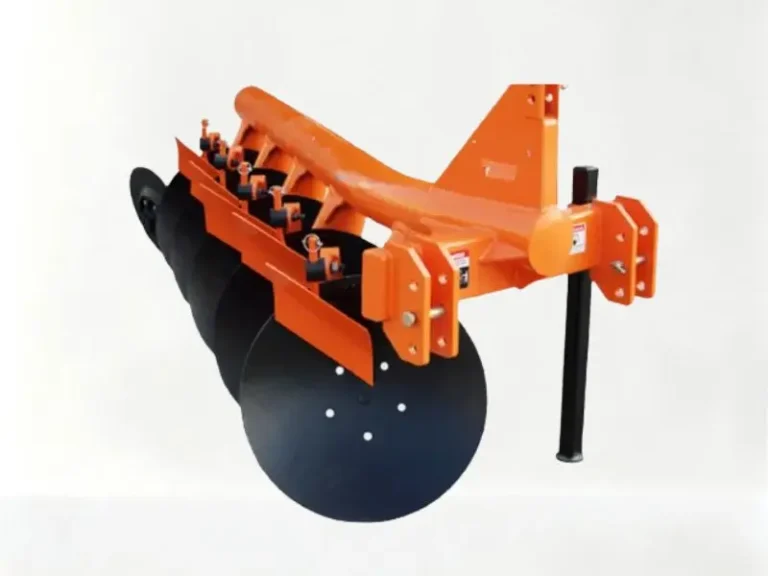

Turkish-type mounted disc plough for tractors

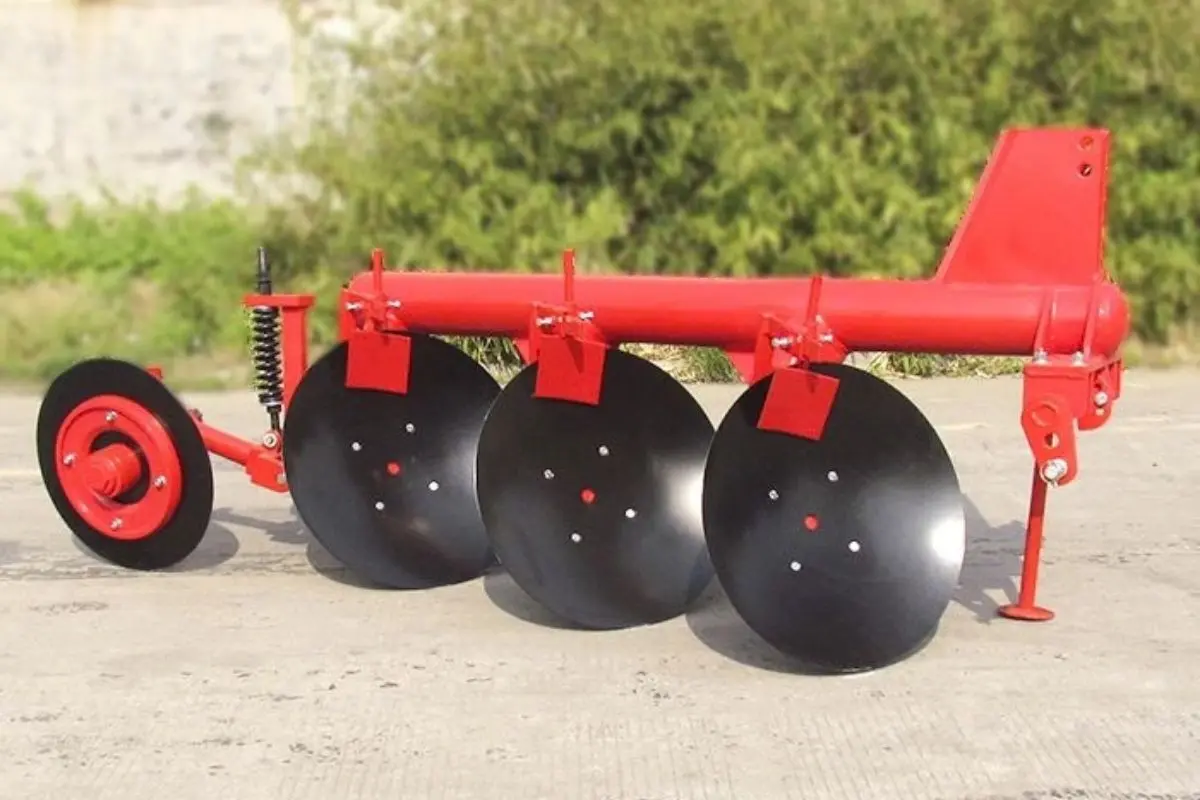

1LYD disc plough

A Turkish type disc plough for tractors , single-beam , 660 mm (26 in) disc blades are carried on individual standards, each with a scraper above the disc, and the three-point hitch mast has multiple bolt positions for levelling.

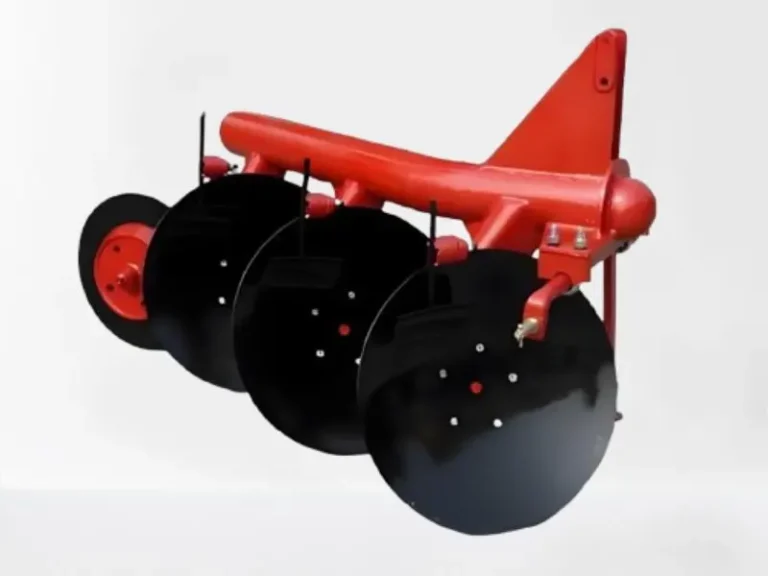

Turkish Type Disc Plough with One-Piece Round-Tube Beam and 660 mm Discs

A disc plough is normally the first implement through the ground, used for primary tillage in stubble, fallow and reclaimed land, and in conditions where a mouldboard plough is not the practical choice.

This is a Turkish type disc plough that mounts on the three-point linkage of a tractor and works as a primary tillage implement. Its frame is a single round-tube beam, formed in one piece, with 660 mm (26 in) disc blades carried under it on individual standards. The main beam is a round steel tube produced as one formed piece, so the frame has no joint along its length.

Specification:

Model	1LYD-230	1LYD-330	1LYD-430	1LYD-530
NO. of disc	2	3	4	5
disc diameter	660	660	660	660
Working width(mm)	500-600	750-900	1000-1200	1250-1500
Working depth(mm)	250	250	250	250
Weight(kg)	300	390	490	574
Matched tractor (hp)	50-60	75-90	90-100	100-120

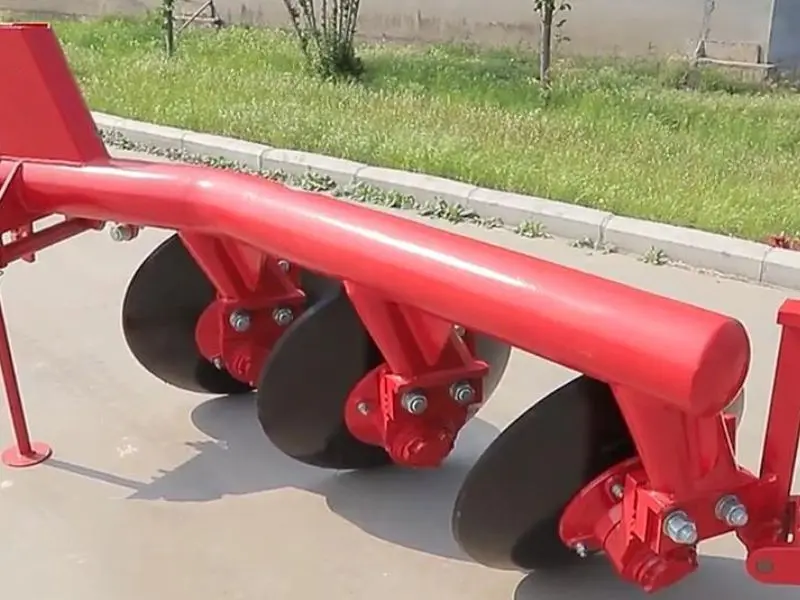

One-piece formed round-tube main beam

The single round-tube beam is formed as one piece rather than welded up from separate sections, so the load path from the hitch mast to the outer disc standard is continuous and joint-free.

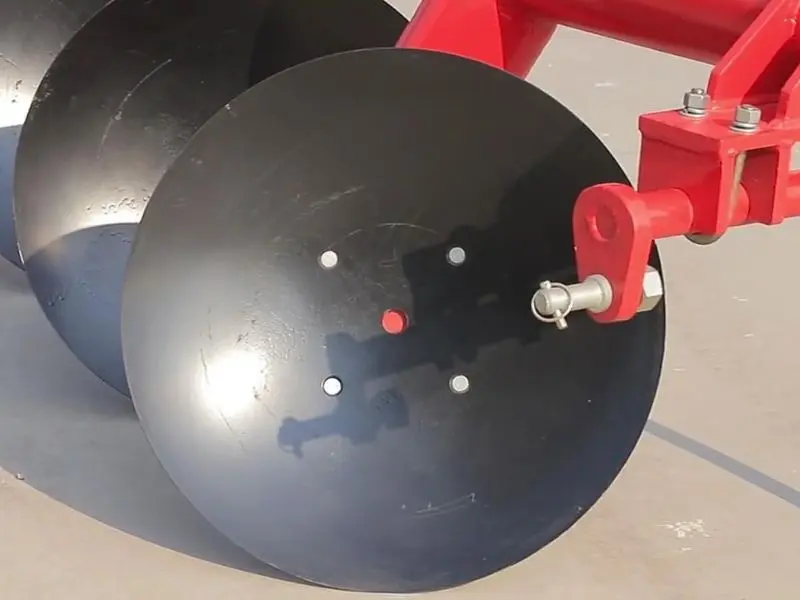

660 mm (26 in) disc blades on individual standards

Each disc runs on its own standard under the beam, with a scraper above the disc to shed soil and crop residue, and blades are bolted to their hubs through a ring of bolts so one blade can be replaced on its own.

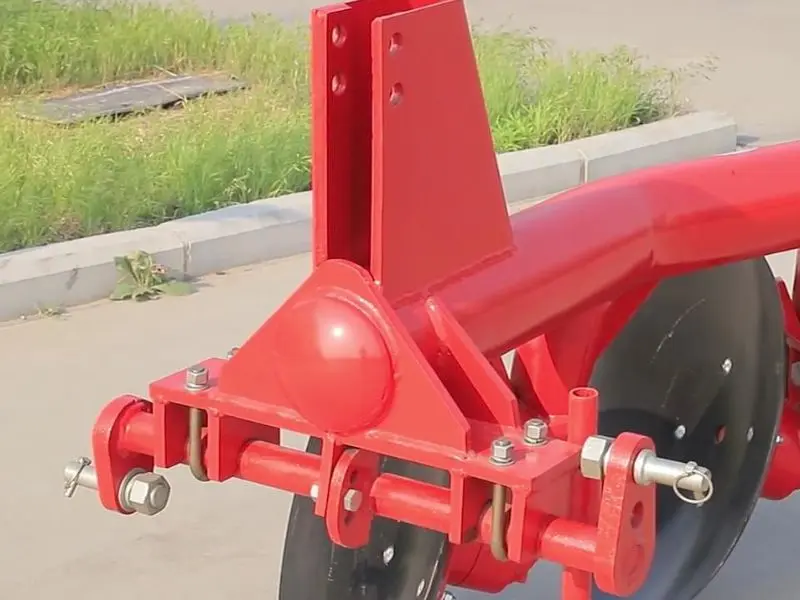

Adjustable three-point hitch mast with parking leg

The mast is drilled with multiple bolt positions for levelling adjustment, and the parking leg at the end of the beam carries the plough when it stands unhitched.

Frequently Asked Questions

What maintenance does a disc plow require?

Regularly check disc blades, bearings, fasteners, frame components, and lubrication points, and replace worn parts when necessary.

Can the disc plow be customized?

Yes. Working width, disc diameter, disc number, frame configuration, and other specifications can be adjusted according to customer requirements.

What sizes of disc plows are available?

Disc plows are available in different working widths, disc numbers, disc diameters, and configurations to suit different tractors and farming conditions.

How do I choose the right disc plow for my tractor?

Selection depends mainly on tractor horsepower, working width, soil conditions, required working depth, and field size.

What is a disc plow used for?

A disc plow is mainly used for primary tillage, soil breaking, turning, and incorporating crop residues before planting.
