1BZD folding heavy duty disc harrow

1BZD folding heavy duty disc harrow

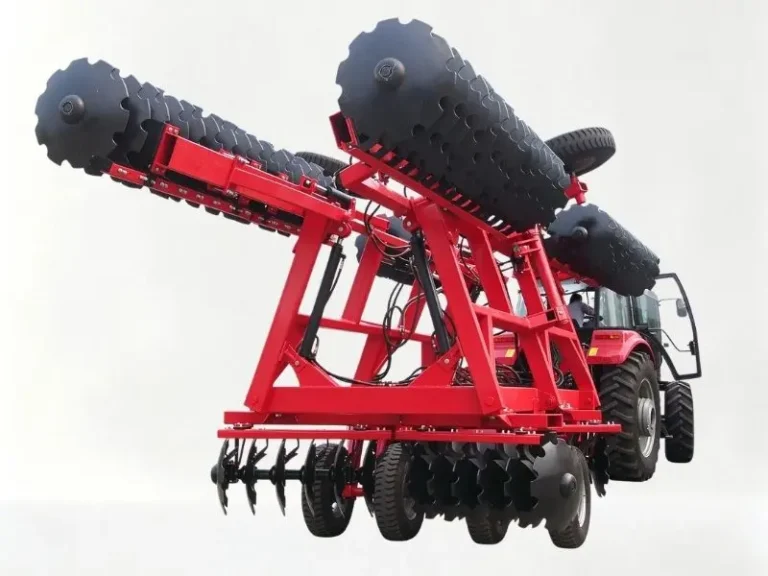

This heavy duty trailed hydraulic folding disc harrow is designed for large-scale field operations with high-horsepower tractors. The hydraulic folding design makes the wide implement more convenient to transport between fields.

1BZD 660mm Heavy Duty Trailed Hydraulic Folding Disc Harrow

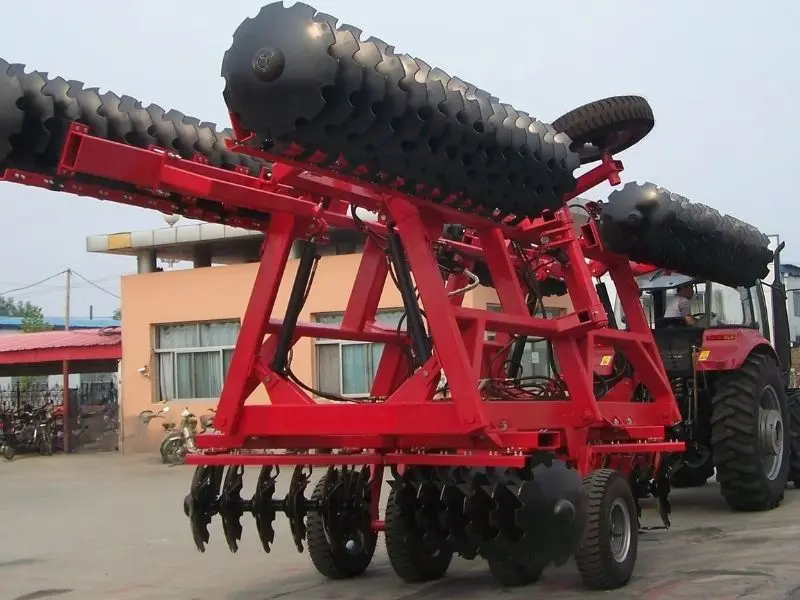

1BZD Heavy Duty Trailed Hydraulic Folding Disc Harrow is designed for large-scale agricultural land preparation. It combines a trailed frame, hydraulic folding wings, and large-diameter disc blades for operation with suitable high-horsepower tractors.

The 660mm disc blades work through the soil and crop residue to break up clods, mix surface residues into the soil, and prepare fields for subsequent cultivation. It is suitable for farms and agricultural contractors handling large areas of land.

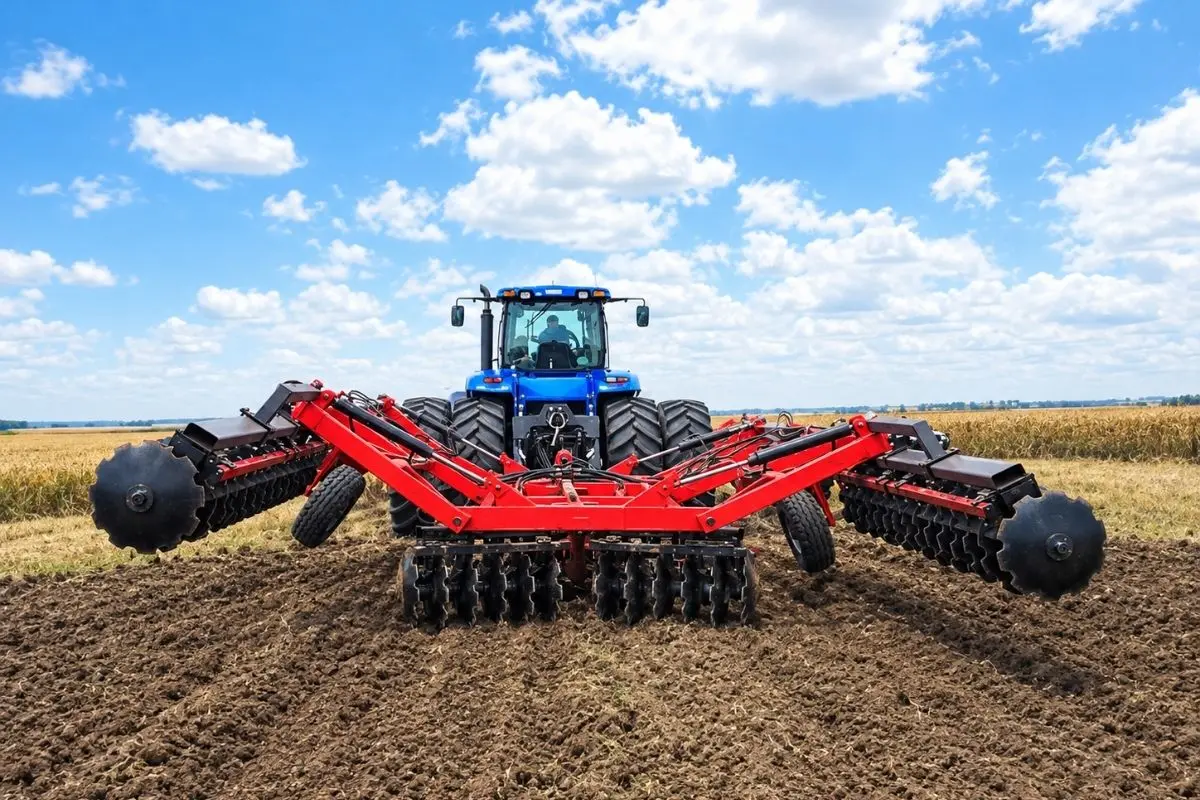

Hydraulic Folding Design

The side wings fold hydraulically for transport and unfold to provide a wide working configuration in the field. This design helps manage the overall width of the implement when moving between fields. Actual transport dimensions and hydraulic requirements should be confirmed for the selected model.

Applications

This heavy duty Hydraulic Folding Disc Harrow is suitable for:

Breaking up soil clods after plowing
Cutting and incorporating crop residues
Preparing large fields for subsequent cultivation
General soil preparation on large farms

Specification:

Model	1BZD-6.5	1BZD-7.5	1BZD-8.5	1BZD-9.0	1BZD-9.5
Number of disc	64	72	80	84	88
Diameter of disc(mm)	660
Working width(mm)	6500	7500	8500	9000	9500
Working depth(mm)	180-220
Weight (kg)	7000	7200	7500	7650	8300
Tractor(hp)	300	350	400	400	500

Tractor Matching

The machine is intended for high-horsepower tractors. The required tractor power depends on the working width, soil conditions, working depth, and field conditions. Please provide your tractor horsepower and required working width when requesting a quotation so that the appropriate configuration can be recommended.

Export Supply

We supply agricultural machinery to customers in multiple countries and can discuss product configurations according to local farming conditions and tractor requirements. Contact us for model specifications, working width, tractor power recommendations, and a quotation.

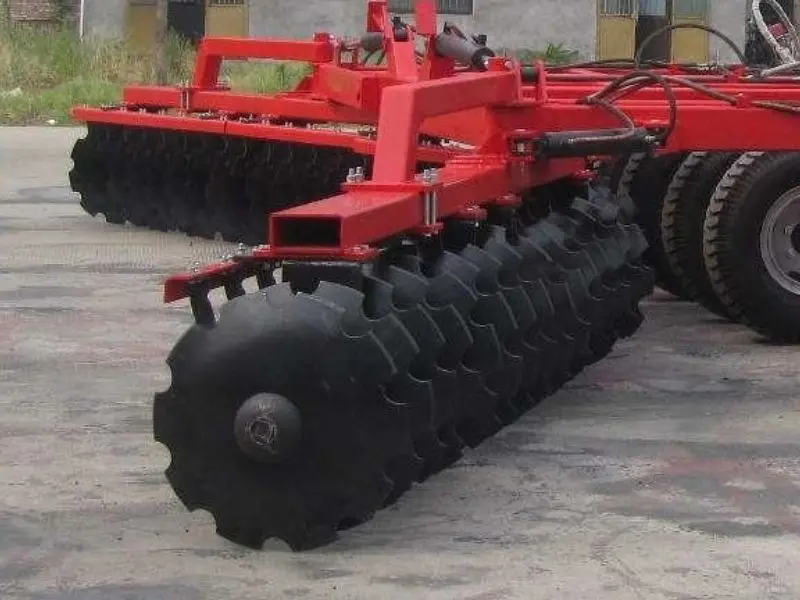

660mm Heavy Duty Disc Blades

The 660mm disc blades cut through soil and crop residues to break up clods and prepare the field for subsequent farming operations. The heavy-duty disc arrangement is suited to demanding field conditions.

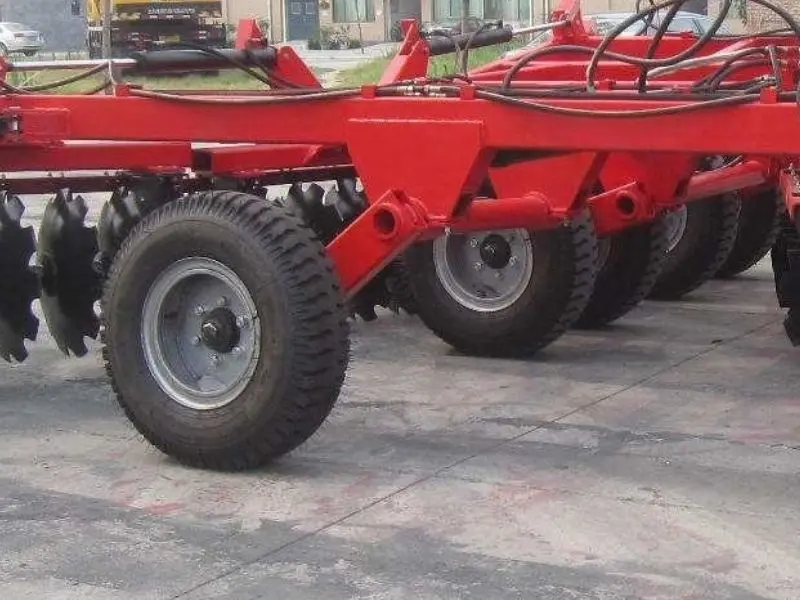

agricultural field tyres

Rides on two heavy-duty agricultural implement tyres ,they carry the whole frame along headlands and farm tracks, so you can pull the machine from one plot to the next without loading it on a trailer.

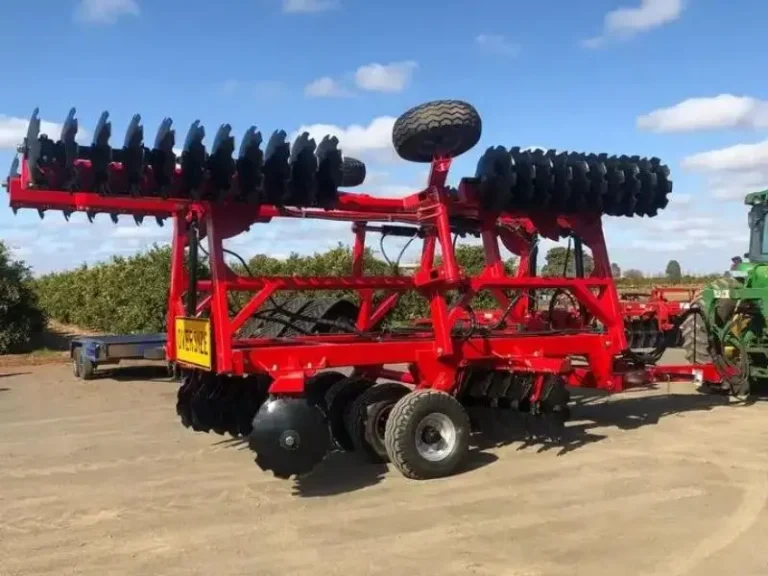

Hydraulic Folding Wings

The hydraulic folding structure allows the side sections of the disc harrow to fold for transport and unfold for field work. It is designed for a wide working implement used across large agricultural areas.

Do you supply spare parts for disc harrows?

Spare parts can be supplied for disc harrow maintenance and replacement, including discs, bearings, gang components, scrapers, bolts, and other wear parts, depending on the model.

How can I get a quotation for a disc harrow?

Please send us the required working width, tractor horsepower, preferred disc diameter, quantity, destination country, and any specific requirements. We can then recommend a suitable disc harrow configuration and provide a quotation.

Can you provide disc harrows for different countries and field conditions?

Yes. Disc harrow configurations can be selected according to tractor specifications, soil conditions, working width, disc diameter, and local operating requirements. Customers can provide their field and tractor information for model selection.

What applications are disc harrows suitable for?

Disc harrows are commonly used for seedbed preparation, soil leveling, residue incorporation, weed control, soil mixing, and secondary tillage.

Can a disc harrow be used for weed control?

Yes. Disc harrows can cut and bury weeds while mixing crop residues into the soil. Working depth and disc angle should be adjusted according to field conditions.

How deep can a disc harrow work?

Working depth depends on the disc diameter, disc angle, machine weight, soil conditions, tractor power, and field settings. The appropriate working depth should be selected according to the soil and tillage requirements.

What working width options are available for disc harrows?

Working width depends on the specific model and number of discs. Different configurations are available to match tractors of different horsepower ranges and field sizes.

Can disc harrows be customized for different tractors?

Yes. Disc harrows can be configured according to tractor horsepower, working width, disc diameter, disc spacing, frame design, and other operating requirements.

What is a sealed gang bearing on a disc harrow?

A sealed gang bearing supports smooth disc rotation while helping protect the bearing assembly from dust and moisture, reducing maintenance requirements during field operations.

What is an offset disc harrow?

An offset disc harrow uses an offset disc arrangement that allows effective soil cutting, mixing, residue incorporation, and weed control. It is suitable for various field preparation applications.
