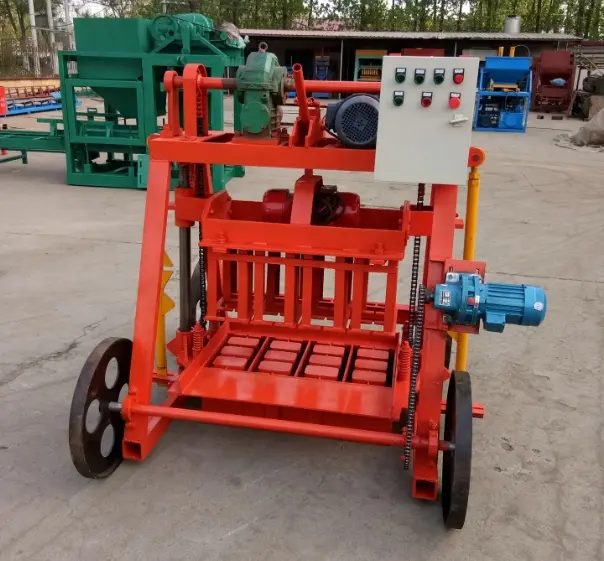

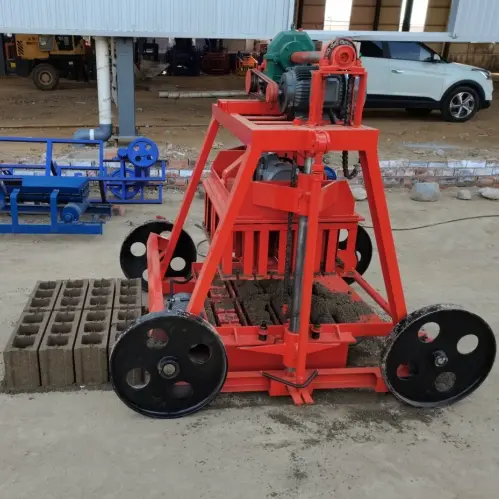

QMR4-45 Movable concrete block making machine

Movable concrete block making machine is easy in operating and durable in using , it can be used on 300-500 square meters area ,no need carriage plate , used for small block factory with 2-3 workers .

QMR4-45 Movable concrete block making machine

Main Features:

1. Movable block making machine is also called egg laying block making machine. It is convenient no need pallet, only need flat floor. It is the best choice of family investment.

2. Mobile block making machine is durable and productive, save in labor, only 2 person, one day

can produce 2560 blocks(400*200*200), it is high profit.

3. Bricks with high density, clearn and neat, easy to sell.

4. Easy to operation and economic,low error rate and easy tomaintenance.

Specification :

Technical Parameter(Block Making Machine)	Detailed Data
Overall Dimension	1600×1500×1200(mm)
Rated Pressure	16MPa
Main Vibration Form	Platform Vibration
Cycle Time	45 seconds
Vibration	35KN
Vibrating Frequency	2800-4500 rolls/minute
Motors Power	6.65KW
Pallet Size	No Pallet
Weight	1200kg

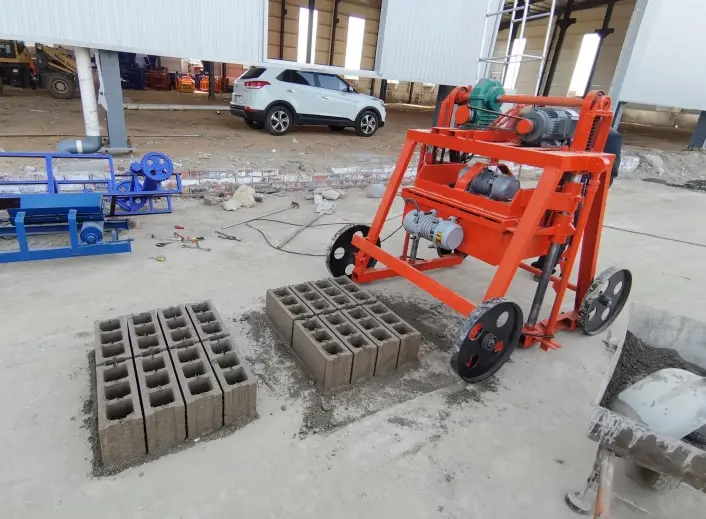

qmr4-45 brick machine

Production Capacity :

brick type	Size	pcs/mold	pcs/8hrs
hollow block	400200200mm	4pcs	2560pcs
porous block	24011590mm	9pcs	5760pcs
solid block	24011553mm	21pcs	13440pcs
