3WFX air blast sprayer

3WFX air blast sprayer

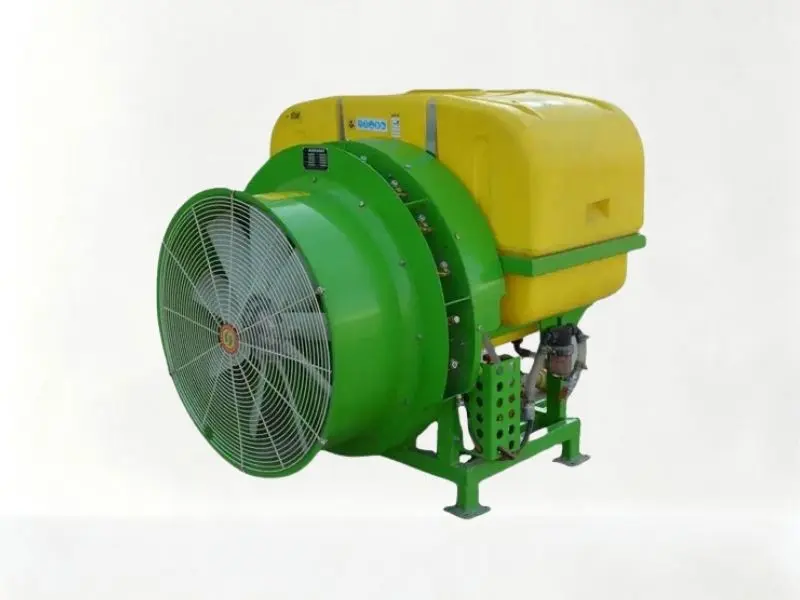

Tractor mounted air blast sprayer for orchards and gardens, with a 300L, 400L or 500L high-density PE tank and your choice of plunger or diaphragm pump. A large fan drives a wide, even mist into the canopy.

Tractor Mounted Air Blast Sprayer – 300L / 400L / 500L Orchard & Garden Mist Blower

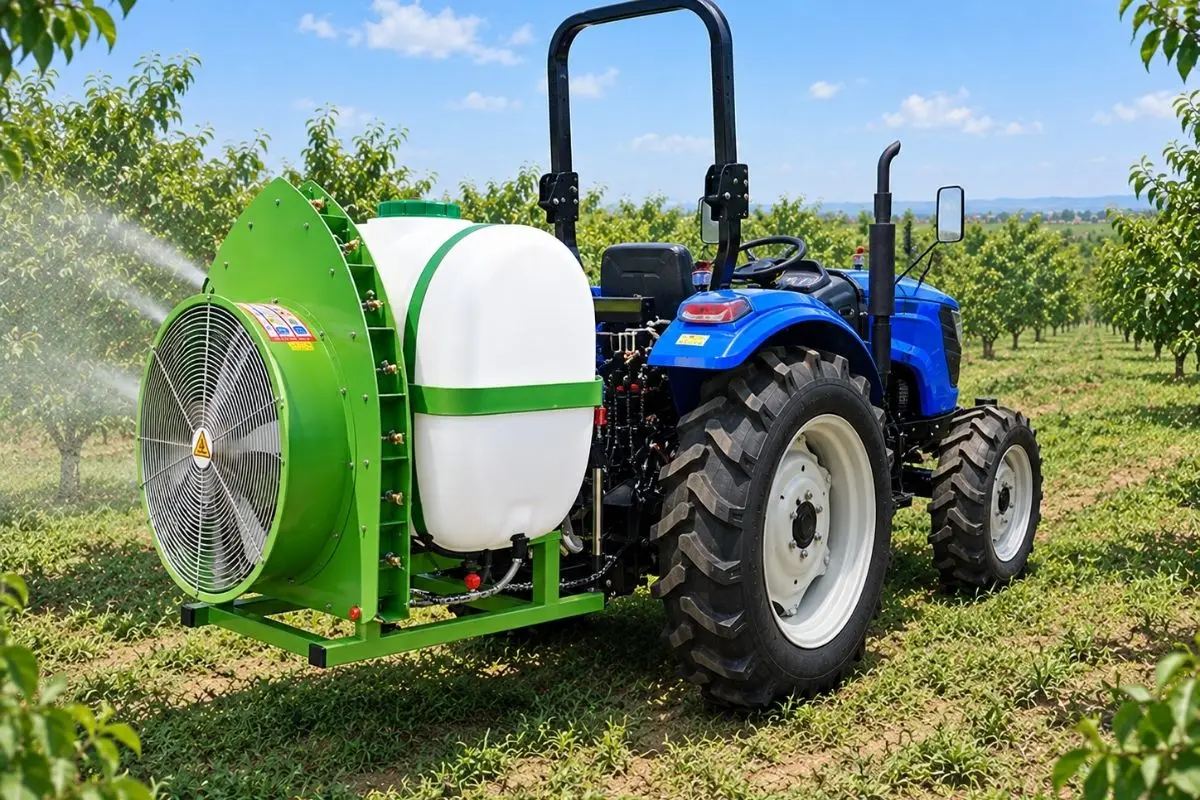

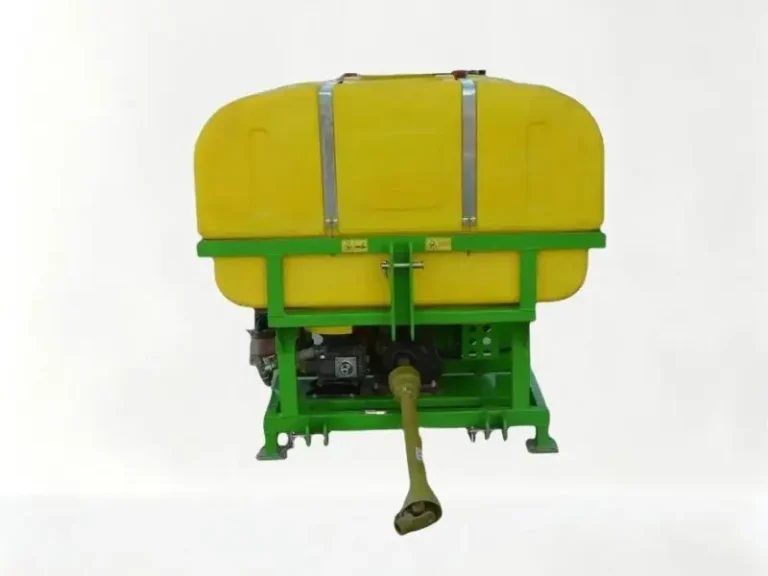

The tractor mounted air blast sprayer is built for growers who need to cover tree and bush crops quickly and evenly with the tractor they already own. It hangs on the three-point linkage and takes its drive from the PTO.

Three tank sizes are available:

This tractor mounted air blast sprayer has several tank capacity 300L, 400L and 500L for choice. HDPE does not rust and resists the fertilizers, pesticides and acidic mixes that shorten the life of a steel tank, and its flexible wall absorbs impact from rough ground and loading.

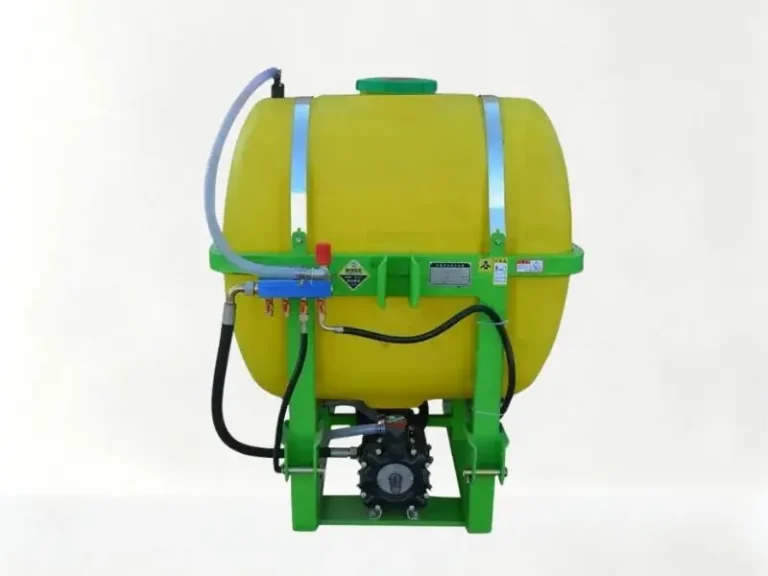

Pump choice is yours.

The plunger pump delivers the higher working pressure needed for long hose runs and tall canopies.
The diaphragm pump suits abrasive and suspended formulations and tolerates brief dry running, which is useful when moving between blocks.

Specification:

Model	3WFX-300	3WFX-400	3WFX-500	SX-500
Tank capacity(L)	300	400	500	500
Dimension(mm)	110011501350	110012001450	135012701350	119011501420
Horizontal range(M)	12	14	14	14
Working pressure	0.4-0.8mpa	0.4-0.8mpa	0.4-0.8mpa	0.4-0.8mpa
Pump	Plunger pump or diaphragm pump	diaphragm pump	diaphragm pump	Plunger pump
Matched Power(HP)	40	40	40	40
Rated Flow(L/min)	32-48/80-100	80-100	80-100	32-48

High-Density PE Tank: Corrosion Resistant

High-density polyethylene, molded as one seamless body with no welds or joints to crack. HDPE stands up to fertilizers, pesticides and acidic mixes that corrode steel tanks.

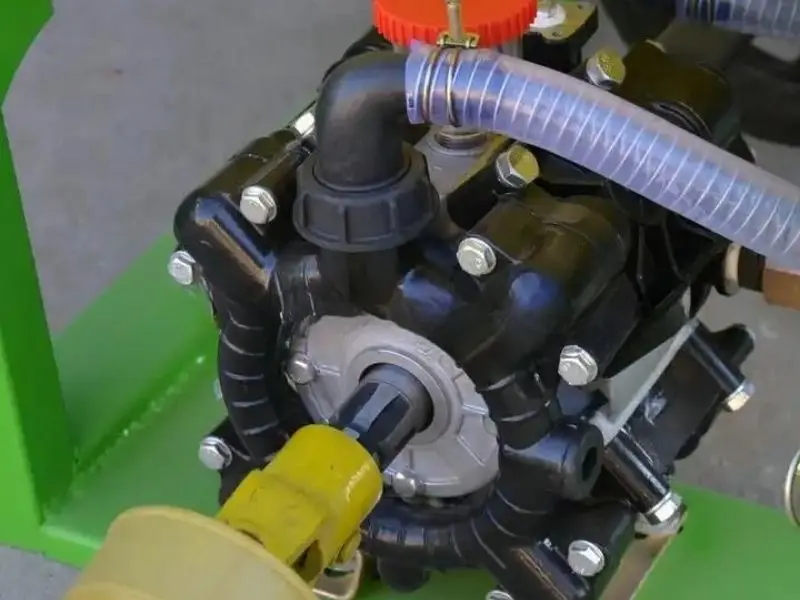

High-Pressure diaphragm pump

Composite multi-head diaphragm pump with brass fittings, clear inspection cap and reinforced high-pressure hose outlet, feeding spray to the boom nozzles.

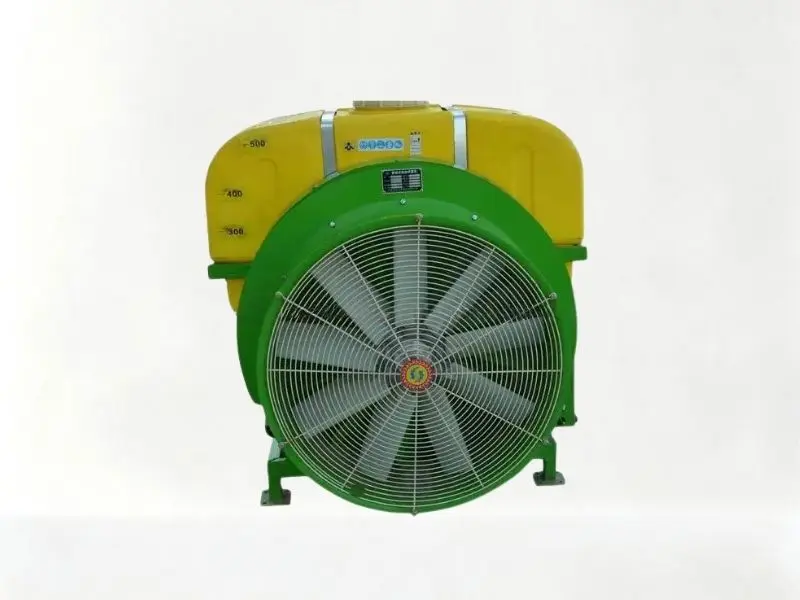

PTO-Driven Air-Blast Fan

Multi-blade axial fan in a powder-coated steel housing with a wire guard, driven by tractor PTO to carry fine spray deep into dense orchard canopies.

How should a tractor sprayer be maintained?

Clean the tank and spraying system after use, inspect nozzles and hoses, check the pump and filters, and store the machine properly to prevent corrosion and blockage.

Can the spraying system be customized?

Yes. Tank capacity, boom width, pump type, nozzle configuration, and other spraying components can be specified according to customer requirements.

What types of tractor sprayers are available?

Different tank capacities, boom widths, pumps, nozzles, and mounting configurations are available for different agricultural spraying applications.

How do I choose the right tractor sprayer?

Consider tank capacity, spraying width, tractor horsepower, pump capacity, crop type, field size, and required application rate.

What is a tractor sprayer used for?

A tractor sprayer is used for applying agricultural liquids such as pesticides, herbicides, fungicides, and liquid fertilizers to crops and fields.
